2-6
Chapter 2: Installation
98-144591-D

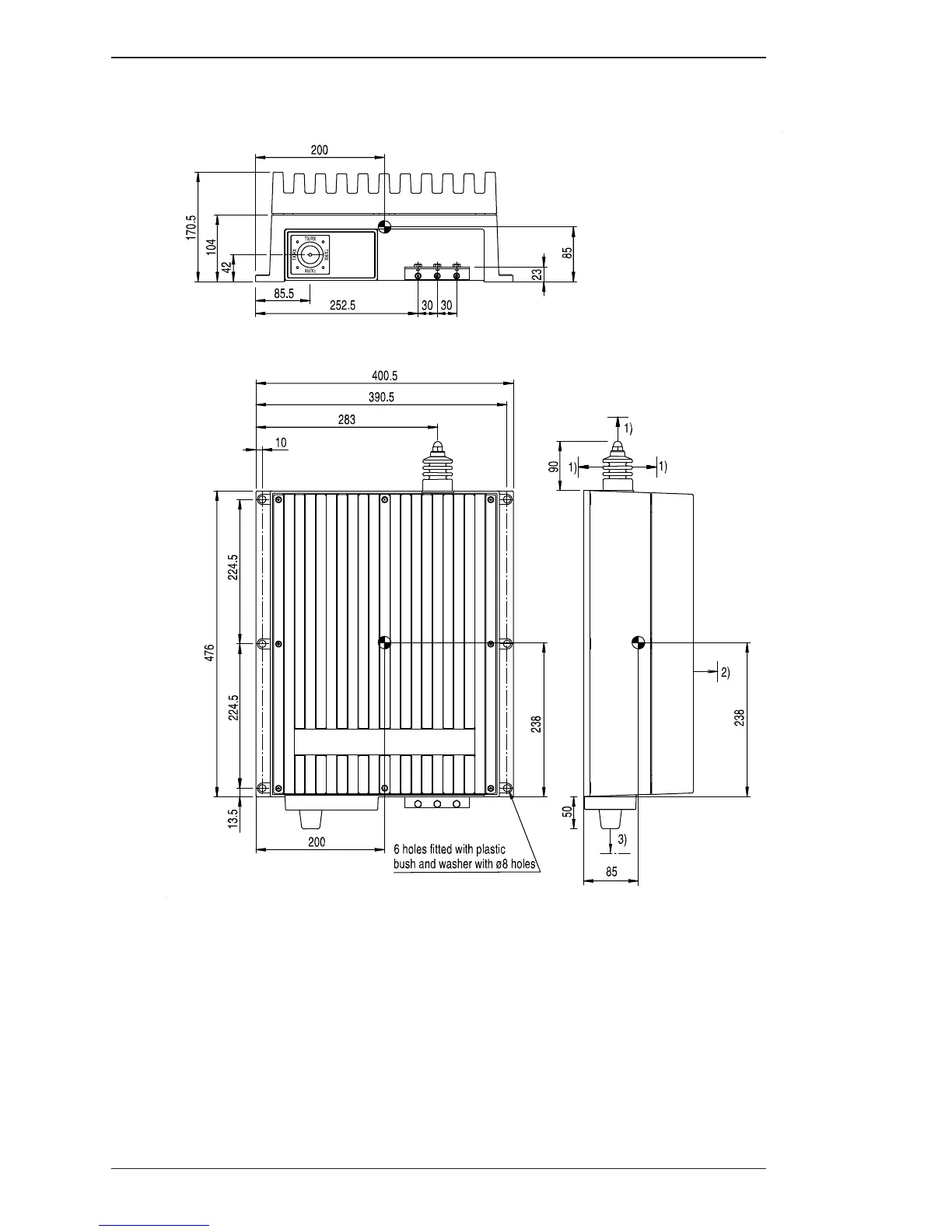

Mounting the Units
Antenna T
uning Unit 500 W
1) Distance to metal constructions: min. 150
2) Space f
or service access: min. 500
3) Space f
or cable and service access: min. 200
Dimensions are in mm
T
olerance: +/- 1 mm
Mounting hole: ø8
W
eight: 17 Kg
4-0-32426
21
23
Table of Contents
Default Chapter
7
Record of Revisions
7
Related Documents
8
Table of Contents
9
Chapter 1 General Information
11
Introduction
11
Technical Data
11
Antenna Tuner
12
Receiver Characteristics
13
Dimensions and Weight
15
Chapter 2 Installation
17
Description
17
Mounting the Units
17
Ground Connections
25
Antennas
29
DC Power Cabling
34
Interconnection of Units
35
Position and Time Information
41
Telex Operation
42
ID Programming
43
Setup Menu
44
Key Operation
45
Programming Telex ID
46
Confi Guration
48
Final Installation Check
51
Chapter 3 Technical Description
53
Control Unit
53
Transceiver Unit
53
Supply Filter Module 57-139985
53
Exciter Control Module (ECM) 60-139984
53
PA and Filters Module 60-122881
54
PA and Filters Module 60-123937 (FCC)
55
SMPS Module 60-122882 (150 W/250 W)
55
SMPS Module 60-126172 (500 W)
55
SMPS Module 60-126236 (500 W)
55
Antenna Tuning Unit
56
Power Control and Protection System
57
Chapter 4 Service
59
Preventive Maintenance
59
Calibrating the Master Oscillator
60
Cleaning the Air Fi Lter (500 W Transceiver Only)
63
System Test and Verifi Cation
63
Software Update
63
Chapter 5 Spare Part Exchange
65
Disassembling the Transceiver Unit (150 W/250 W)
66
Disassembling the Transceiver Unit (500 W)
66
Transceiver Unit Module Location
67
Module Overview
69
Required Service Tools
72
Accessory List
72
Glossary
73
