Chapter 5: Spare part exchange5-2 98-144591-D

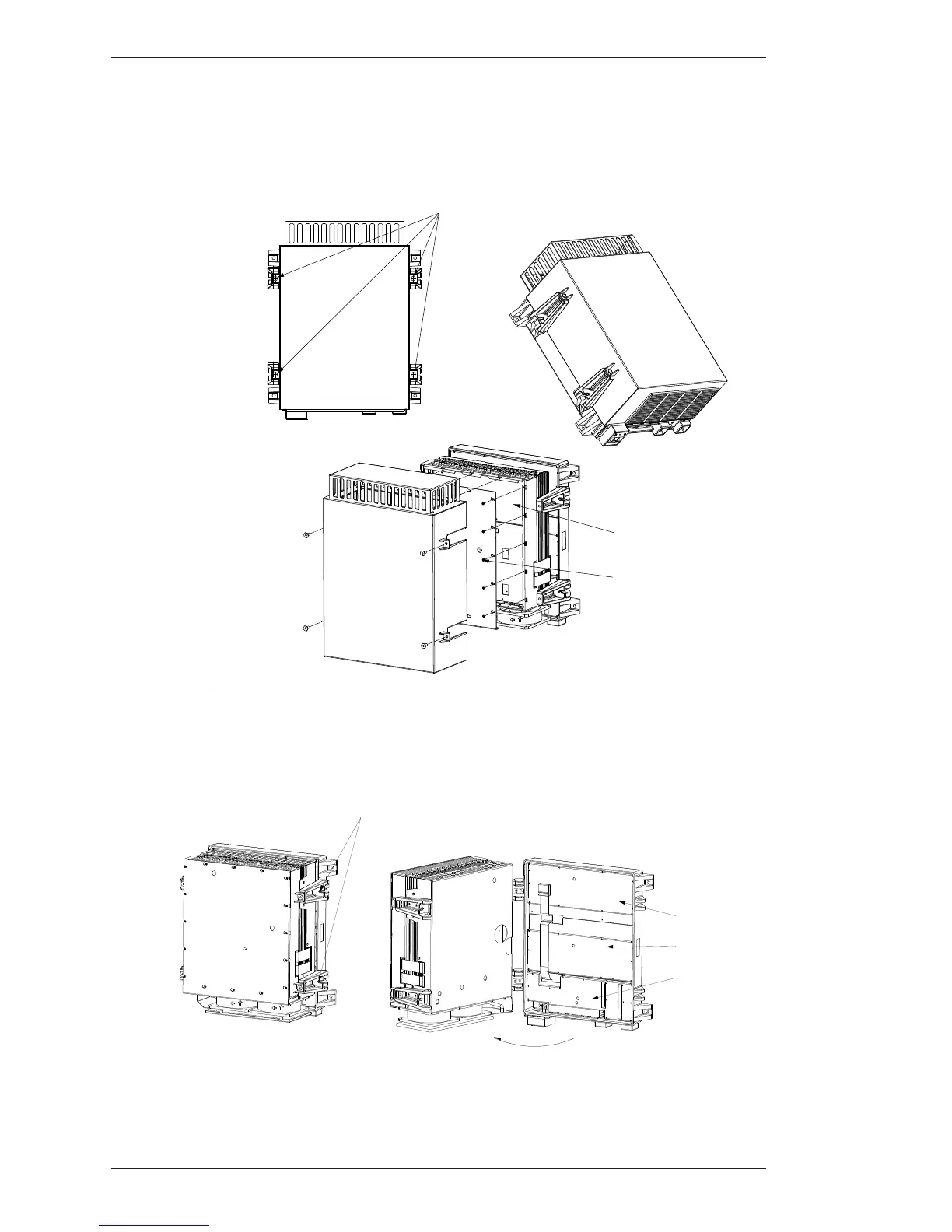

5.2 Disassembling the Transceiver Unit (500 W)
To remove the transceiver cover loosen the 4 screws (2 on each side) on the side of the cabinet and
pull the cover from the transceiver.
99-126728
Loosen 4 screws
M6x16
SMPS modules
Loosen 17 screws
M3x8
To open the transceiver loosen the 2 screews on the right hand side of the cabinet.
99-126886
SYNTHESIZER and
RX/EX SIGNAL
CONTROL/
Loosen 2 screws M6x30
DSC WR module
PATH module
INTERCON module
Required service tool:
hexagonal socket wrench,
bits 1/4", length min. 16 cm.
Disassembling the Transceiver Unit (500 W)
