2-1
Installation
Chapter 2: Installation
98-144591-D
Mounting the Units
Installation
2.1 Description
Correct installation of the equipment is important for maximum performance and reliability. Antennas
and ground connections must be installed with the greatest care using corrosion resistant materials.
Cable routing shall be made so that the cables are protected from physical damage. Sharp cable bends
especially on coaxial cables must be avoided and a suffi cient number of clips or straps should be used
to secure the cables.
2.2 Mounting the units
2.2.1 Mounting the Control Unit (CU)
One Control Unit can be connected to the Transceiver Unit using the cable supplied (CU-TU Bus). The CU
may be mounted up to 100 m from the Transceiver Unit using just a multicable 5 x 2 x 0.5 mm
2
screened.
The Control Unit may be tabletop or bulkhead mounted.

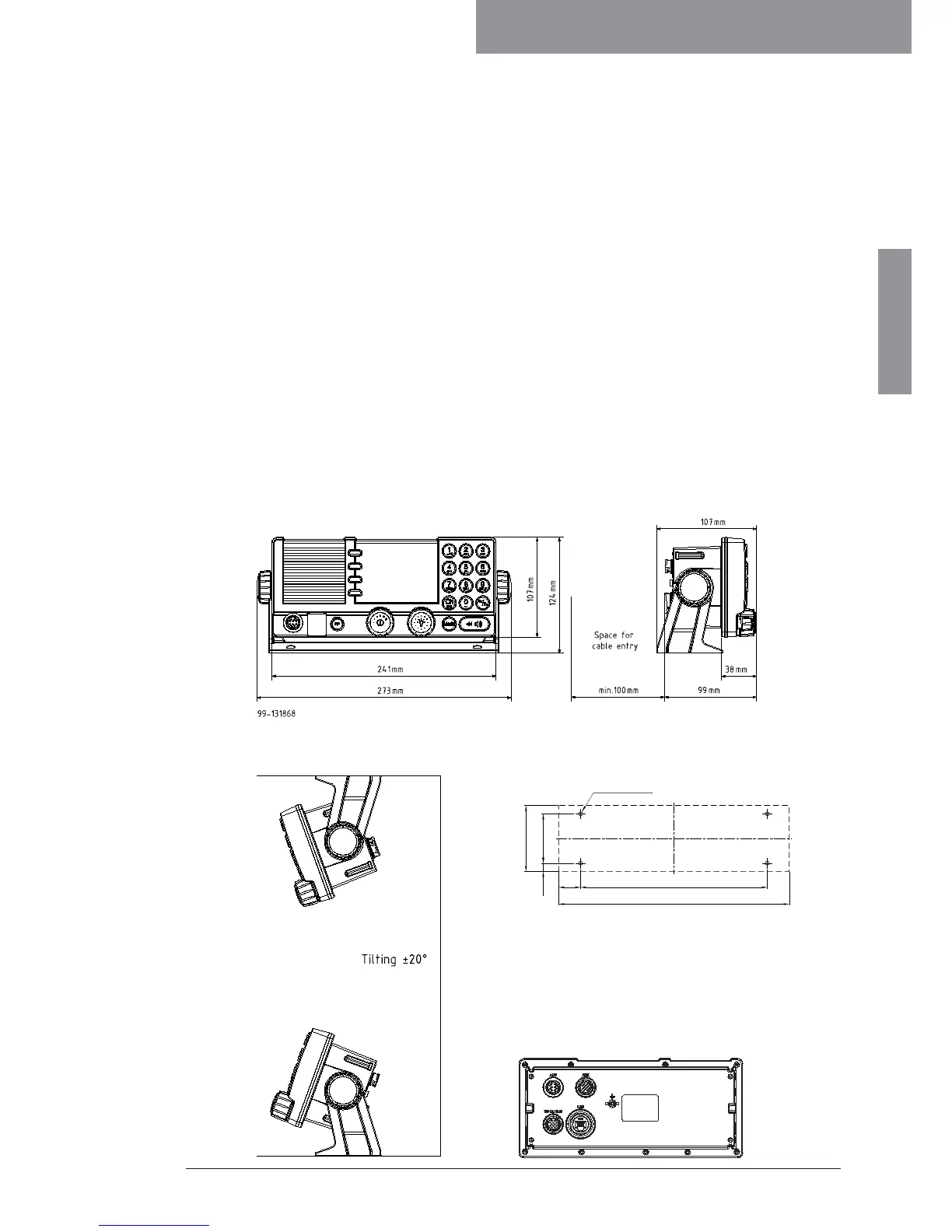

Control Units with mounting bracket
Mounting option Drilling plan for bracket
Chapter 2
Control unit connector panel
Weight:
Control Unit 0.82 kg
Mounting Bracket 0.20 kg
To Next Page
