2-2
Chapter 2: Installation
98-144591-D

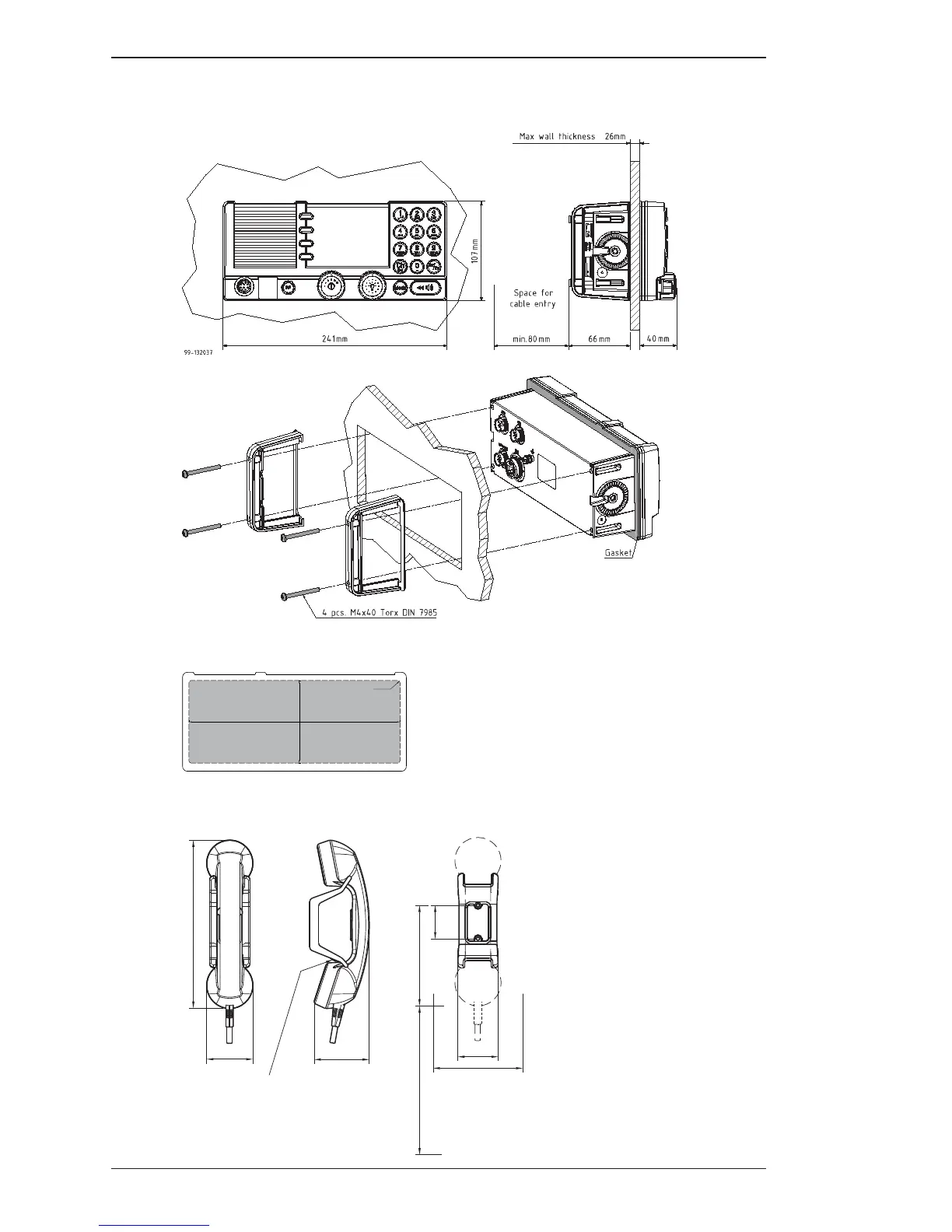

Mounting the Units
Control Units with fl ush mounting bracket
Drilling plan
Flush mount template
Remove material from shaded area only!
89mm
227mm
R2.5mm x 4
Weight:
Flush mount bracket 0.04 kg
WARNING:
Only use screws supplied with
mounting kit for attaching fl ush
mounting bracket to Control Unit.
Handset for Control Unit
This Handset has a hook-on/off function,
which is activated by a small magnet embedded
in the cradle.
The cradle must be installed as illustrated in
order to ensure the hook-on/off functionality
of the Handset.
75
62
226
* 120
min. 100
Space for handset access
Space for cable and handset cable
54
45
135
39655C
Drilling plan
Weight:
Handset for Control Unit 0.4 kg (0.02
lbs)
Dimensions are in mm
