Calibrating the master oscillator
4.2 Calibrating the master oscillator
Calibration of the Master Oscillator is achieved by means of a PPS (Pulse Per second) signal generated by
e.g. a (D)GNSS position sensor like the TT-6588A (D)GNSS Receiver.
1. The equipment ambient temperature shall be within 20° to 30° Celcius.
2. The TU must be powered up and left idle for 30 minutes prior to calibration.
3. Connect the PPS (Pulse Per second) signal from the (D)GNSS Receiver to the TU AUX-connector pins
7 (+) and 8 (-) as indicated in the AUX termination table for Cable 10, page 2-21.
To access the TU AUX connector use cable p/n S-406209-941. Should the cable need be extended

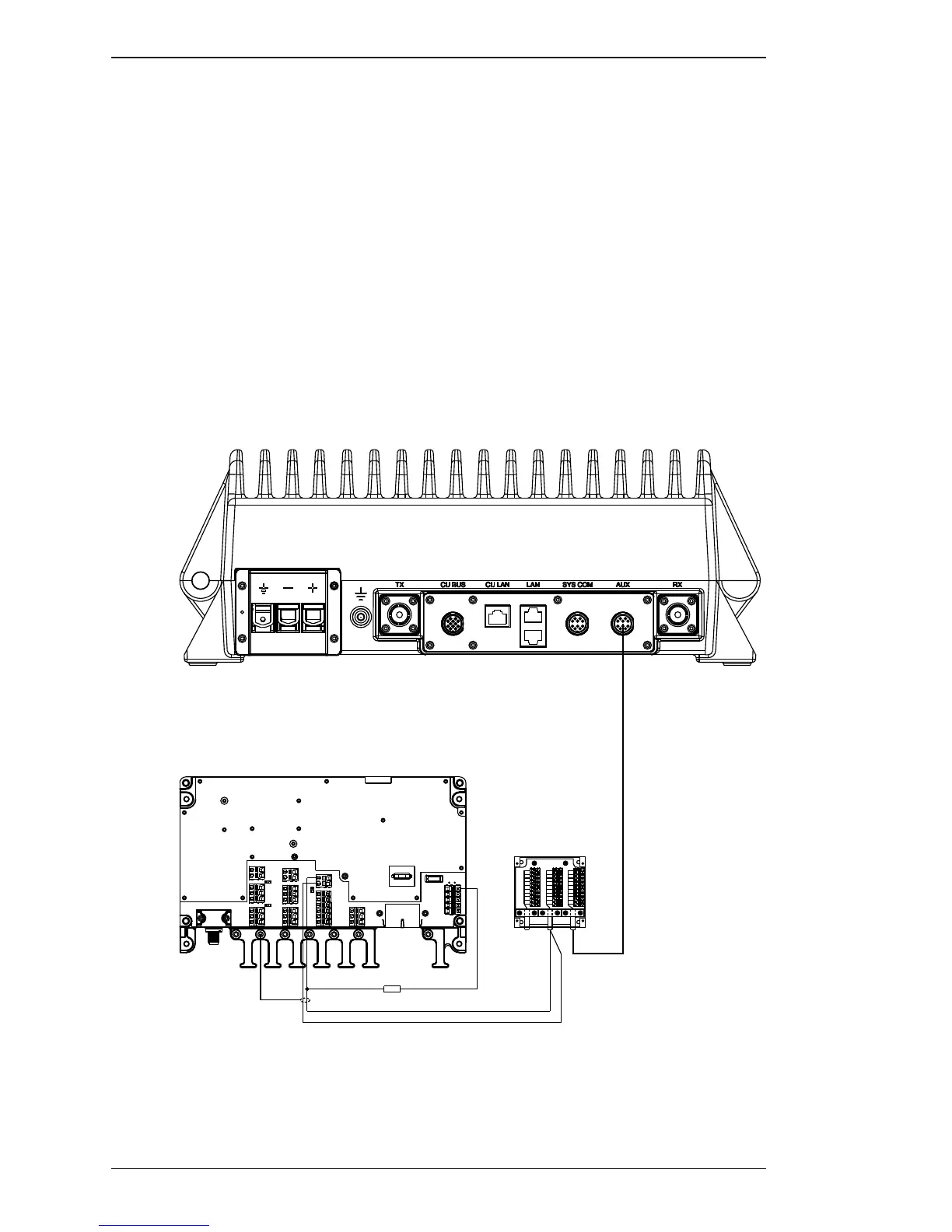

the TT-6209A Connection Box may be used as shown in below drawing.
If the TT-6288A (D)GNSS receiver is used for sourcing the PPS signal, connect a 10k pull up resistor
between the (D)GNSS Receiver positive supply input (+) and J21 Out terminal.
TT-636xB
Transceiver Unit
DGNSS Receiver
J1 J2 J3
10
9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
Connection Box
TT-6209A
TT-6588A
+
-
Shield
10k
Pin 8 Pin 7
Cable S-406209-941
-
+
J22
J15
J13 J17
J18
J19
J21
J16
J14
J12
J2
ON_OUT
ON_IN
SHIP GND
12-24VDC +
12-24VDC -
J6
ALARM ACK
IN 2
IN 1
LOG
OUT 2
OUT 1
IN/OUT
PPS
ALARM
W4
W3
W5
OUT
GND
4. Connect service PC to TU using Ethernet connection and Firefox browser to activate the TU WEB Service
Interface. Refer to User manual SAILOR 6000B MF/HF Service Interface (Doc. 97-147768 ), available for
download at Cobham SYNC.
5. Select Calibration tab and press 'Start' to initiate calibration process.
