Mounting the Units
2.2.5 SAILOR 6208 Control Unit Connection Box
The SAILOR 6208 is used to convert the small cable dimension from preconfi gured cable plug to spring
loaded terminals with strain relief for connection to larger cable dimensions.
The box is used to connect the Transceiver Unit to Control Units and Message Terminal respectively.
The box is fi tted with optional 120 ohm CAN-BUS termination.
Weight:
SAILOR 6208 0.5 kg.
2.2.6 SAILOR 6209 Accessory Connection Box
The SAILOR 6209 is used to convert the small cable dimension from LTW plug to screw terminals with
strain relief for connection larger cable dimensions.
The box is used to connect the Transceiver Unit and /or the Control Unit to peripheral equipment e.g.
GPS, external loudspeaker etc.
4 pcs. ø5.50
100
100
26
11.00
77.70
7.50
82.70
36998
Weight:
SAILOR 6209 0.4 kg.
Dimensions are in mm
The SAILOR 6208 and the SAILOR 6209 may be ordered as accessory. Please fi nd accessory list on the
last page of this manual.

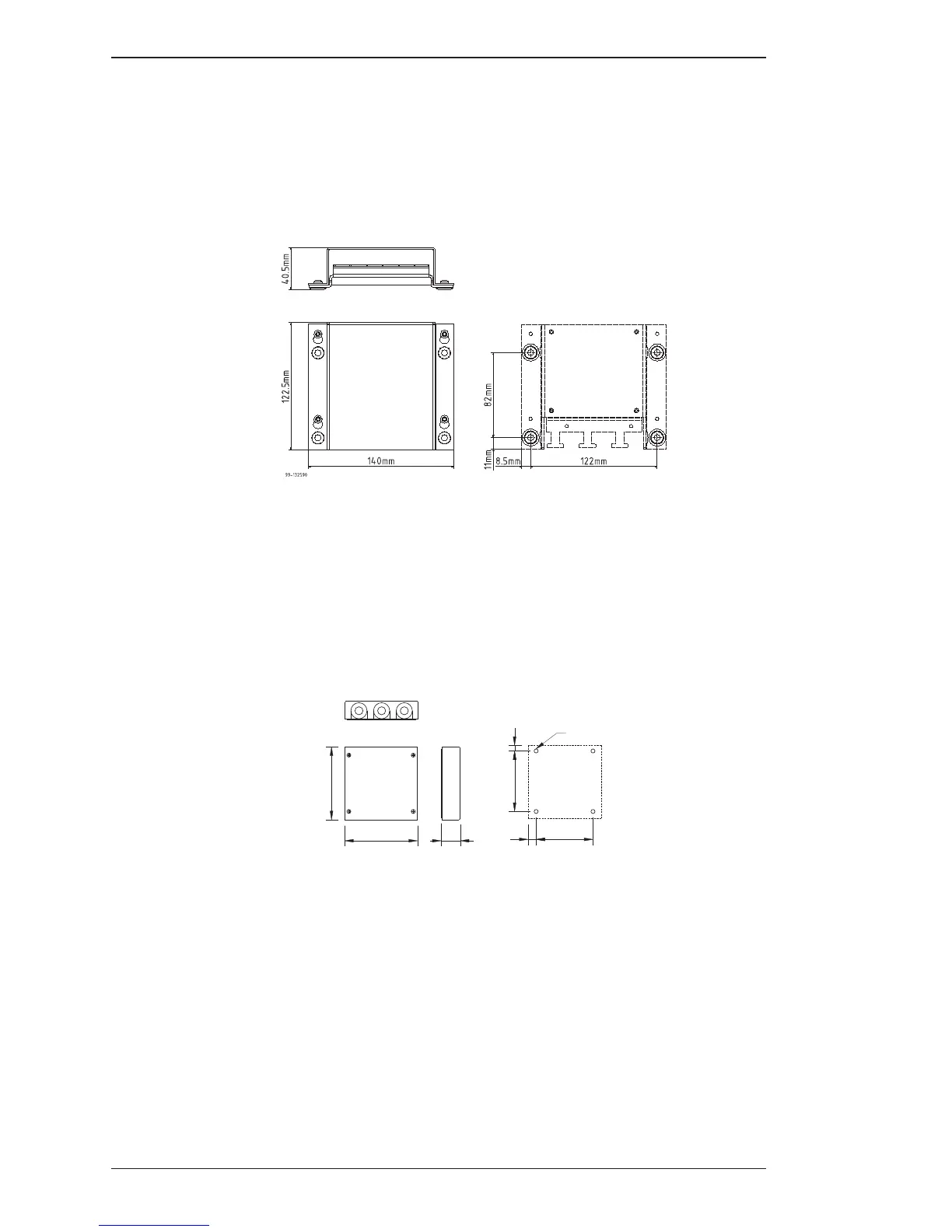

Drilling Plan
Drilling Plan
