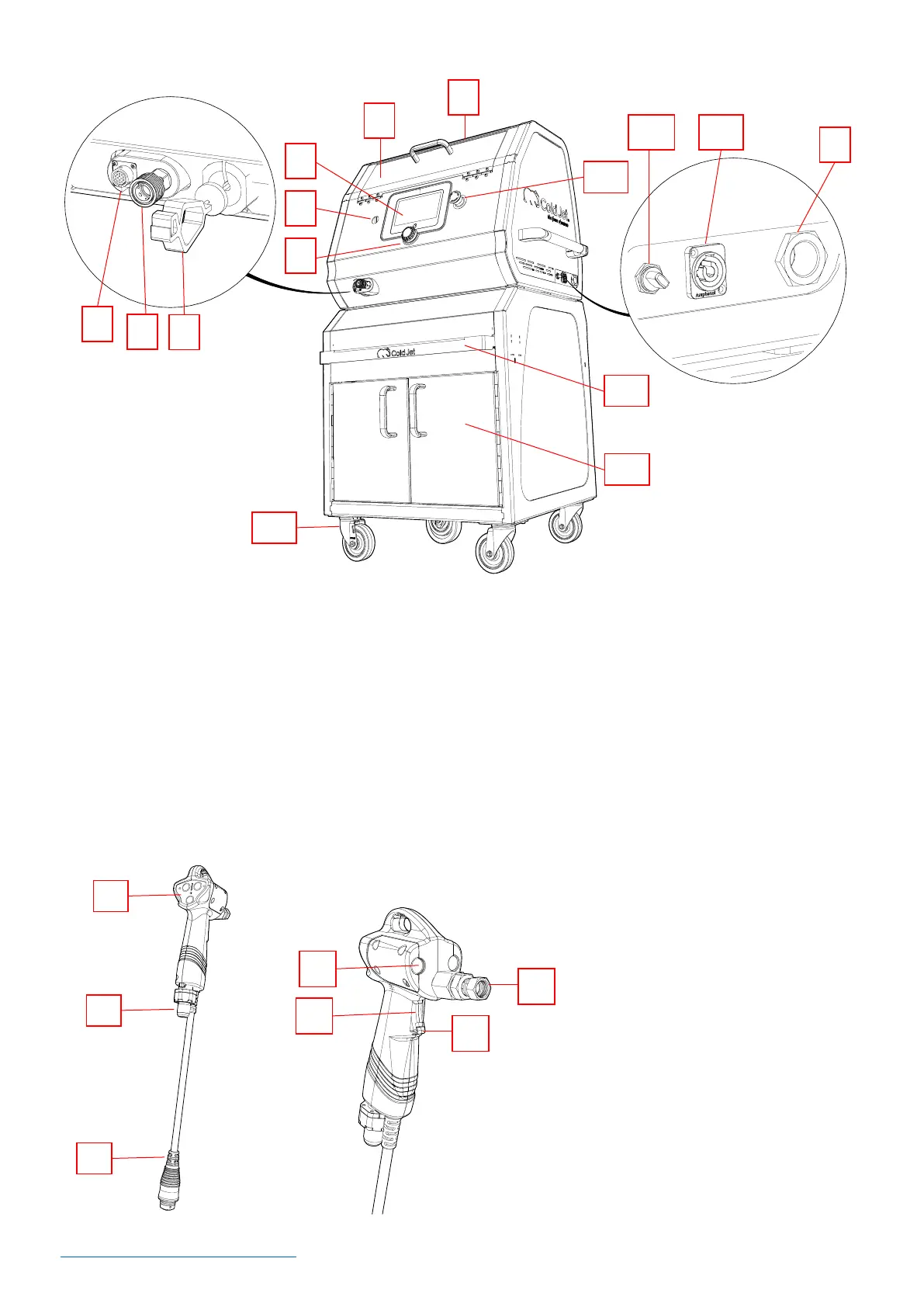

Machine Components
Applicator Components
1
2
3
4
5
7
6
9
11
12
8
10
13
14
15
1. Control Cable Connection
2. Blast Hose Connection
3. Static Ground Reel
4. Rotary Encoder Dial
5. Power Button [ON Indicator LED = Blue]
6. HMI Screen
7. Dry Ice Trough
8. Trough Dry Ice Level LED Indicator
9. Air Supply Connection
10. Power Cord Connection
11. Air Bleed Valve
12. Emergency Stop
13. Cabinet Drawer
14. Cabinet Access
15. Wheels with locking mechanism
1
2
3
4
5
7
6
1. Applicator Controls
2. Blast Hose Connection
3. Control Cable Connection
4. Illumination Lights
5. Trigger
6. Nozzle Connection
7. Safety Switch
NOTE: The applicator trigger has a
safety switch that must be
depressed first before the
trigger will activate.
