7. CONTROL AND PARTS FUNCTIONS
safety feature. It is located on the left handlebar and is operated
by the left hand. It is intended as a backup to the main brake
system, especially if the main system becomes inoperative.
If the rear wheels slide, apply the rear brake with the left hand to
some extent. Aggressively applying the rear brake when backing
down a hill may cause rear tip over.
Brake Fluid Level
Top Window

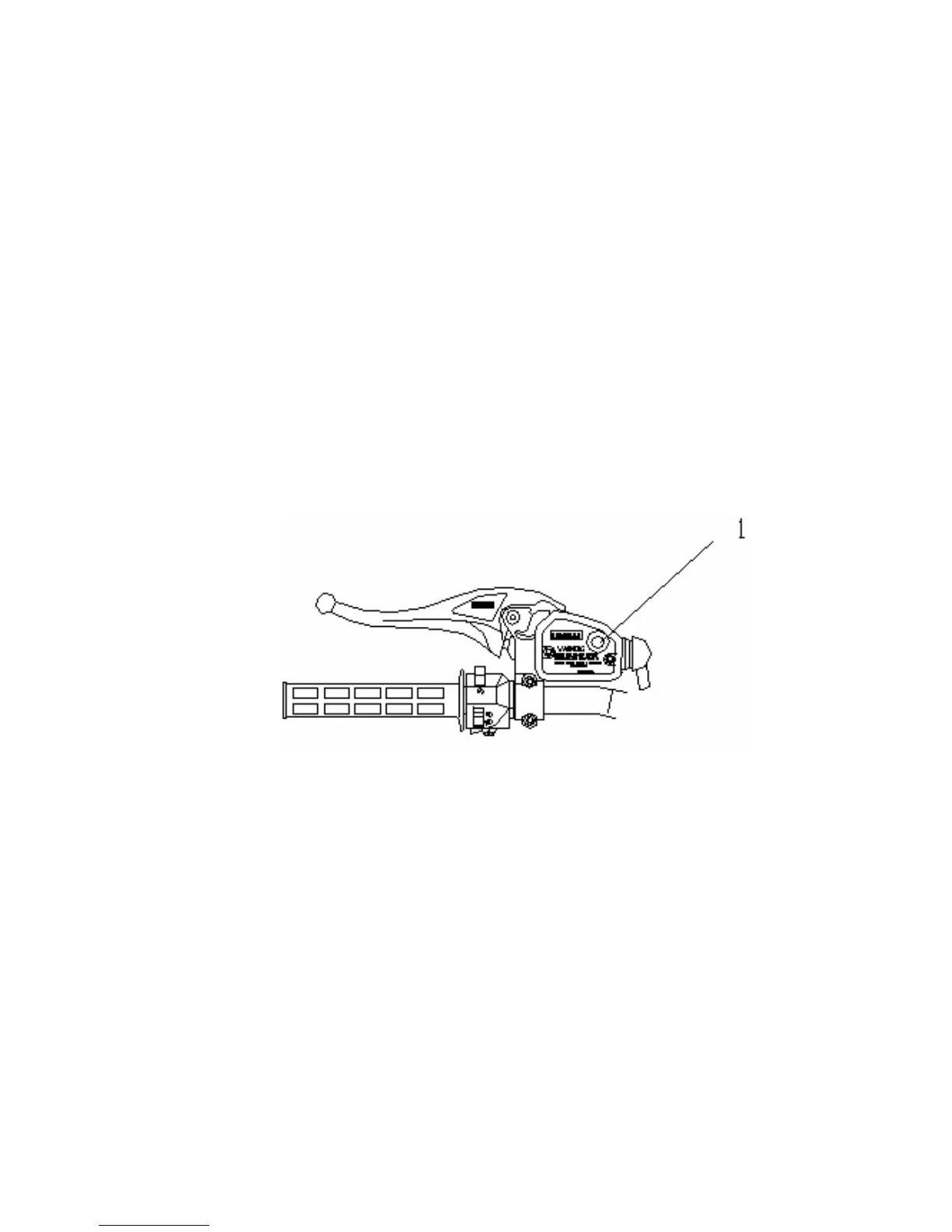

The brake fluid in the master cylinder, which is located on the left
handlebar, should be checked before each side. There is an
indicator window (1) on the top of the master cylinder. This
window will appear dark when the fluid level is full. When fluid
needs to be added, the window will be clear. NOTE: When
checking the fluid level, the ATV must be on level ground and the
handlebars must be straight. If the fluid level is low ass DOT 3
only.
On some models, there is a “side window”, the fluid level can be
seen through it, and should be maintained between the indicated
“max” and “min” marks on the reservoir.
37
Your ATV has an auxiliary brake provided as a
