16. MAINTENANCE

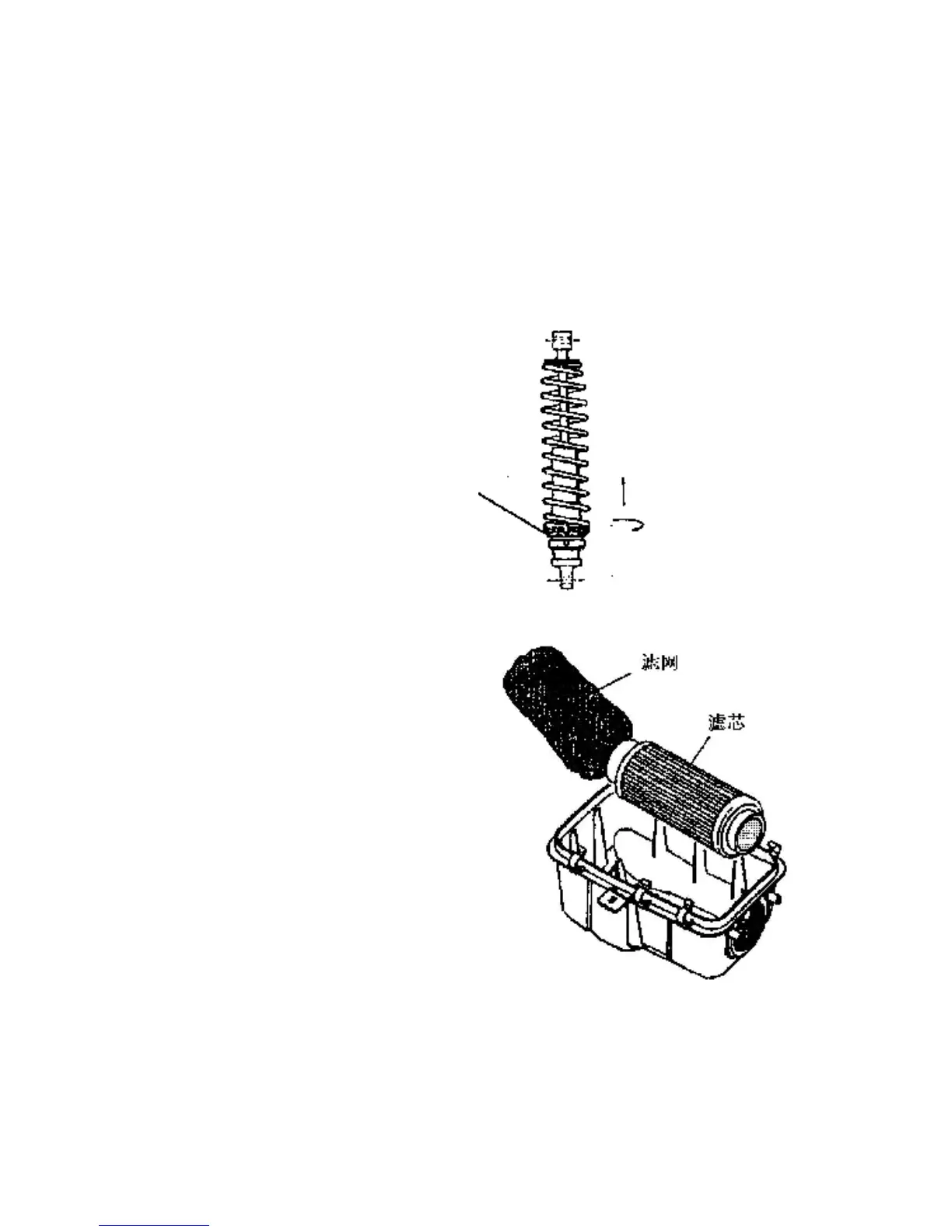

Rear Spring Adjustment
The rear shock absorber spring is adjusted by rotating the
adjuster in the direction required to increase or decrease spring
tension.
Rear Spring
Adjustment
Air Filter Service
1. Remove seat.
2. Release clips and remove
Cover.
3. Loosen clamp and remove
Filter.
4. Remove fabric type pre-filter
from main filter. Wash pre-filter in
soapy water and dry it.
5. Reinstall pre-filter over main filter. Replace main filter as
required.
6. Reinstall filter into air box and tighten clamp. Do not over
tighten clamp or filter damage may occur.
83
