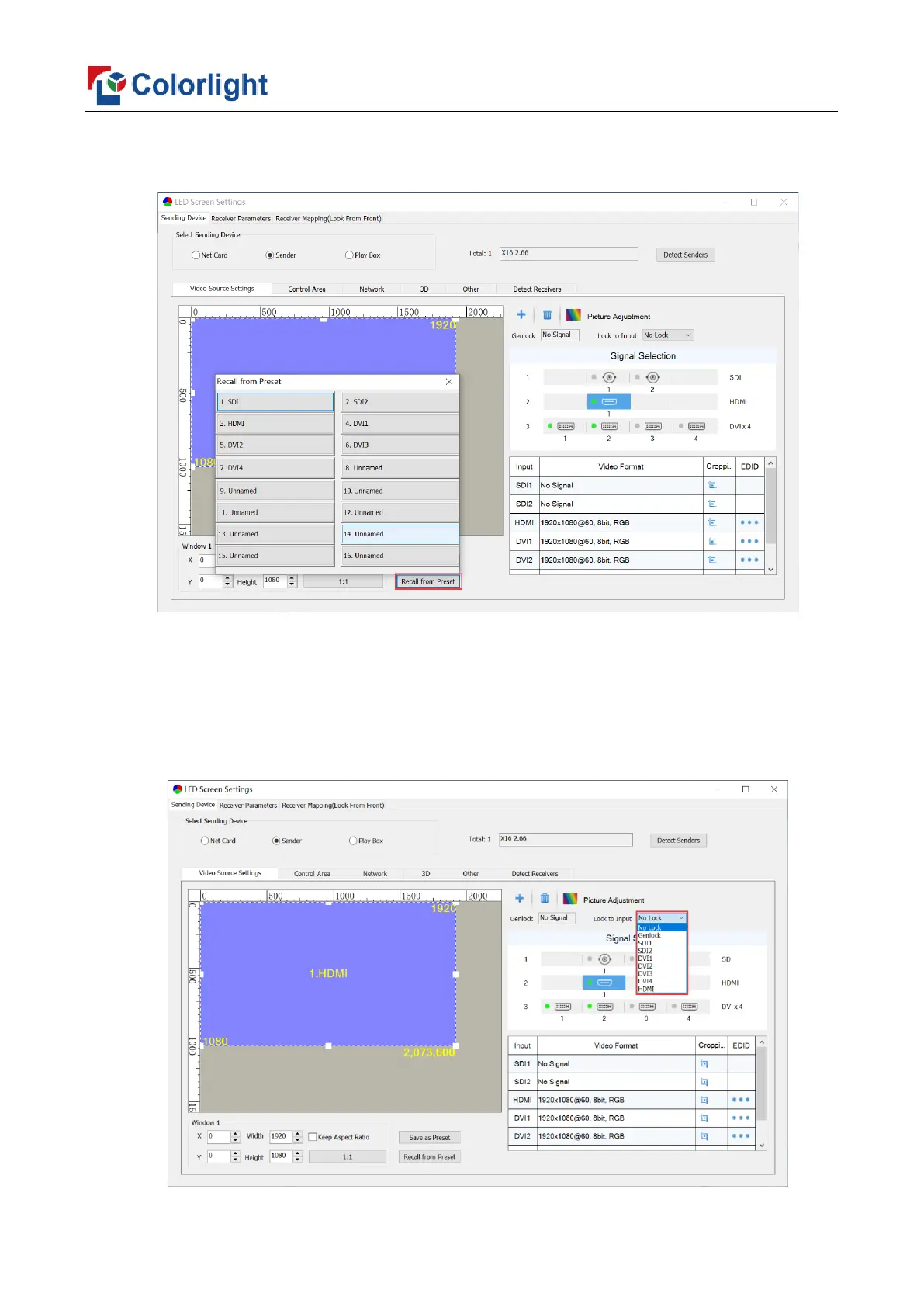

Click
Recall from Preset
, select a preset item, and the screen will display image on
the basis of the preset parameter
.
4.3.5 Genlock
Synchronous signal source supports Genlock and every channel of i
nput signals.
When there is no specified synchronous signal source or the specified synchronous signal
source has no signal, the main image is regarded as synchronous signal source.
