5.3.7 Lock to Input
When several controllers are cascaded with each other, Lock to Input is necessary to
ensure the synchronization of the video displays. Rotate the knob and select Lock to Input
to enter the submenu. On the submenu, you can select a sync signal source.
5.3.8 Tile Mapping
Rotate the knob and select Tile Mapping to enter the Tile Mapping submenu.

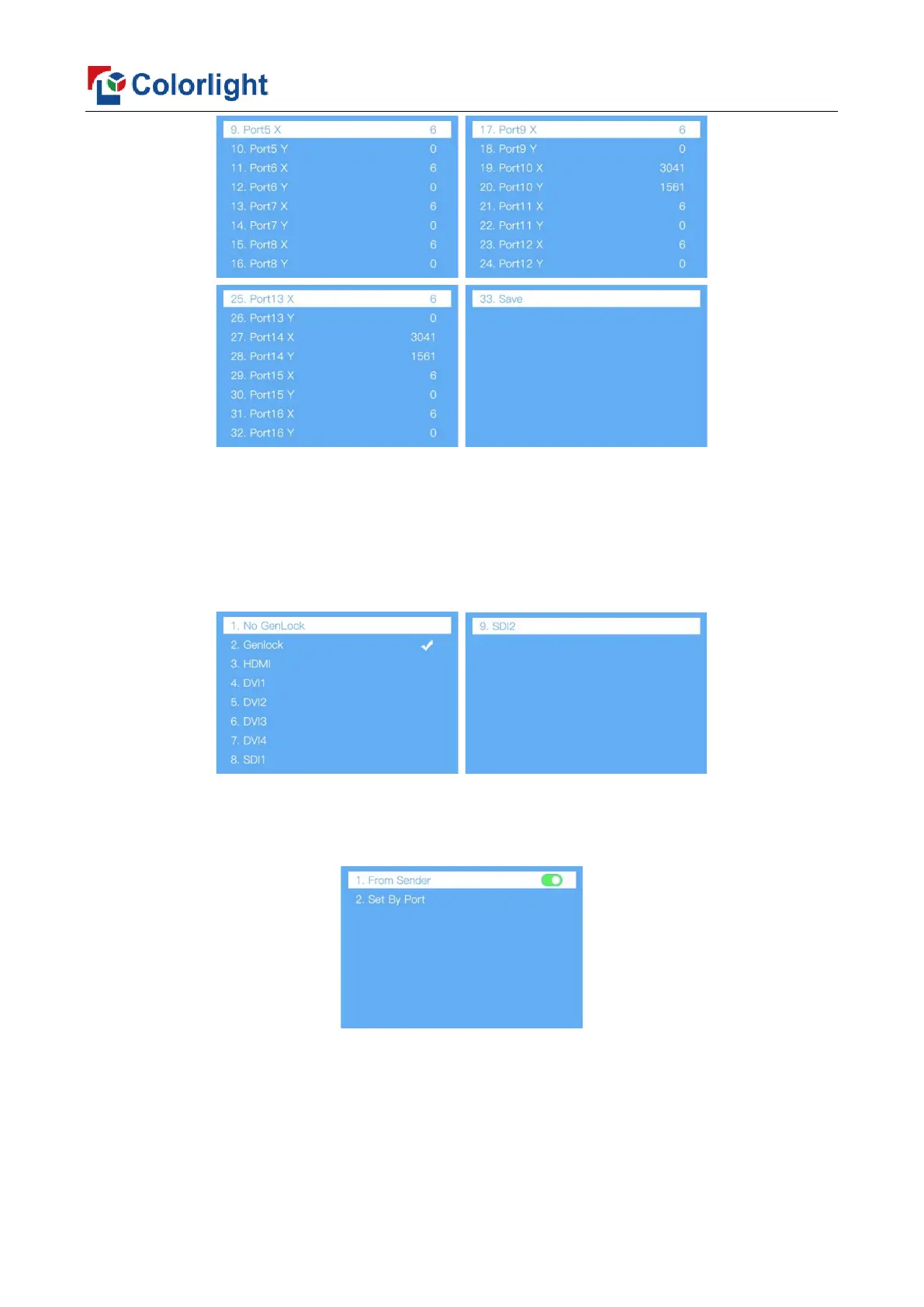

In the submenu, press the knob/OK to set the sender as the connection source. Then
select Set by Port to enter the submenu, in which you can choose the Ethernet port from 1
to 16 that needs setting mapping, and set the row offset value(X) and column offset value(Y)
of the port, and the width, height, row number, column number and link type of the
