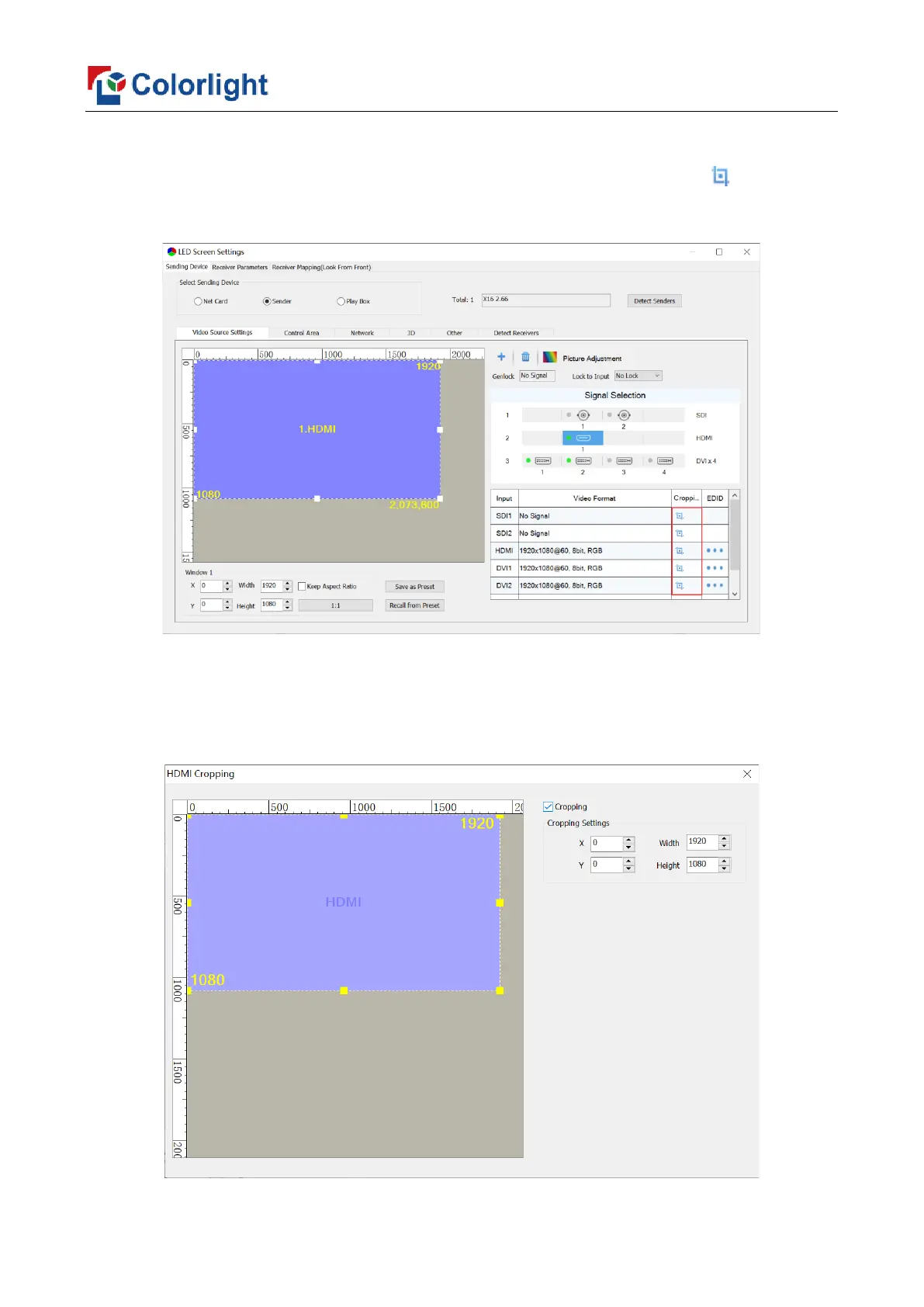

4.3.6 Cropping
In
the
lower
-
right
corner
of
the
Video
Source
Settings
sub
-
page,
click
to
enter
the
cropping setting window
.
In
the
cropping
setting
window
,
select
the
Cropping
check
box,
and
set
the
row
starting
point (
X
), the
column
starting point (
Y
),
and the
width
and
height in
the
Cropping Settings
area.
