Colorlight X16 User Manual

www.colorlightinside.com
20

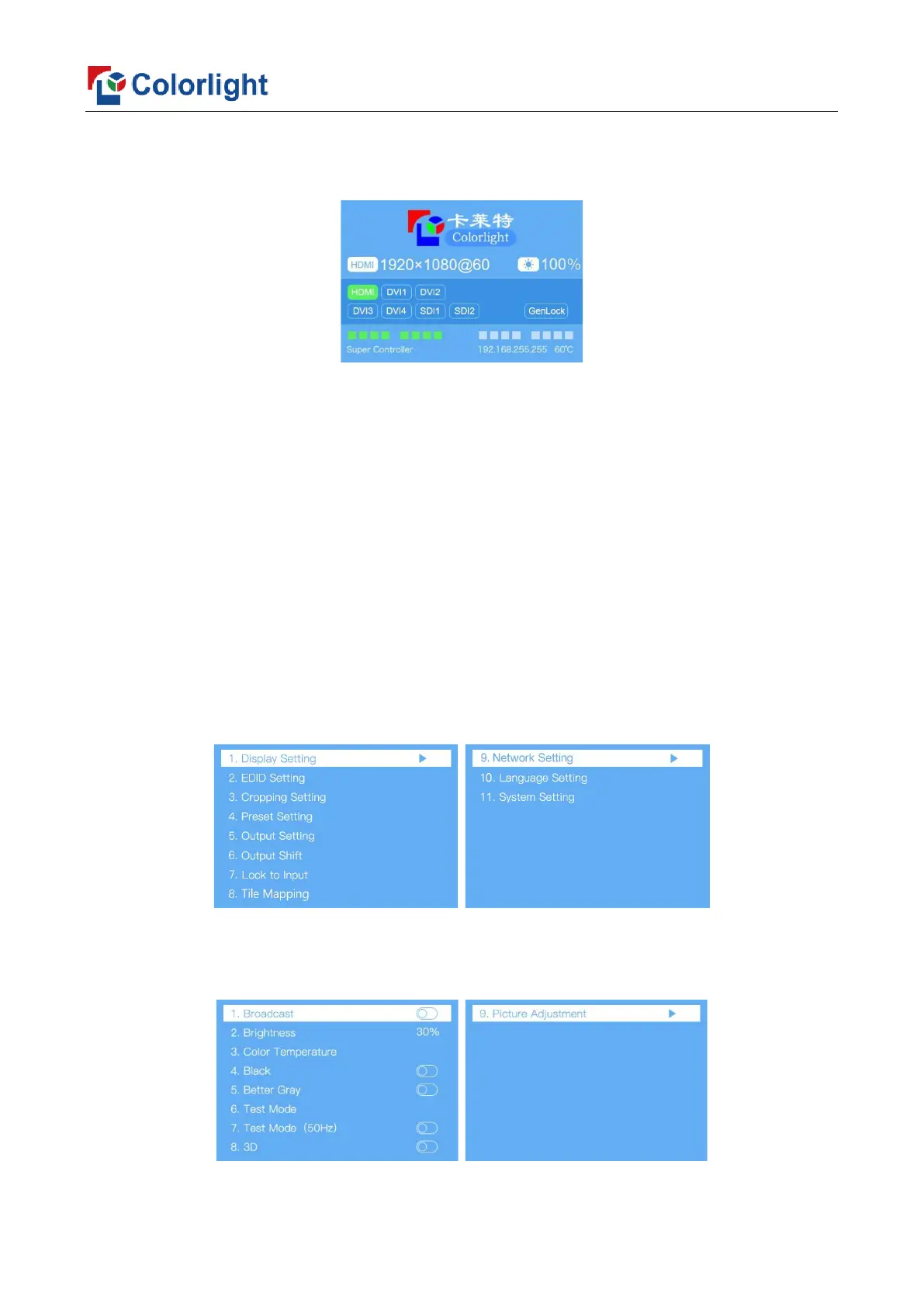

5.2 Main Interface
After starting up the X16 controller, the main interface of the LCD display is as follows:
First row: Company logo
Second row: Signal source, Brightness
Third and fourth row: Connection status of signal source and Genlock
Fifth row: Connection status of Ethernet ports
Sixth row: Product name, IP address, Temperature
5.3 Menu Operation
Press the knob/OK to enter the operation menu, which includes 11 operation items:
Display Setting, EDID Setting, Cropping Setting, Preset Setting, Output Setting,
Output Shift, Lock to Input, Tile Mapping, Network Setting, Language Setting and
System Setting.
5.3.1 Display Setting
Rotate the knob and select Display Setting to enter the Display Setting submenu.
