Colorlight X16 User Manual

www.colorlightinside.com
4
Input Interface
1
SDI
2×3G-SDI
2
HDMI
1×HDMI 2.0
3
DVI
4×DVI
Output Interface
1
Port1-16
RJ45，16 Gigabit Ethernet outputs, which can be arbitrarily spliced
Controlling Interface
1
LAN
Network control (communication with PC, or access network)
2
USB IN
USB input, connecting to PC for debugging
3
USB OUT
USB output, for cascading with the next controller
4
Genlock
Genlock signal input, ensuring synchronism of display image
5
Genlock Loop
Genlock synchronous signal loop output
6
RS232
RJ11 (6P6C) *，used to communicate via 3rd party interfaces
Power
1
AC 100~240V
AC Power Interface

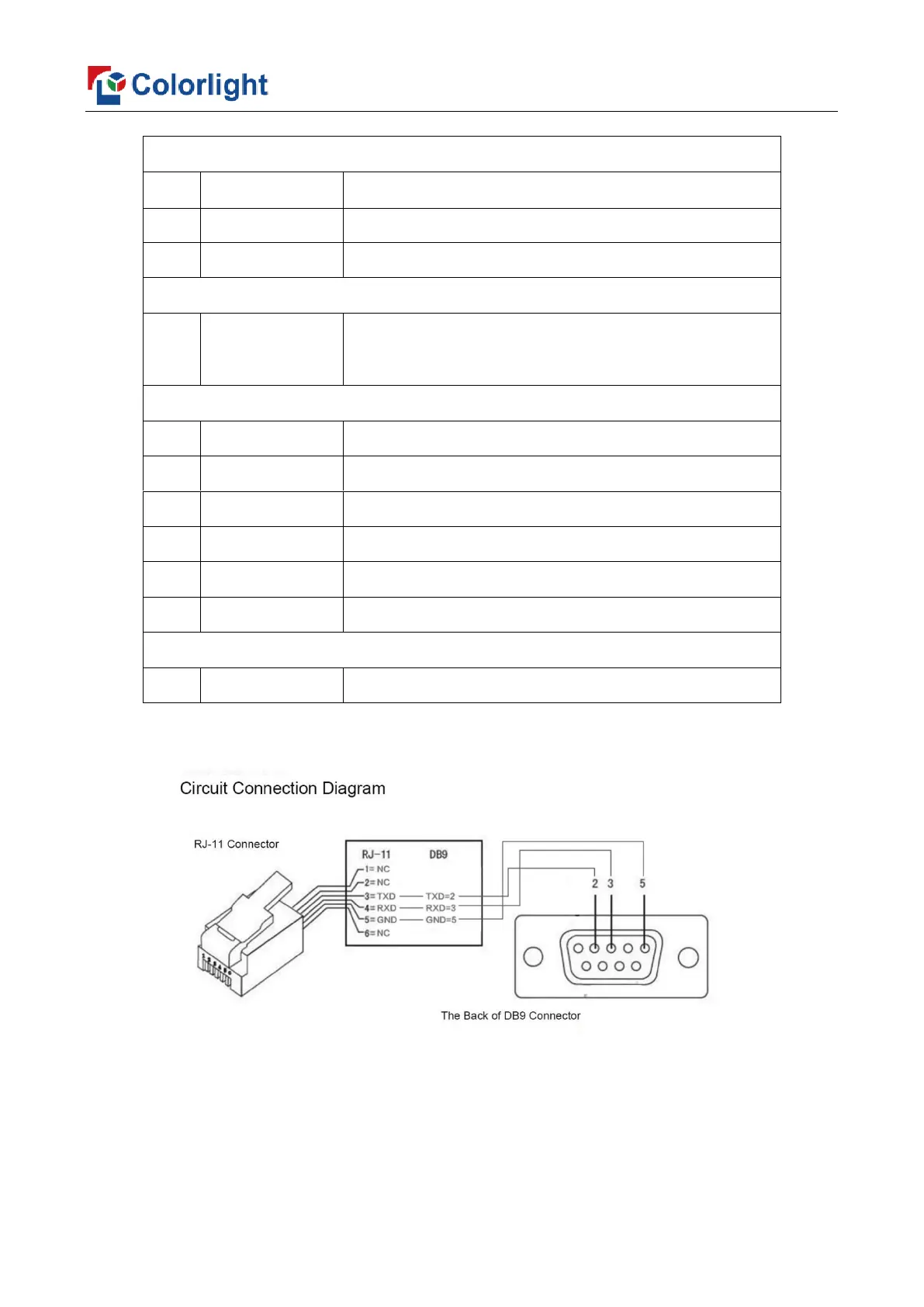

*RJ11 and DB9 Conversion
