InteliLite
NT
– MRS3,4, AMF8,9, SW version 1.4, ©ComAp – October 2008 28
IL-NT-MRS3,4-AMF8,9-1.4-Reference Guide.pdf
Set to: Over Limit
Contact type: selection of polarity only when analog input is configured as Binary or Tri-state. When
is analog input configured as analog this setting has no sense.
„NC“ – polarity of binary or tri-state input
„NO“ – polarity of binary or tri-state input
Sensor: selection of sensor characteristic
„Unused input“ - when Analog input is not used. On the InteliLite screen is displayed „####“ value, no
alarm is detected.
Default user curves predefined on AI1 – AI3:
„VDO 10 Bar“ – VDO pressure sensor
„VDO 40-120 °C“ – VDO temperature sensor
„VDO level %“ – VDO level sensor
Set to: VDO 40-120 °C
When you choose the predefined or user curve the Sensor Name, Dim and Resolution are setted
automaticly according to curve, user modification is possible.
Sensor Name: Name of used sensor, up to 14 letters can be used.
Dim: Name of measured unit (Bar, °C, %, …), up to 4 letters can be used.
Resolution: setting of resolution of measured value.
„0“ - e.g. 360 kPa, 100%, 50 °C
„1“ – e.g. 360.0 kPa
„2“- e.g. 360.00 kPa
„3“ - e.g. 360.000 kPa
Set to: 1
When Analog input configuration is finished set the setpoints AI1 Wrn, AI1 Sd, AI1 Del in Basic
setting group.
Number of decimal points of AIx Wrn and AIx Sd is the same as the configured number of decimal
points of measured value.

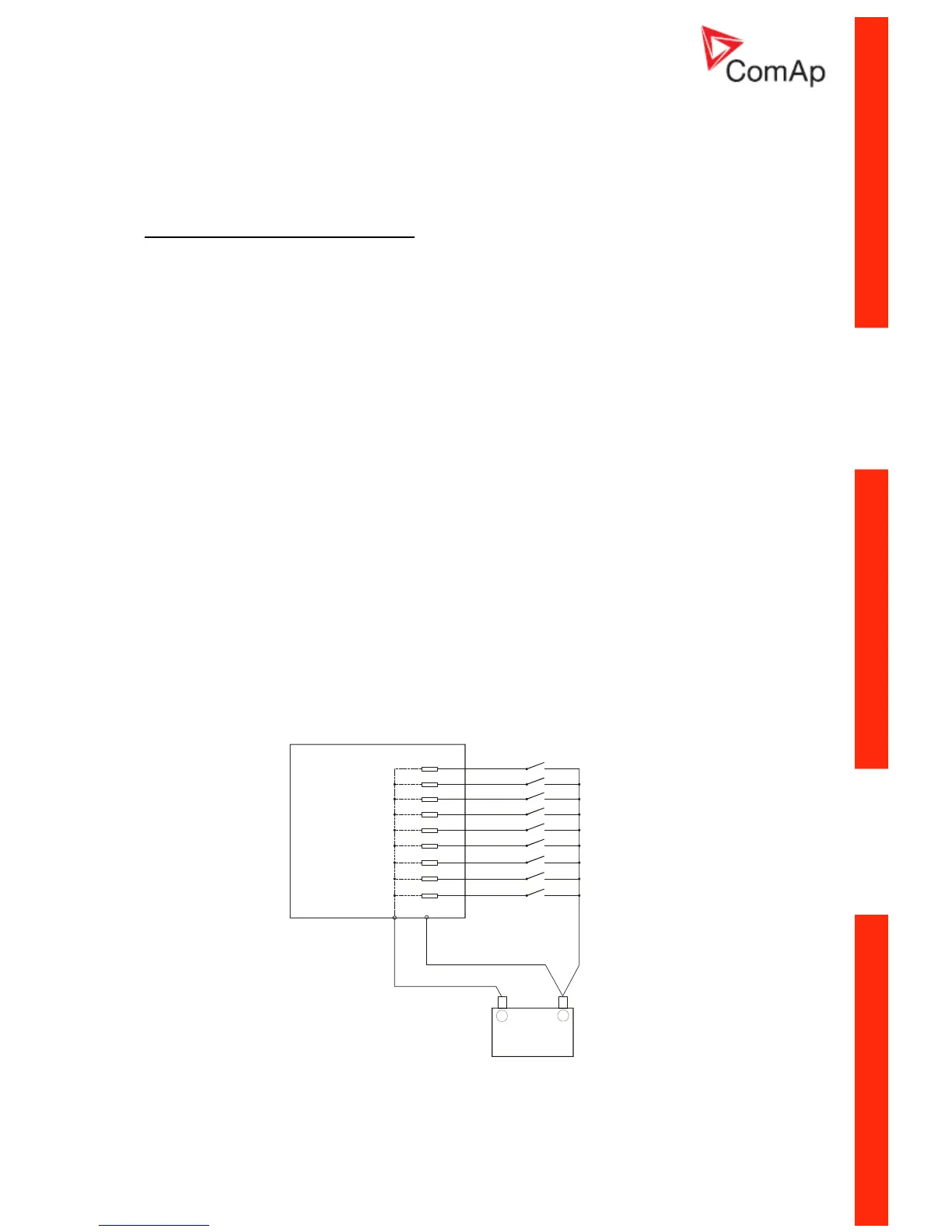

Binary inputs
+
Battery
-
iL
4k7
Ω
+
-
Power
Supply
