IL-NT RS232 Communication module
IL-NT RS232 is optional plug-in card to enable InteliLite
NT
for RS232 communication. This is required
for computer or Modbus connection. Card inserts into expansion slot back on the controller.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be
installed permanently. Should you need to remove it, the safest way is to remove whole back cover
and than remove module manually.
How to install RS 232 communication module:
Hint:
The following procedure is analogic also for other communication modules.

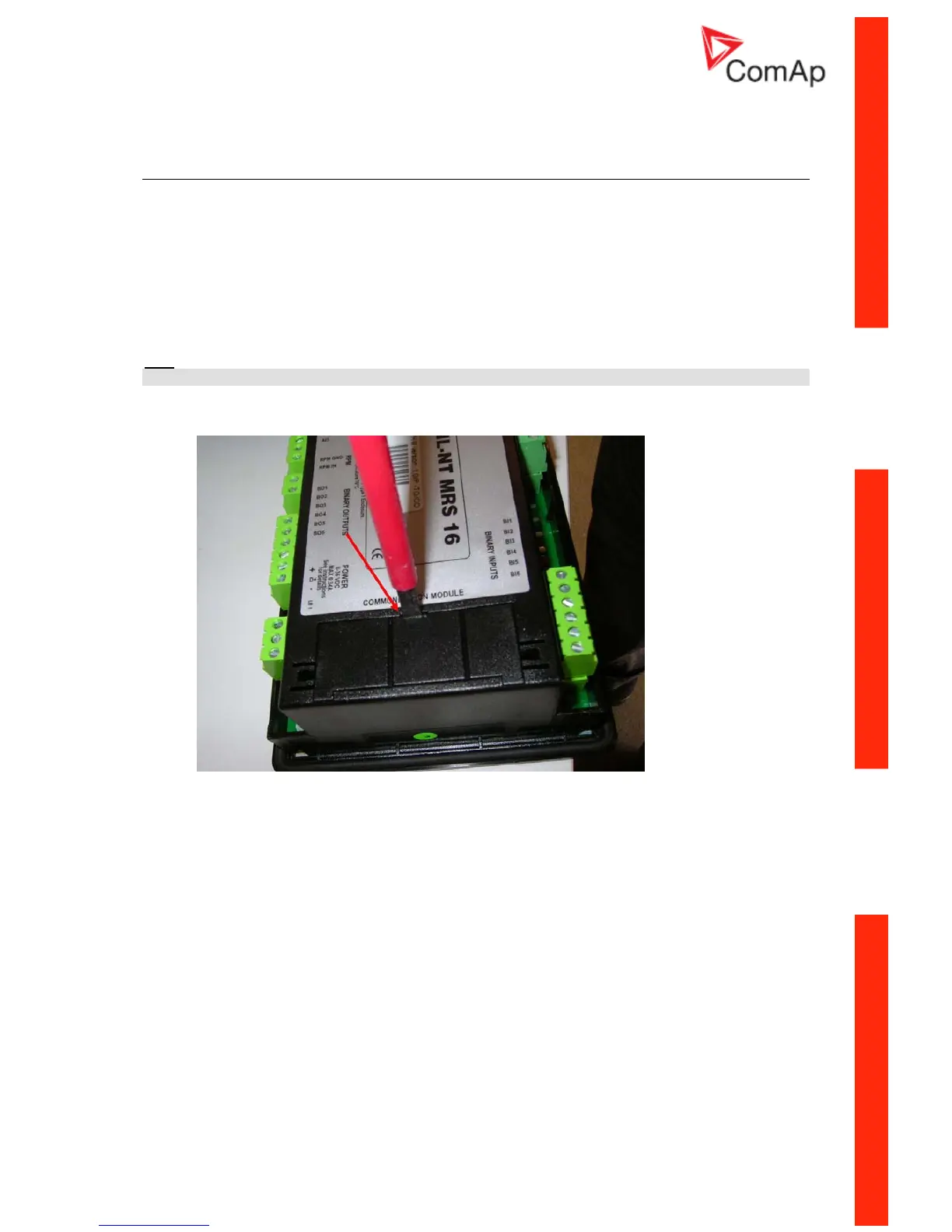

1. Insert a screwdriver into the slot of the cover.
2. Move the screwdriver to set apart the small cover. Be careful!
