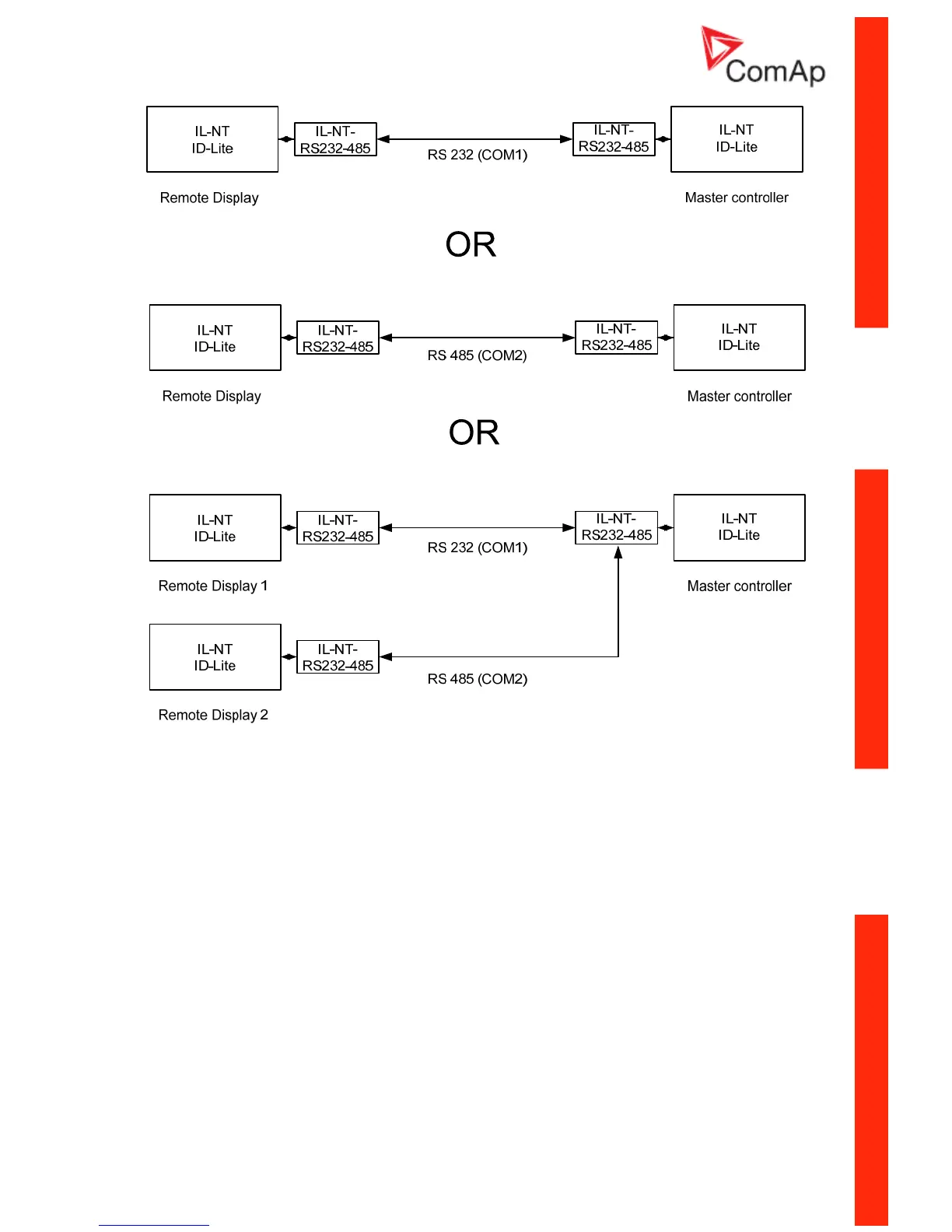

Case 1) RS232
settings:
ase 2) RS485
settings:
ase 3) RS232 +RS485
is possible to make a RS232 direct connection with IL-NT-RS232 module on one side and IL-NT-
Alternative connection using external RS232-RS422/485 converter:
Recommend external converter:
Master controller
ControllerAddr = 1..32
COM1 Mode = DIRECT
C
Master controller
ControllerAddr = 1..32
COM2 Mode = DIRECT
C
Master controller settings:
ControllerAddr = 1..32
COM1 Mode = DIRECT
COM2 Mode = DIRECT
It
RS232-485 module on the other side.
