PWR, SW version 1.0, ©ComAp – March 2009 19
IA-NT- PWR-1.0-Reference Guide R1.pdf

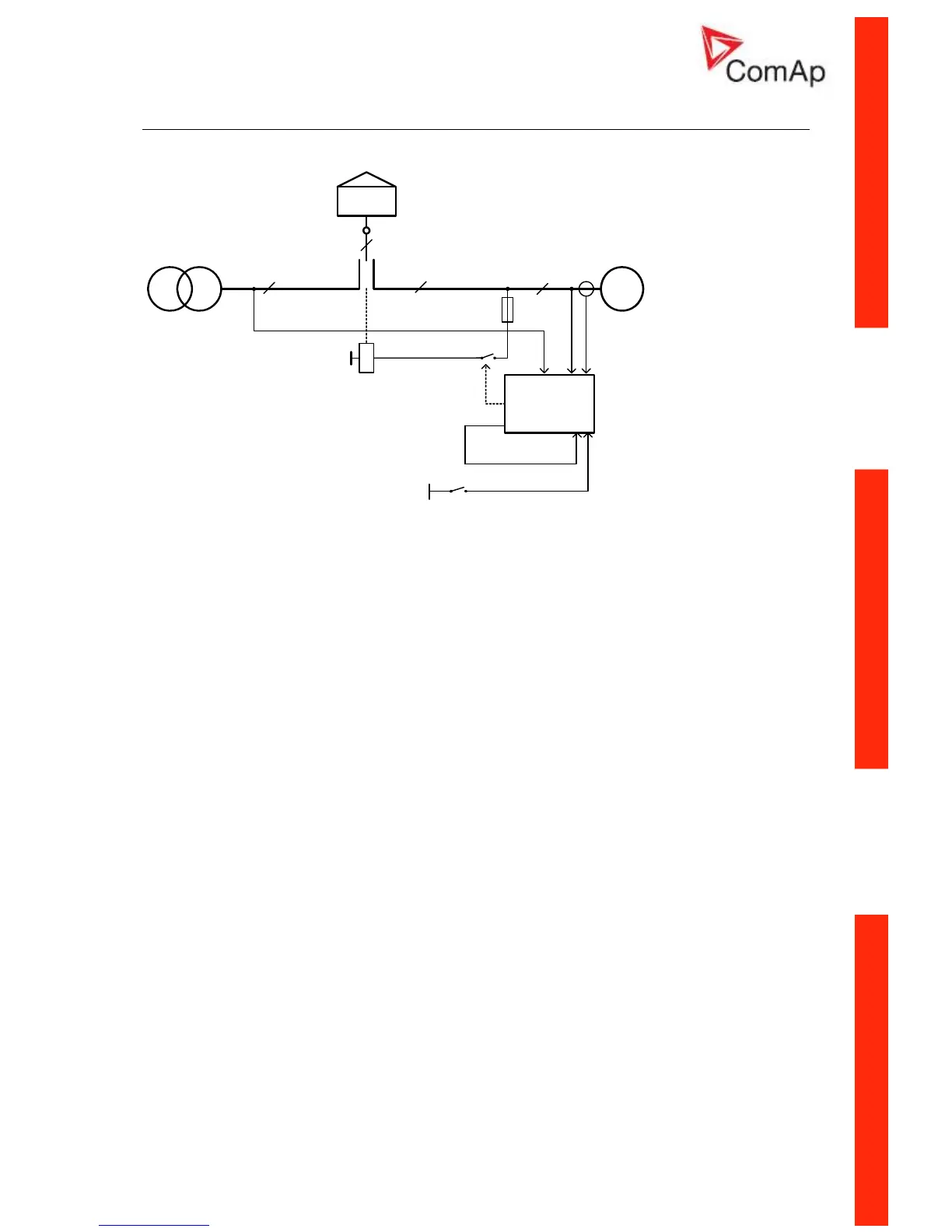

AMF using two-position ATS with feedback
G
IA-NT
3x
3xU
M
3xU
G
3x
I
G
3x
T
MCB FEEDBACK
GCB FEEDBACK
3x
MCB CLOSE/OPEN
GCB CLOSE/OPEN
BO
BI
K3
ATS on "II" position
LOAD
ATS
3x
ATS
I
II
Specification
• Automatic remote gen-set start when the mains fails (AUT mode)
• Two-position ATS control with feedback
• Break transfer on mains failure
• Break return on mains return (Load reclosing)
• Test mode (set running and waiting for mains failure)
Hardware requirements
1x IA-NT PWR
Setpoints
MCB Logic = “CLOSE-ON”
