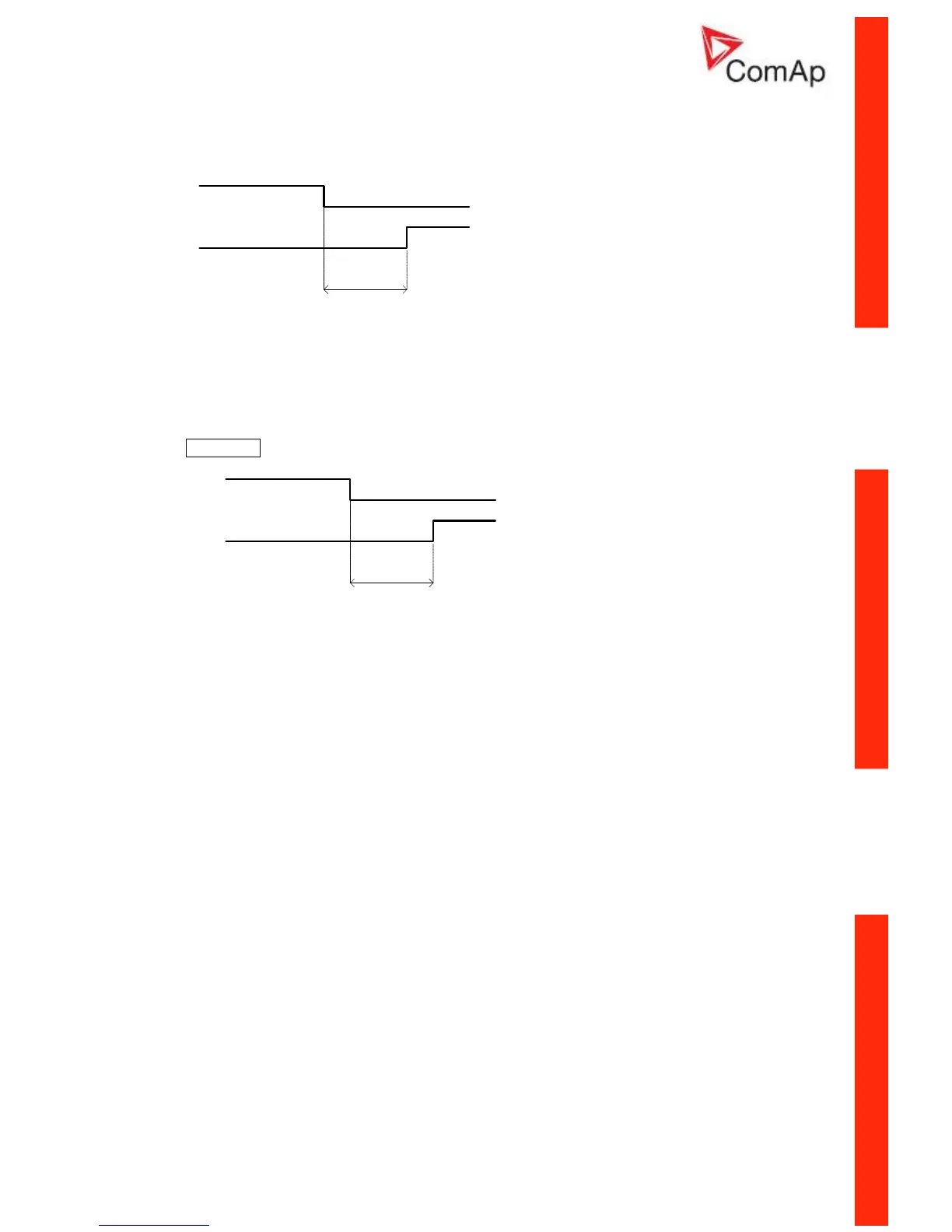

Relation between GCB and MCB
Conditions: AUTO Mode, Mains =off, MCB = opened, GCB = closed, gen-set loaded.
Mains returns: GCB opens (according 3., MainsReturnDel), MCB closes (Transfer Del)
GCB opened
MCB closed
Transfer Del
Relation between GCB and MCB (Test mode)
Situation 1: Mains =OK, MCB = closed, GCB = opened, RPM=0.
Change mode to TEST: gen-set starts, GCB = opened.
Mains cut: MCB opens (according 1.), GCB closes (Transfer Del)
Situation 2: ReturnFromTEST=MANUAL, Mains =OK, MCB is closed, gen-set is running.
Press MCB on/off -> MCB opens, GCB closes (Transfer Del), gen-set is running loaded.
MCB opened
GCB closed
Transfer Del
