COMBAT CTU-90 - CTUB, CTUC and CTUD

SECTION 5: SPECIFICATIONS
9 of 46
5.2 CTUB, CTUC and CTUD

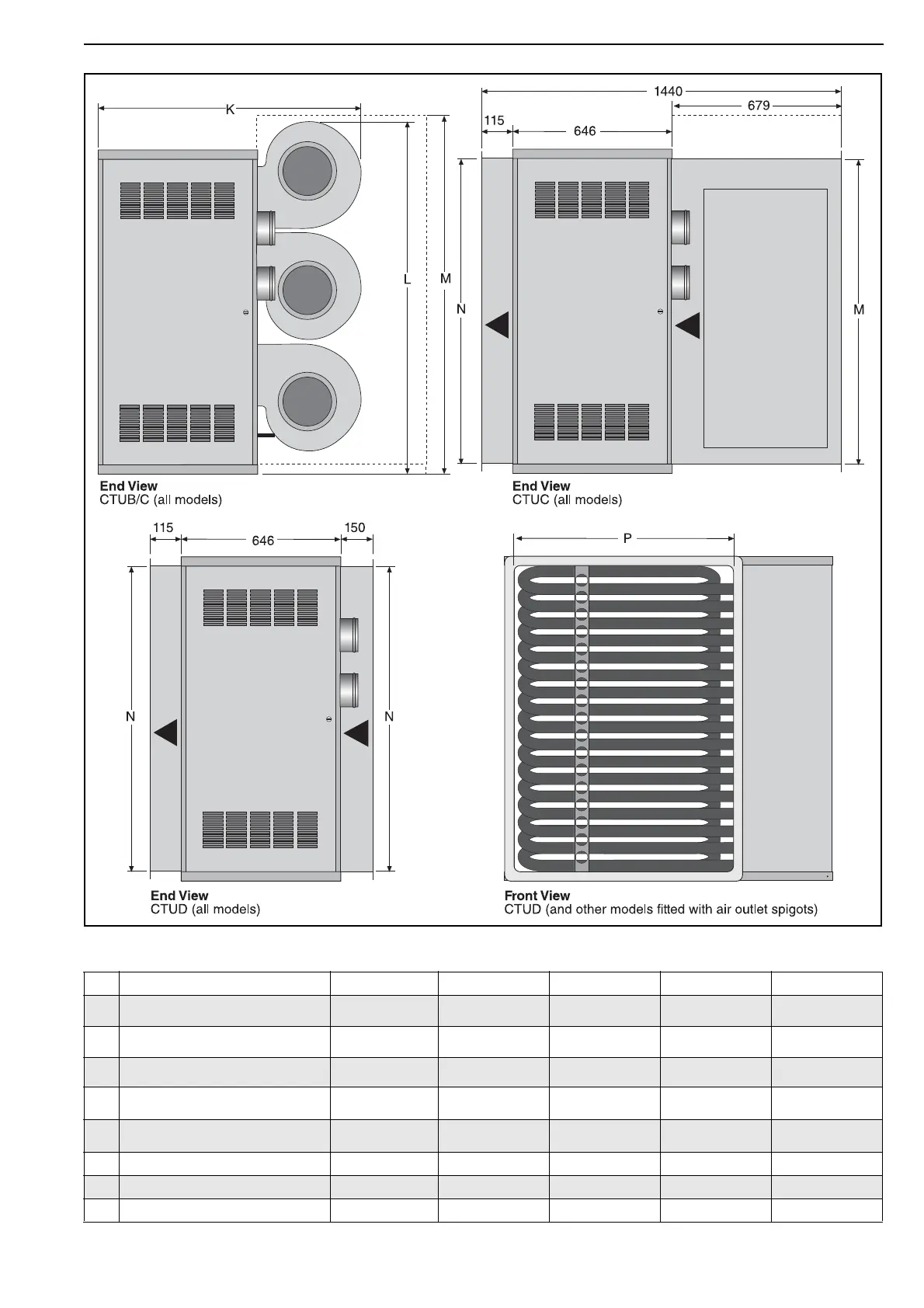

Dimension Data - CTUB, CTUC and CTUD
NOTE: Inlet and outlet duct spigot fitted with 30 mm flange.
Model 75 90 100 115
K
CTUB Depth
mm
(in)
1076
(42.4)
1076
(42.4)
1076
(42.4)
1076
(42.4)
L
CTUB Height
mm
(in)
1100
(43.3)
1100
(43.3)
1380
(54.3)
1380
(54.3)
M
CTUC Height
mm
(in)
1100
(43.3)
1100
(43.3)
1431
(56.3)
1431
(56.3)
N
Inlet & Outlet Duct
Spigot Height
mm
(in)
1024
(40.3)
1024
(40.3)
1233
(48.5)
1233
(48.5)
P
Inlet & Outlet Duct
Spigot Width
mm
(in)
888
(35)
888
(35)
888
(35)
888
(35)
Weight CTUB kg 185 210 228 237
Weight CTUC kg 206 215 251 260
Weight CTUD kg 172 181 200 209
