SECTION 6: HEATER INSTALLATION

13 of 46

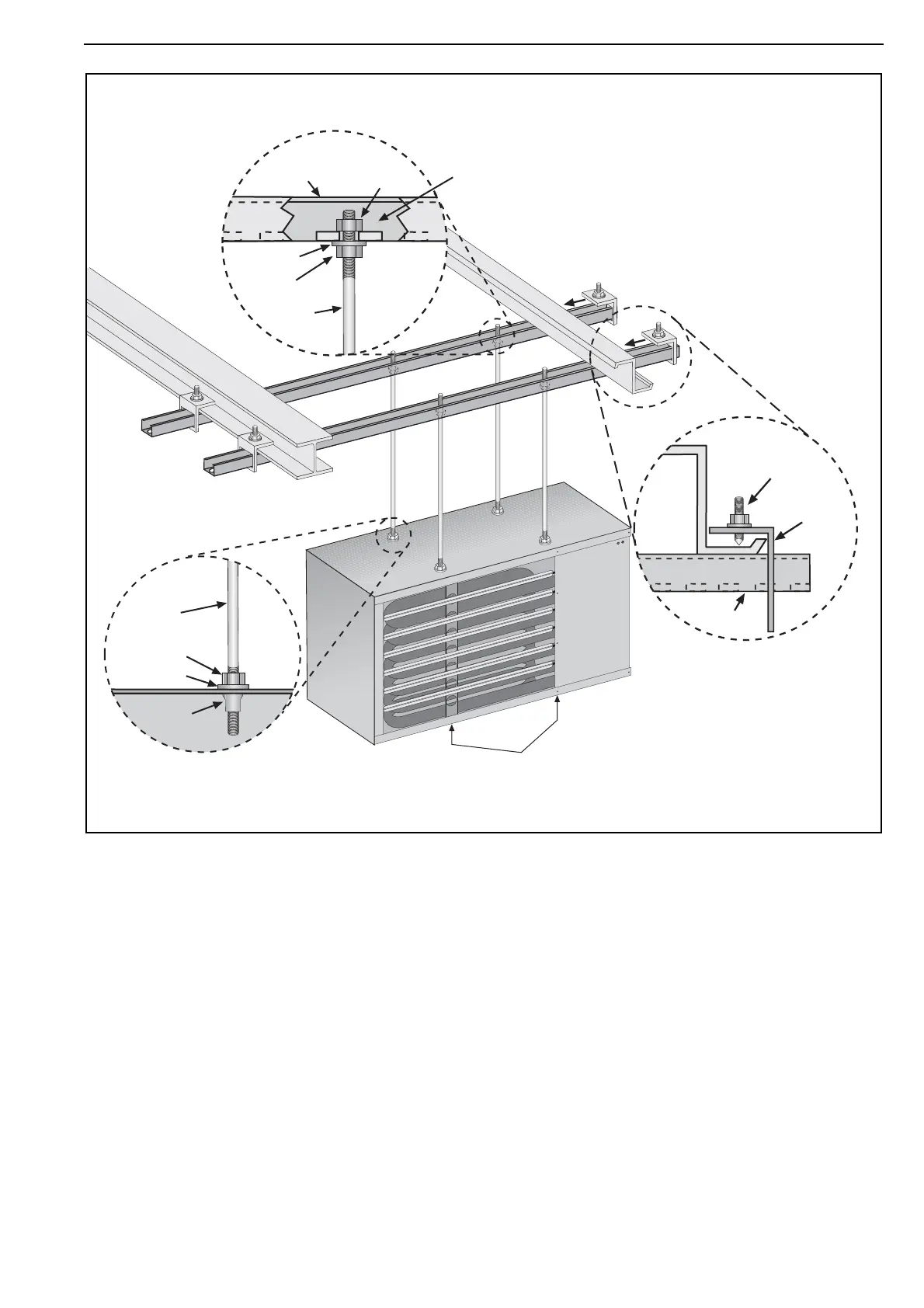

Figure 4: Suspension Methods

10 mm

Steel

Drop Rod

Washer

Nut

Unistrut

Channel Nut

Cone Point

Set Pin

Window

Clamp

Unistrut

10 mm

Steel

Drop Rod

Nut

Washer

Riv

Nut

Support Points

Insure all suspension hardware

is torqued to a minimum

of 27 Nm (20 ft lbs)
