COMBAT CTU-90 - CTUA Wiring Diagram (Models 75-115)

SECTION 11: WIRING AND ELECTRICAL INFORMATION
21 of 46

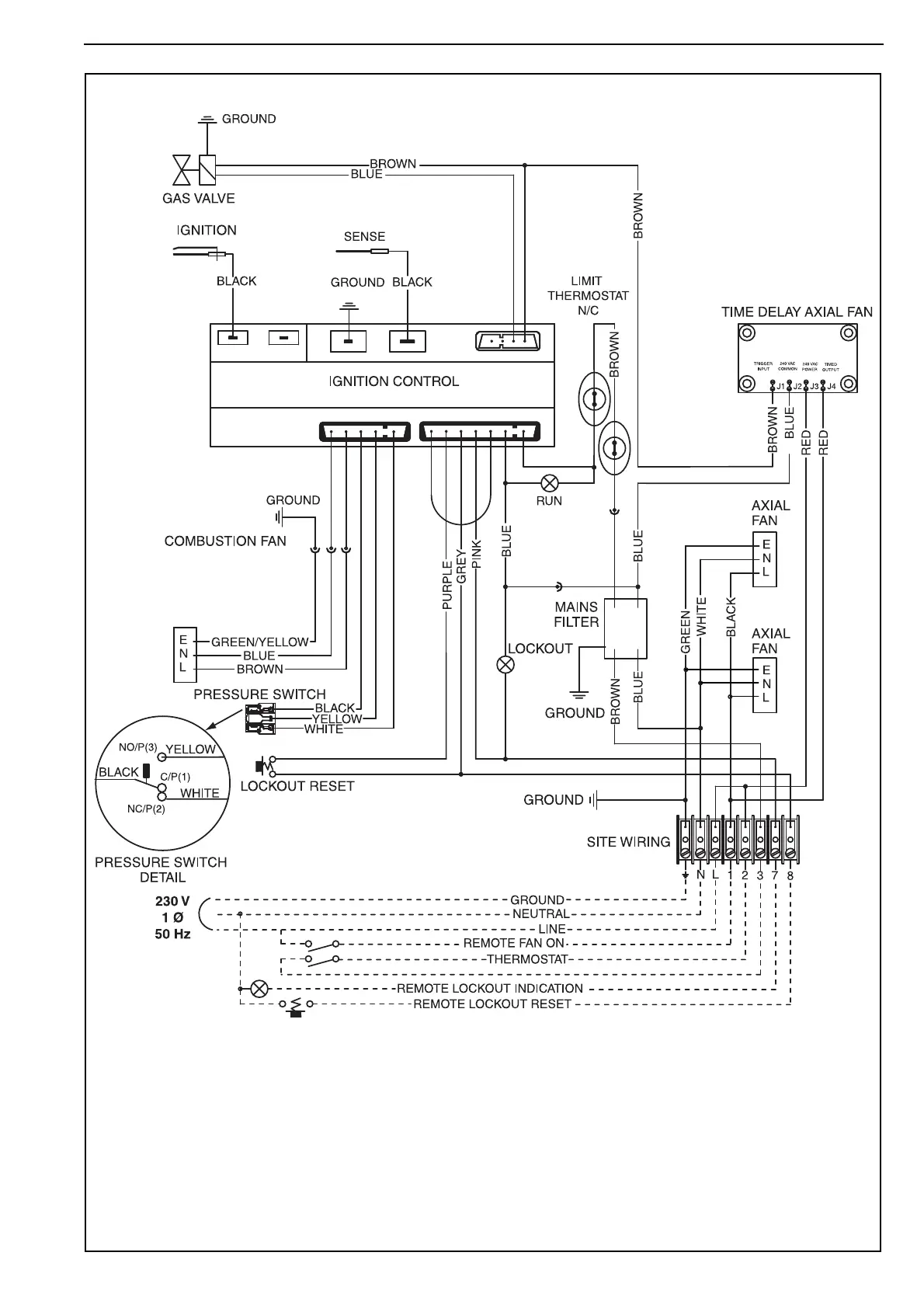

11.3 CTUA Wiring Diagram (Models 75-115)
NOTE:
If any of the original wire supplied with
the heater must be replaced, it must be
replaced with wiring material having a
temperature rating of at least 105° C
and 600 volts.
