Assembly Loading System MkII
28
5.2 Cut four pieces of 18 mm formwork plywood, complying with EN 636-3, to
the format as shown in Figure 23. Place the boards one after another in
the Base, with the notches facing down, leaning against the Formwork
Supports, see Figure 24. The boards shall be placed onto the Bottom
Frame itself and not onto the Bottom Board. Fix the boards to the
Formwork Supports with wooden screws. When all the boards are in
place and they create a box, go to step 6 for mounting of the Top Frame.

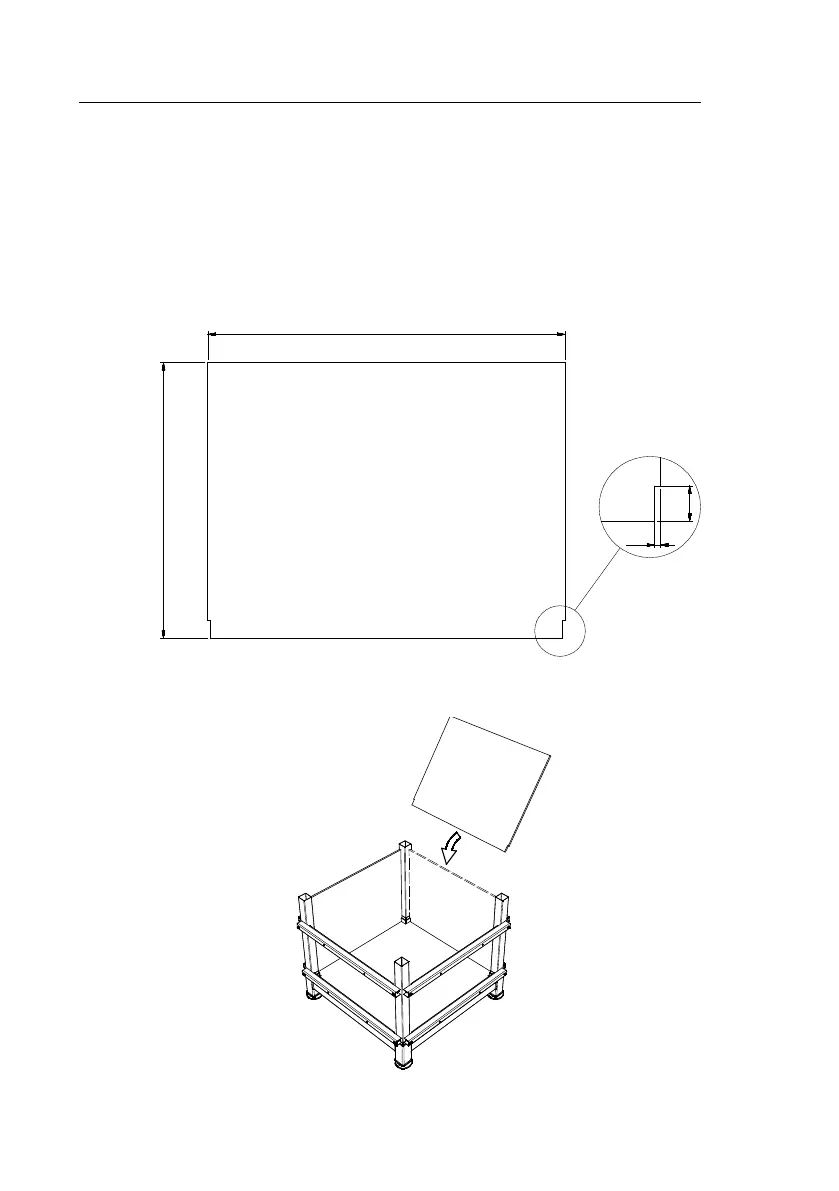

Figure 23. Dimension of the gravel side board. Note that the board has got
notches in both bottom corners.
Figure 24. Placement of the side board units.
