Assembly Loading System MkII
30

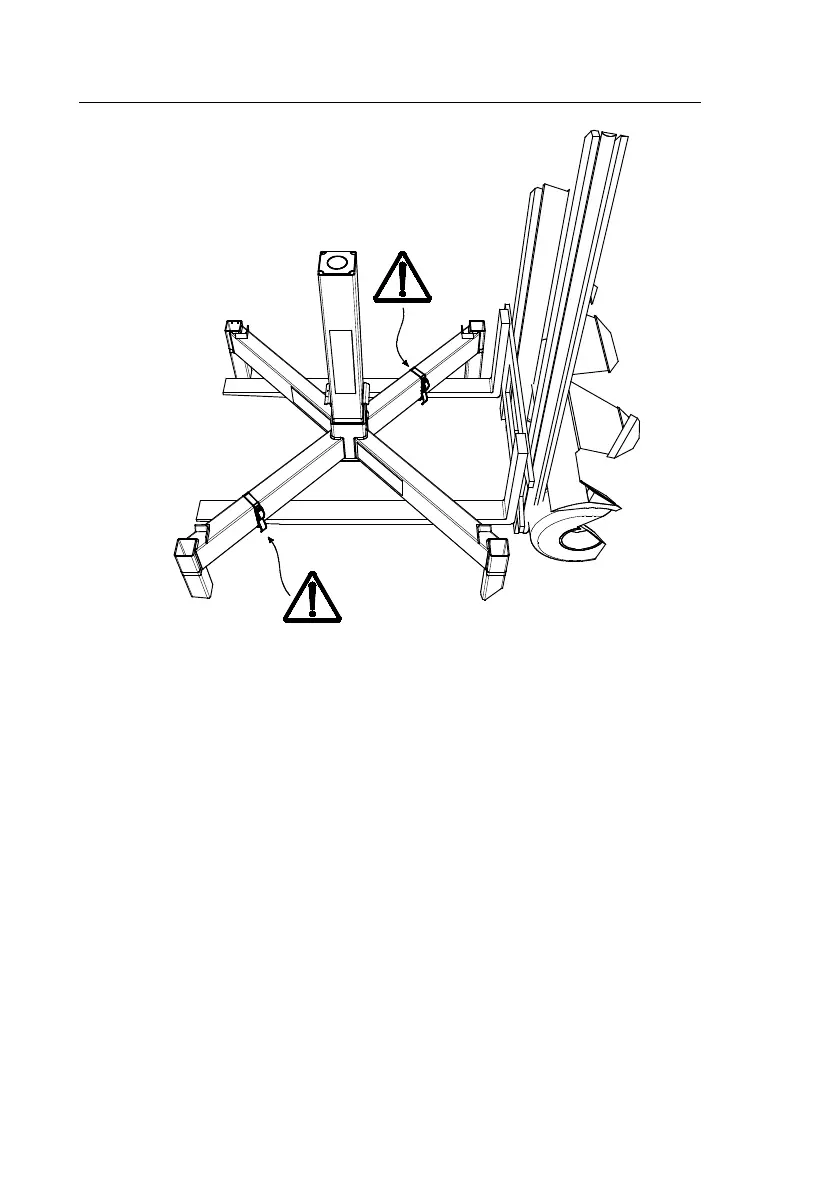

Figure 26. Use the included Combistraps to secure the Top Frame to the
forks prior to lifting.
8. Lift the assembled top unit high enough above the Corner Posts, and
slowly lower the assembly when the four Top Frame Legs can be slotted
into the Corner Posts. If Formwork Supports are bolted to the Corner
Posts, make sure they are not tightened, thus it can prevent the Top
Frame from being inserted in an easy way. Lower the assembly slowly
and make sure it runs smoothly down into the Corner Posts.
Make sure the assembly is inserted the correct length by checking that
the lower edge of Insertion Marking Labels are aligned with upper edge of
Corner Posts, see Figure 27.
With the Top Frame in place, the Formwork Supports can be tightened
firmly, if they are being used.
