Loading System MkII Assembly
31

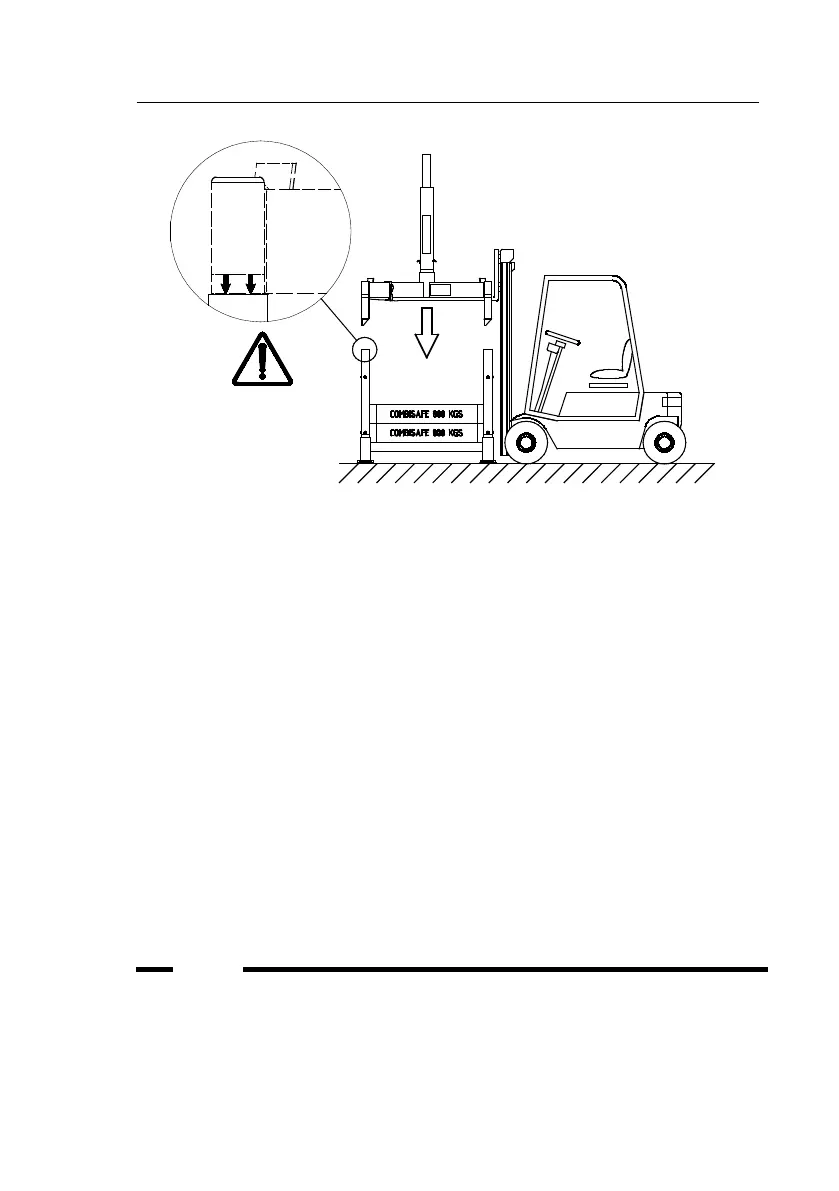

Figure 27. Insertion of Top Frame to Corner Posts. Note the position of
Insertion Marking Label when Top Frame is slotted into the Corner Posts in
the illustration to the left.
Now the Loading System MkII Base is completed as an assembled unit and
equipped with either the Top Column 4.7 or the SkyReach Adaptor 5.9. If
concrete or gravel is preferred as ballast option, or if other ballast option is
chosen please proceed to step 9. If the Precast Kentledge is used as ballast,
please proceed to step 10.
9. If concrete is the chosen ballast option, fill the box in the base with
concrete. Concrete must be distributed evenly on the bottom board.
If gravel is the preferred ballast option, fill the box up with gravel, compact
well and make sure there is no gap in the gravel box to avoid losing
gravel out of the box.
If a non-standard ballast option is chosen, make sure that ballast is
distributed centrally and secured against free movement. The ballast
must be placed inside the unit in between Bottom Frame and Top Frame
at all times when in use.
In all cases ballast must be centred in the unit and its weight must
be minimum 1500kg. Otherwise the safe function of Loading System
MkII is not warranted.
