Assembly Loading System MkII

10. Installation instructions for the SkyReach Anchor

10.1 Mount the SkyReach Anchor from the folded position in four easy steps,

please see Figure 28:

1. Remove the Lock Pin and release the SkyReach Anchor Brace

and Boom.

2. Arrange the position of the Boom.

3. Move the SkyReach Anchor Brace and make sure that the brace

hook bracket (detail A) fits into the lower lugs (detail B).

4. Secure the position from step 3 with the attached Lock Pin as

shown in view C.

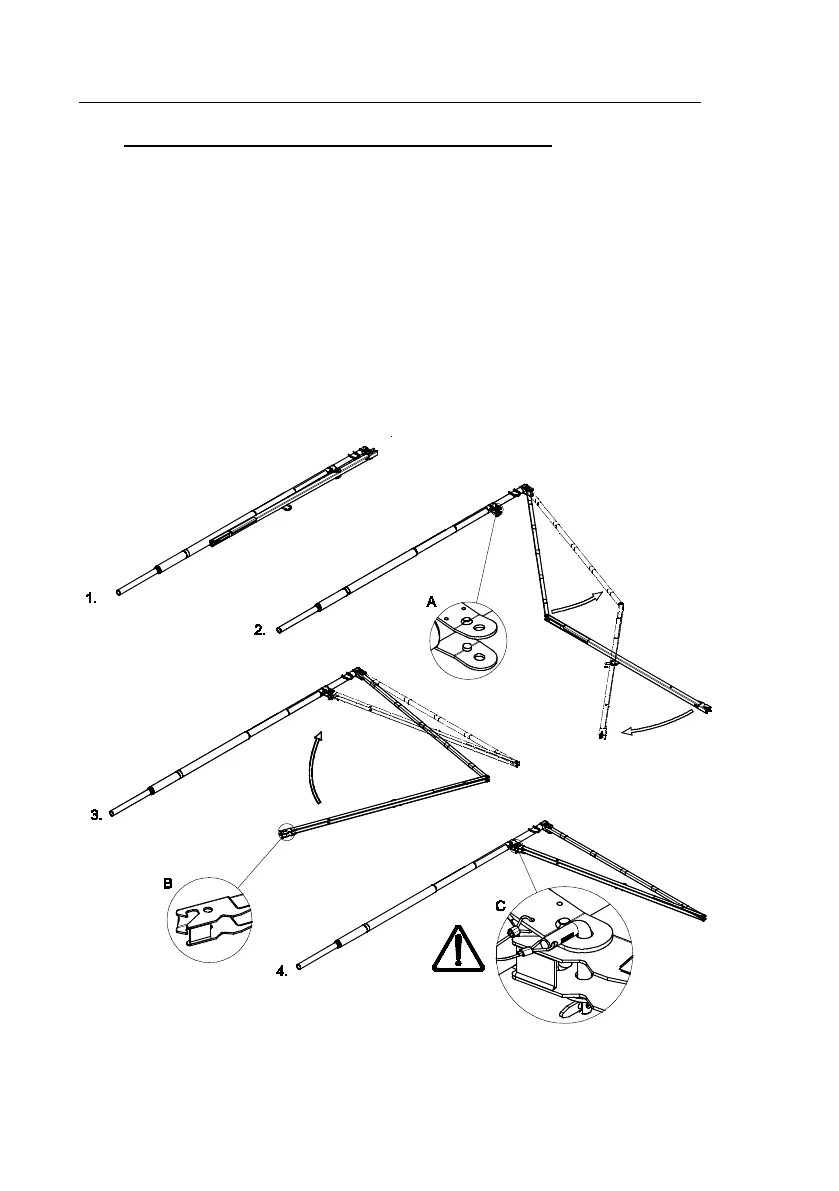

Figure 28. Assembly process of the SkyReach Anchor
