Optional video input converter (EX-VIN)

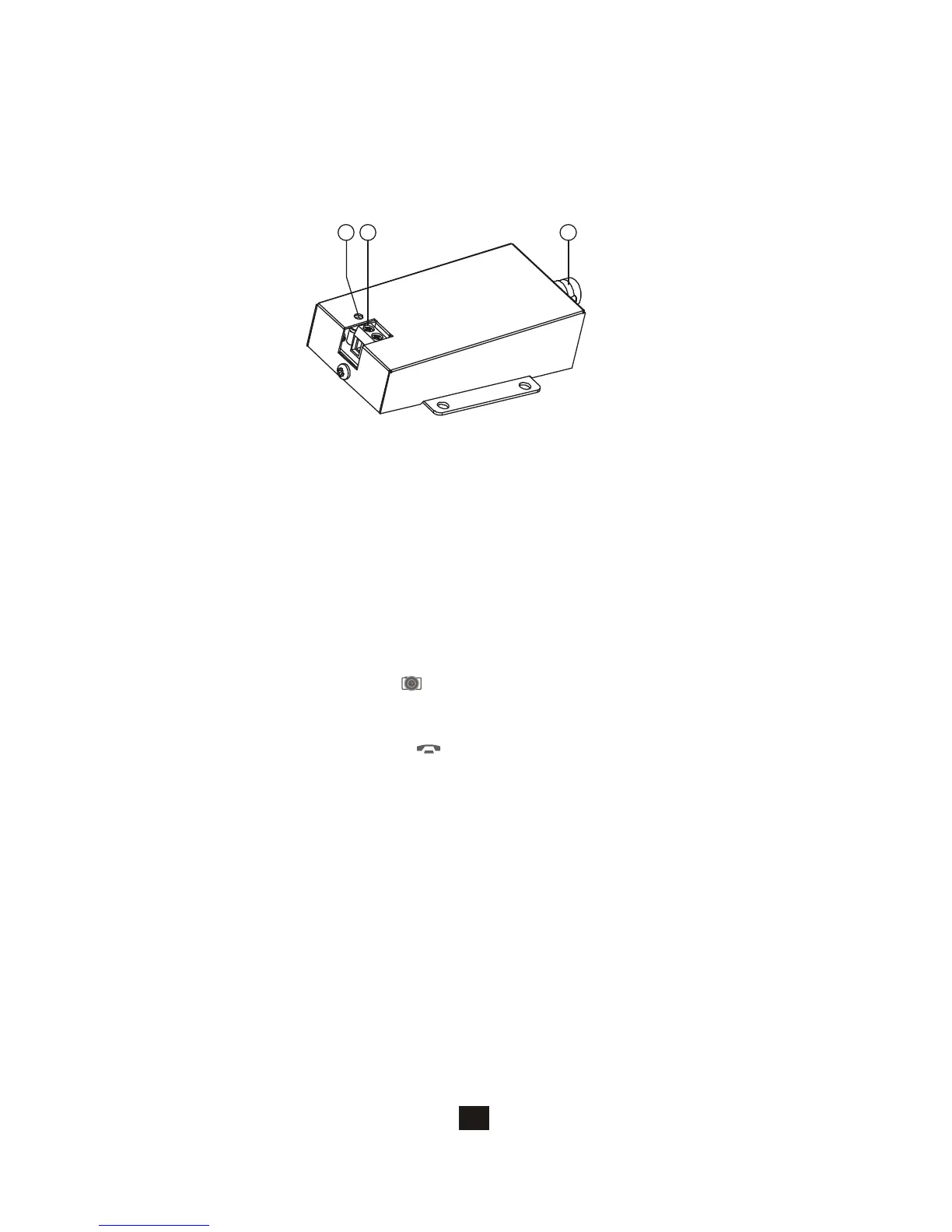

EX-VIN Identification
1.
2.
3.
Power LED
The 2-wire terminals for connecting ot the main monitor
BNC connector for external camera video input
32
9
5.2. EX-VIN Operation
1
AA. EX-VIN converts video signal on the 2-wire transmission format of the
system.
B. Press the monitor button from any monitor to see the camera from
the main door camera, press it again to scroll to the external camera
device connected to the EX-VIN.
C. Pressing the cut-off button to exit the monitoring mode.
* The EX-VIN does not provide power to the external CCTV Camera.
