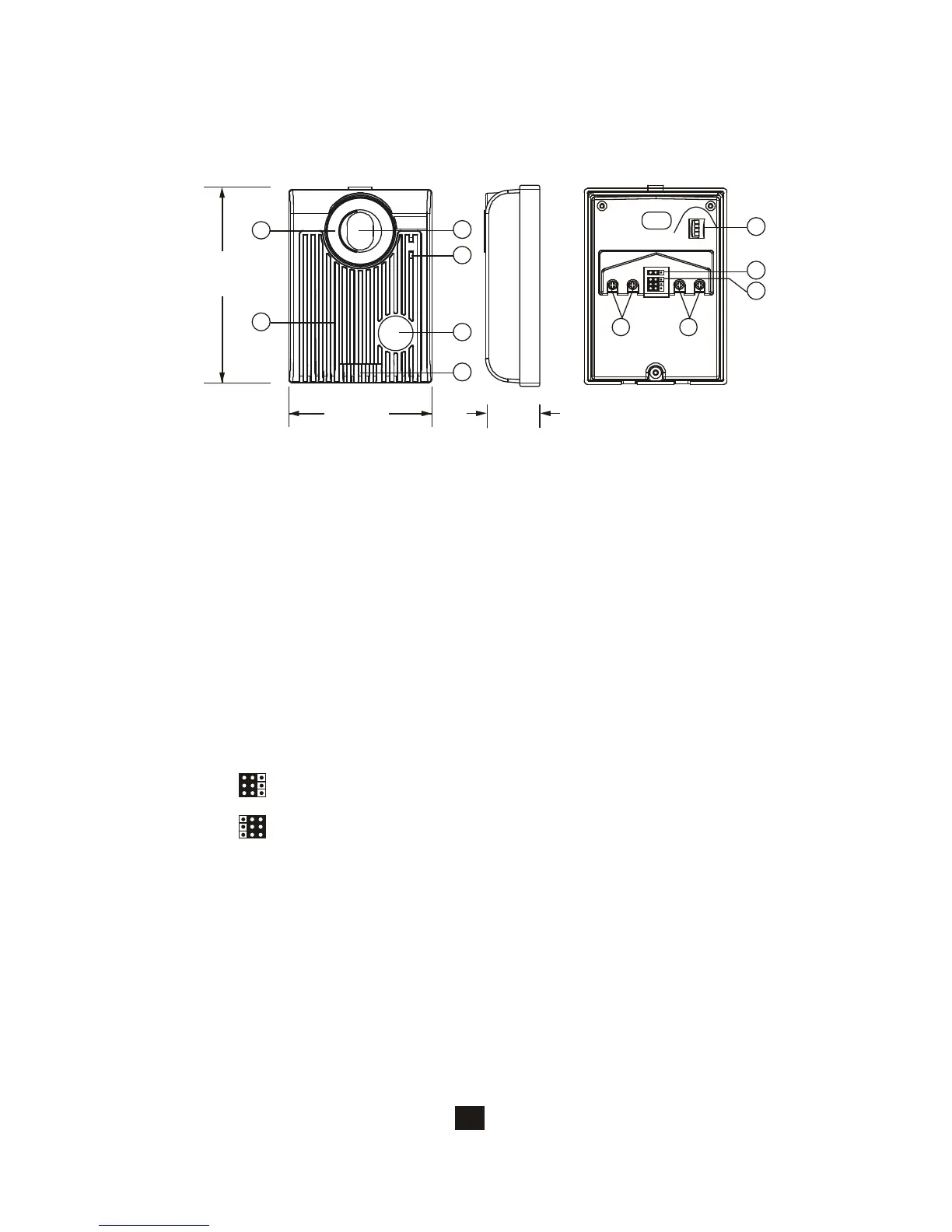

130mm
(5.12)"
36mm
(1.42)"
1. White LED Illumination
2. 1/3" Color CCD
3. Microphone
4. Speaker
5. Call button
6. Screw cover
7.
(-6 degrees, 0 degrees, 8 degrees, 16 degrees)
8. Wire to door strike
9. Wire to main Monitor
10.
11.
CCD vertical view angle adjustment dial
JP 2 (automatic LED light supplement option)
JP1, lock control output option and CCD on/off during the output
98mm
(3.86)"
2
3
5
4
6
1
3
JP1
JP2
1 2 3 4
10
11
7
8 9
[Door Station]
N.O. dry contact output; CCD on. (default) (24VDC/1A
bypass current)
12VDC/300mA current output; CCD off to. (to save power)
2.1.2. HFX-700M or EX-700D Door Camera identification
