7.
7.1.
Metal door camera housing (EX-700V) installation

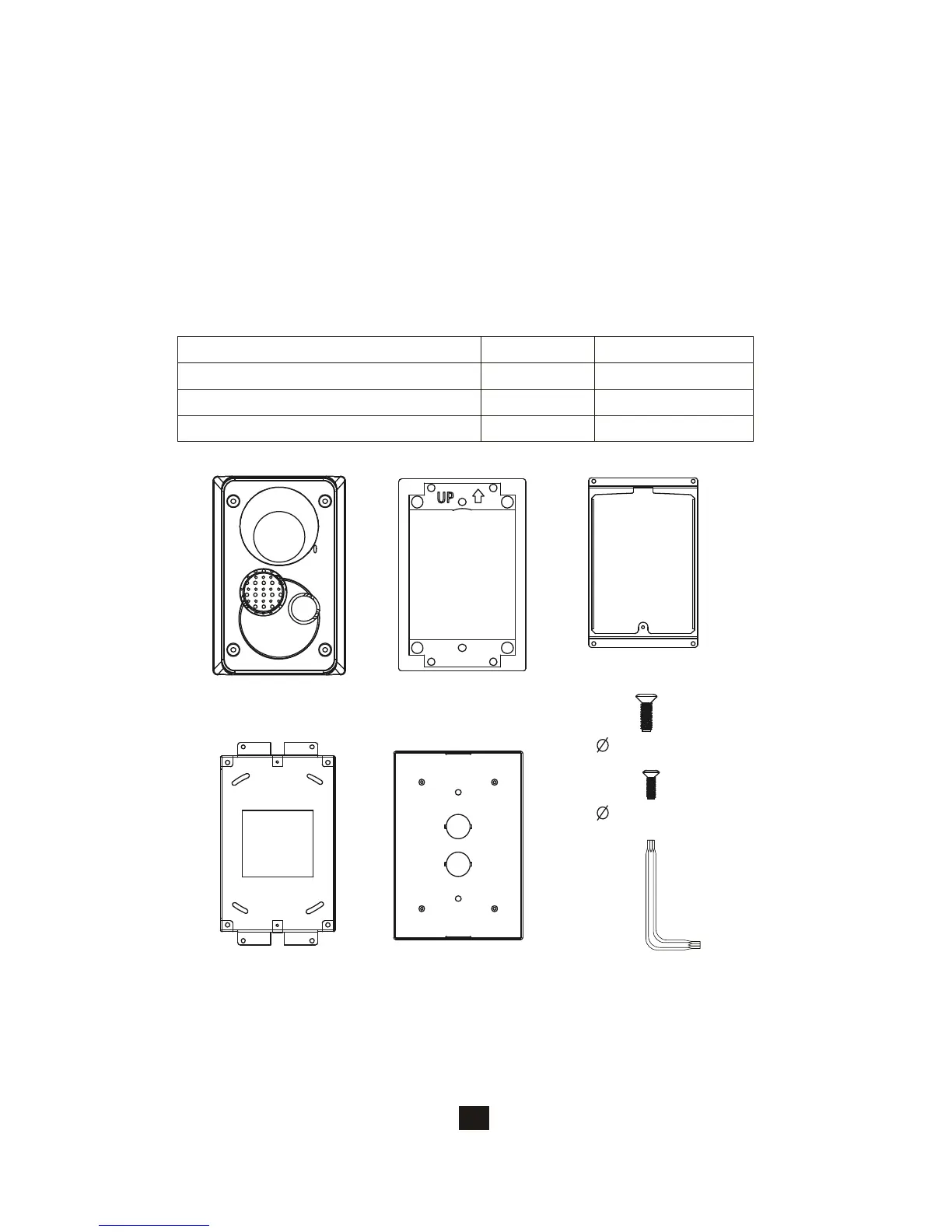

Examine package contents
23
Bracket 1
Rubber seal
Front panel
x1
x1
x1
x1
x1
x4
x6
x1
Bracket 2 Embed box
4.5 x10mm Screw
3.0 x6mm Screw
Screw wrench
Measurements
Wooden wall (cut open size)
Cement or brick wall (cut open size)
Front panel (outlook)
100x150x41
114x165x49
120x180x7
Unit:mm Unit:inch
3.94x5.91x1.62
4.49x6.50x1.93
4.72
"""
"""
"x7.08"x0.28"
A. Examine the following contents of the package.
B. EX-700V is an optional housing assembly kit to enclose EX-700D to
become flush mount metal doorbell camera.
C. C. Depending on different wall materials, please be careful to cut the
hole according to the measurements below to fit the flush mount
bracket for the EX-700V.
