3. Expansion Video Monitor (EX-700H)

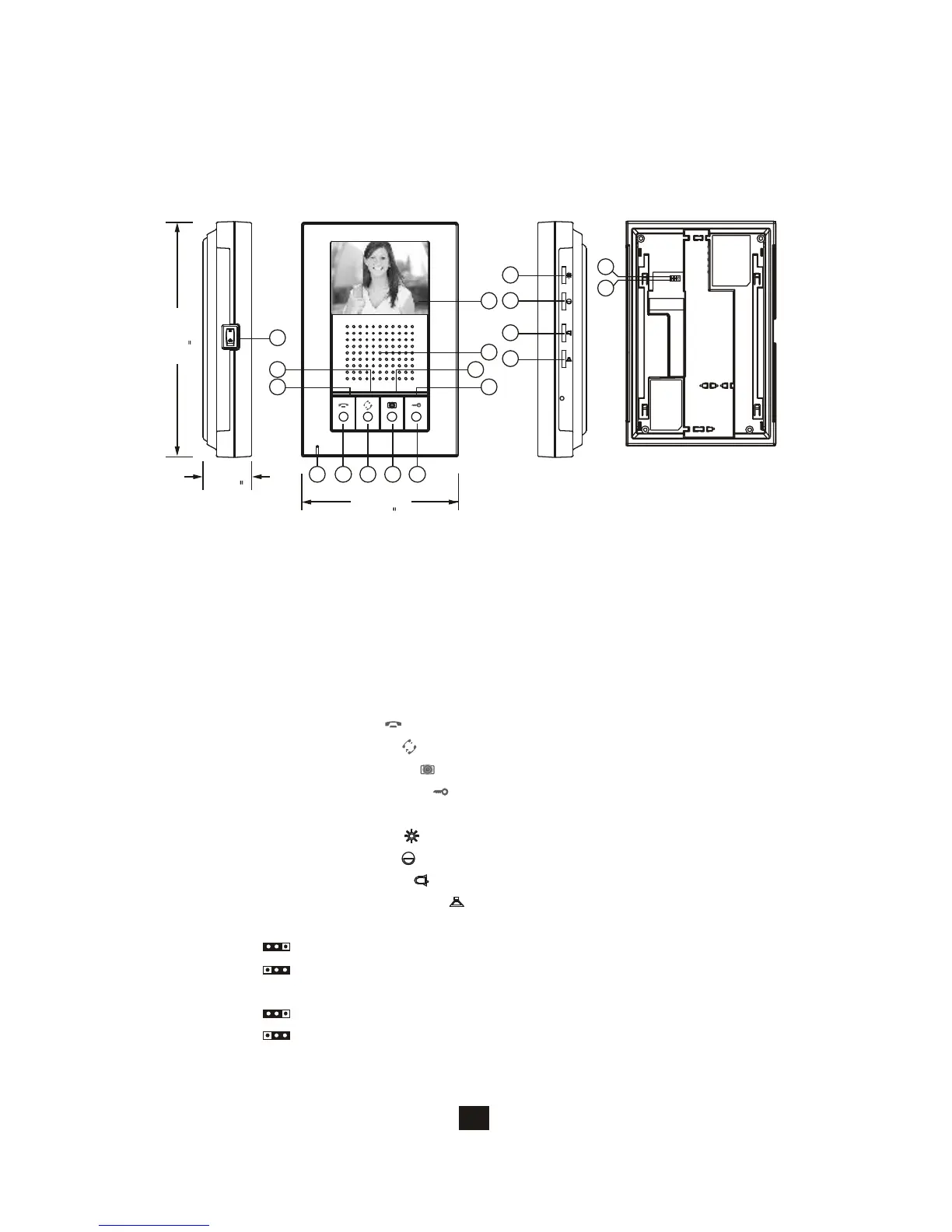

3.1. EX-700H Identification
2
8 9 10 117
3
4
6
5
12
13
14
15
16
178mm
(7.0)
36mm
(1.42)
118mm
(4.65)
1. 3.5" Color TFT Screen
2. Speaker
3. In use LED
4. Monitor LED
5. Intercom LED
6.
7. Microphone
8. Cut-off button( )
9. Intercom button( )
10. Monitoring button( )
11. Door release button( )
12. Power switch
13. Brightness tuner( )
14. Sharpness tuner( )
15. Bell Volume tuner( )
16. Speaker Volume tuner( )
17.
18.
Communication LED
JP1, video display option during door release operation
Enable video display (JP1 left) (default)
Disable video display (JP1 right)
JP2, door status report option
Bell tone indication (JP2 left) (default)
LED light on Door Open Button (JP2 right)
5
[EX-700H]
1
17
18
