Comelit HFX-700M KIT - Expansion Audio Monitor(EX-700 A) Installation; Examine Package Contents; Install Expansion Audio Monitor

A. Fasten the wall mount bracket using the provided hardware.
B.Fasten wires on terminals accordingly. (Refer to 5.3)
C. Select jumpers for desired function (Refer to 5.4).
D. Plug-in pin wires and mount the monitor unit on bracket.
20

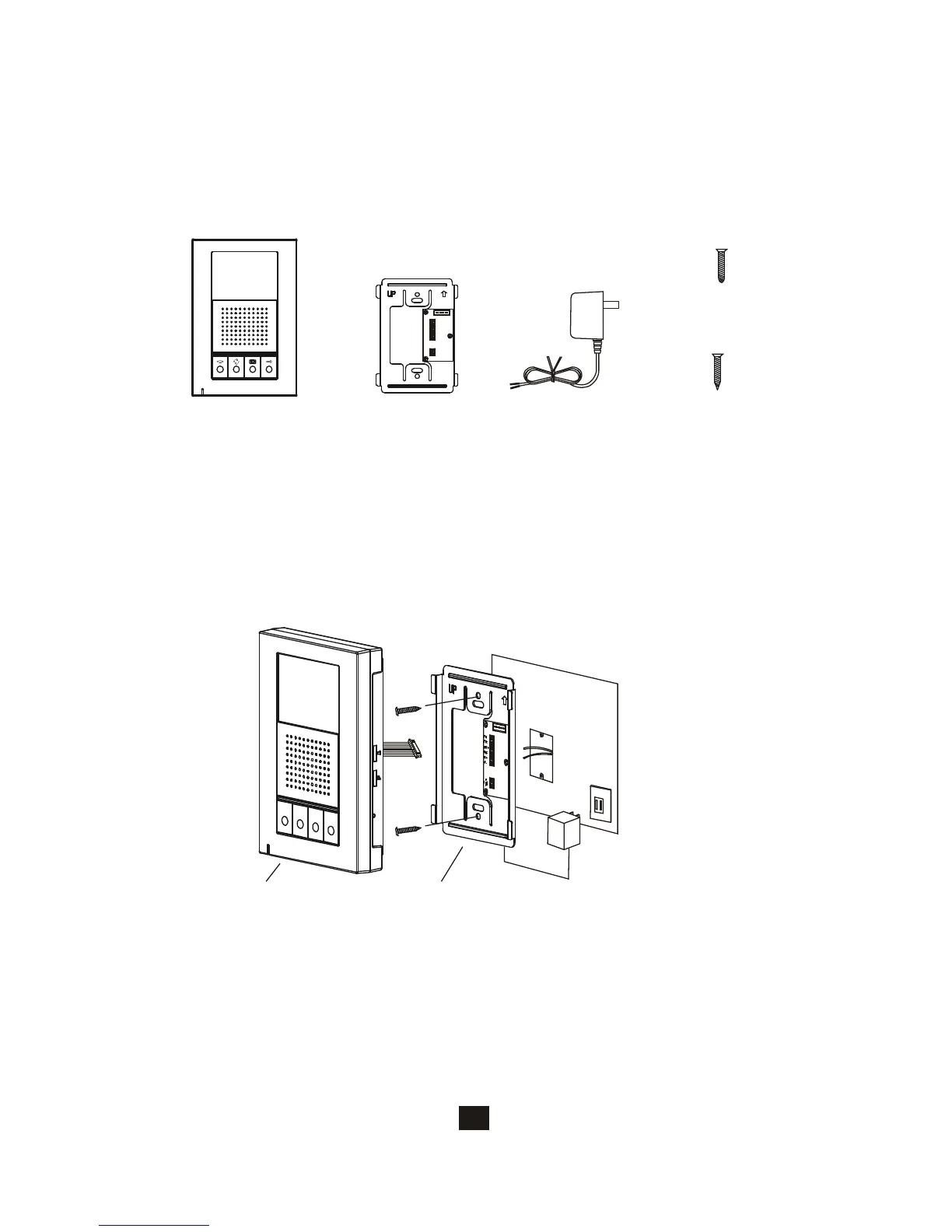

5.2. Install expansion audio monitor
Do not plug power
at this stage.
Wall mount bracketMonitor
5. Expansion audio monitor(EX-700A) Installation
5.1. Examine package contents
NOTE: Examine the following contents of the package.
Adaptor
X1
X1
Wall mount bracket
PT1
PT2
IN+
IN-
OUT+
OUT-
POWER
<+>
<->
X1
Expansion
non-video monitor
X2
White wall
mount screws
X2
Flat head screws
