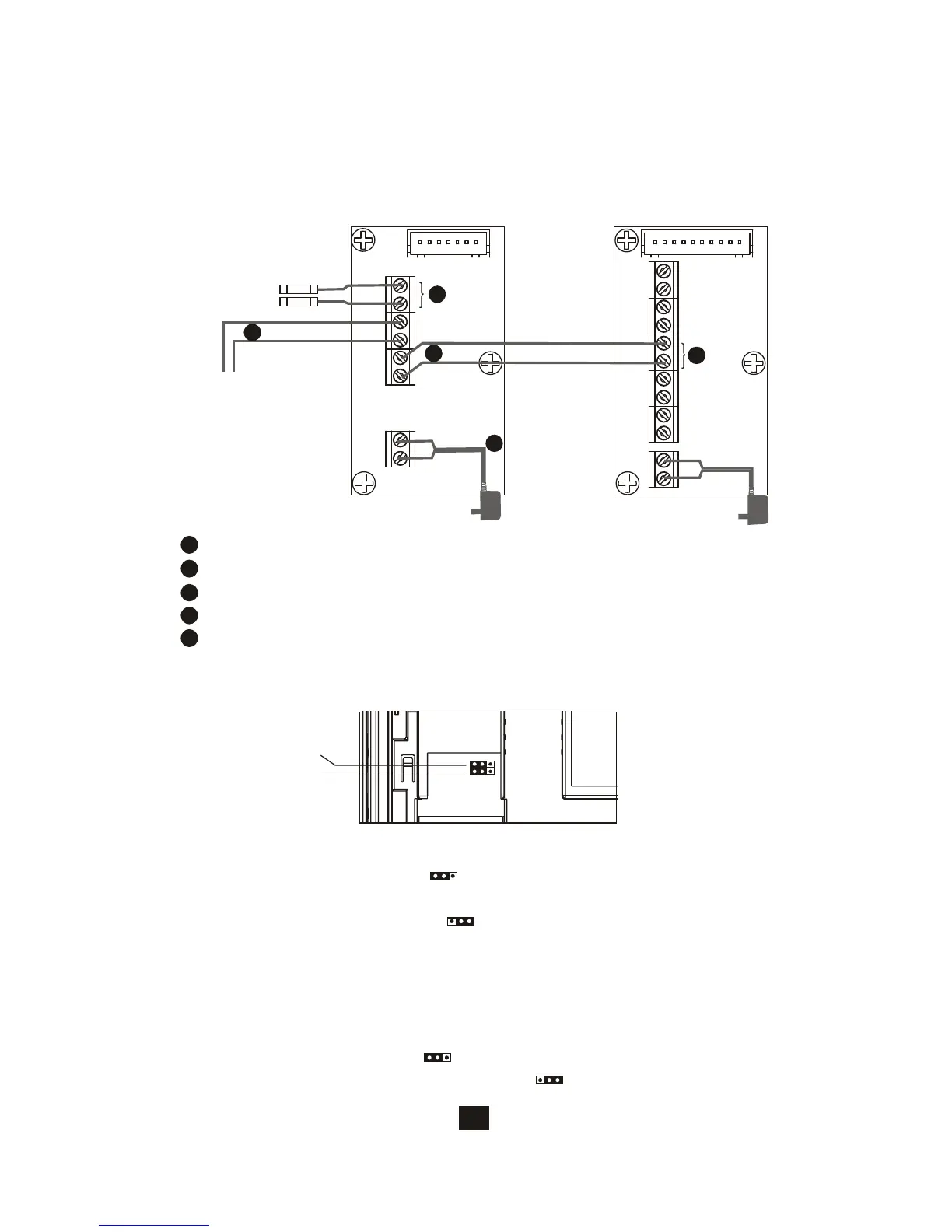

4.3. EX-700H wiring and setting
PT1
PT2
DG1
DG2
OUT+
OUT-
DR2
DR1
POWER
<+>
<->
Main monitor
Wiring terminal
Red
Black
A.Wire the system from terminal to terminal accordingly.
1
Terminals for expansion monitor (w/polarity)
Terminals from previous monitor (w/polarity)
Terminals for next monitor (w/polarity)
Terminals for power adapter
Connect to a N.C. magnetic switch sensor for door status detection.
1
2
PT1
PT2
IN+
IN-
OUT+
OUT-
POWER
<+>
<->
Expansion monitor
wiring terminal
Red
Black
To next
expansion monitor
3
4
5
Magnetic
switch
2
3
4
5
4.4. Jumper function on EX-700H
19
JP1
JP2
4.4.2. JP2, door status report options
4.4.1. JP1, video display option during door release operation
A.Enable video display (JP1 left ) (default) if door release is dry contact
output.
B.Disable video display (JP1 right ) if door release is 12VDC/300mA
direct current output
A.PT1/PT2 connect a N.C. switch sensor to detect door status and react as
JP2 options
B. Bell tone indication (JP2 left ) (default)
C. LED light on Door Open Button (JP2 right )
