Mount the Fiber CAP L

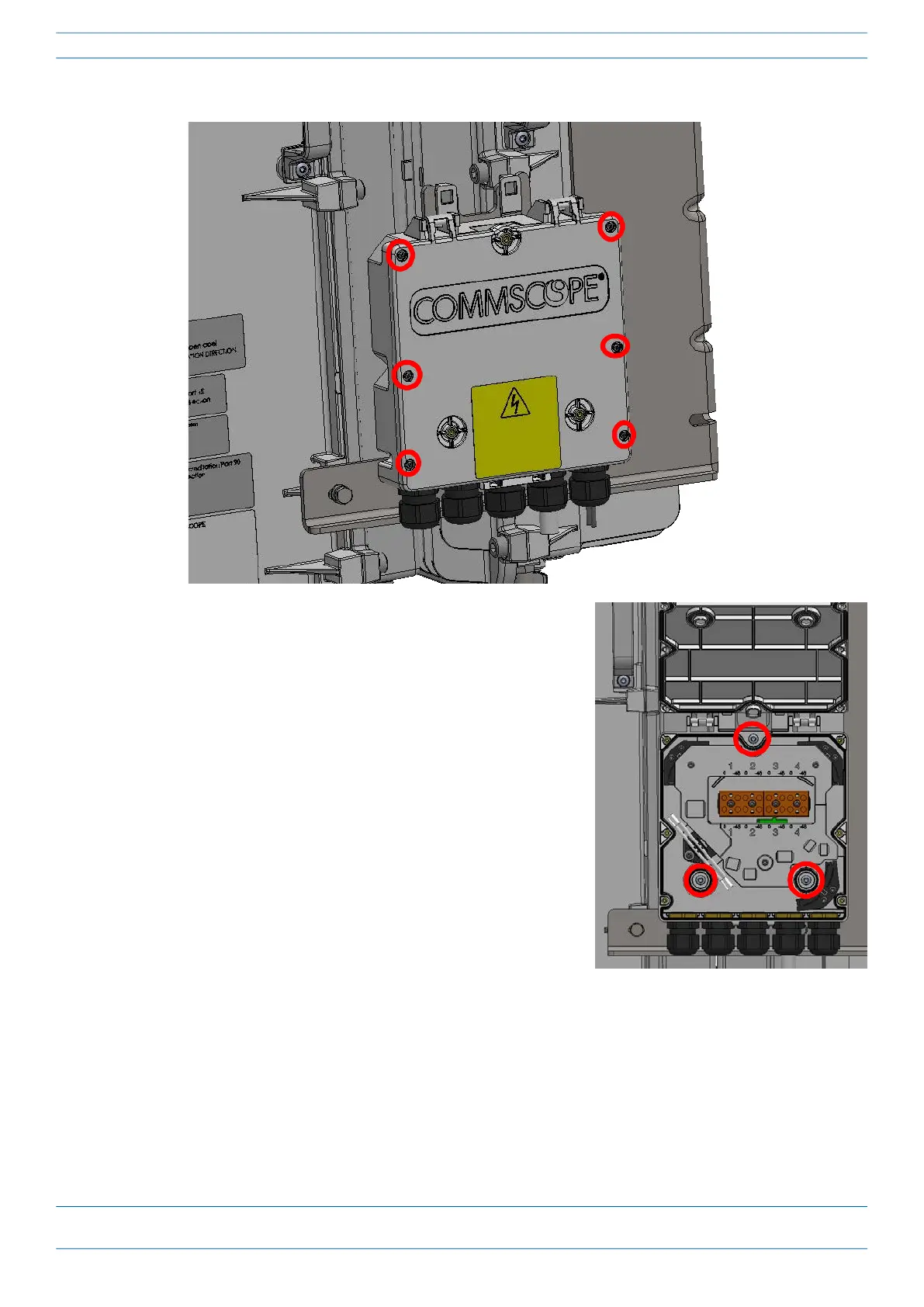

2 After you have wired the Hybrid Fiber Splice box, complete the steps in "Wall Mount a CAP L Using a CAP L
Hybrid Fiber Splice Box Kit” on page 52.
Wire a Hybrid Fiber Splice Box to Cascade Two CAP Ls with the 2-Wire Power
Configuration

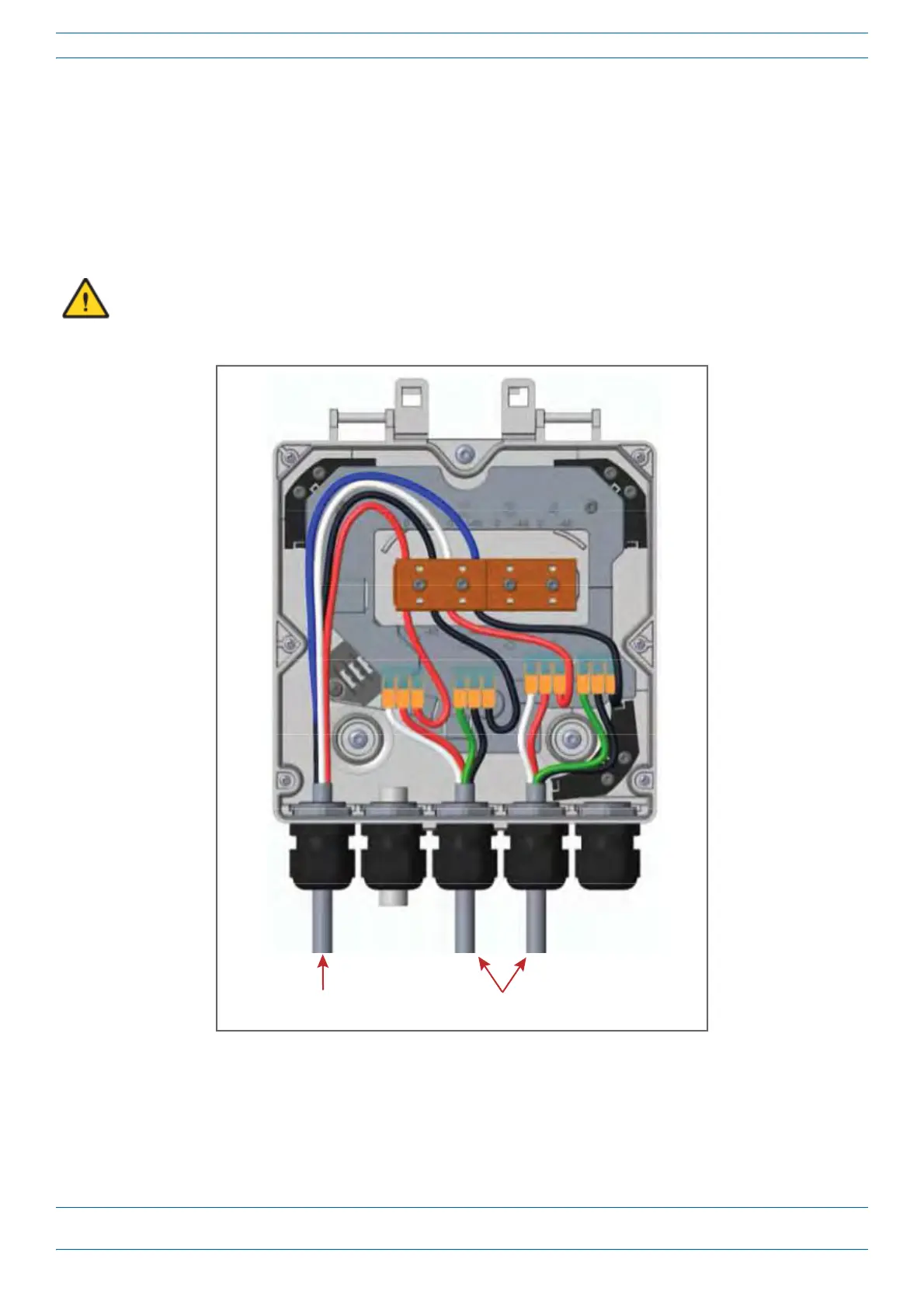

Figure 21 shows a variation of the 2-Wire power configuration that allows you to cascade two CAP Ls using a
single 4-wire hybrid cable.
All four pins of the proprietary CAP L 4-pin 36 to 60 Vdc Power connector must be terminated.
Hybrid Fiber/Composite cable One wire each for the Main and
Secondary CAP L in the cascade
Figure 21. Wiring a Hybrid Fiber Splice Box to Cascade Two CAP Ls in a 2-Wire Power Configuration
