CommScope Instruction Guide
860647713, Rev B, V.05
Page 22
38 Pages
► 760242250 – Setting Upper and Lower Mounting Bracket Positions
Use the guidelines in Figure 31, Figure 32, and Figure 35 to horizontally position pole mount, upper, and
lower mounting brackets on an eight-inch pole. You may also vertically position the pole mount brackets
on poles larger than eight inches per Figure 33.

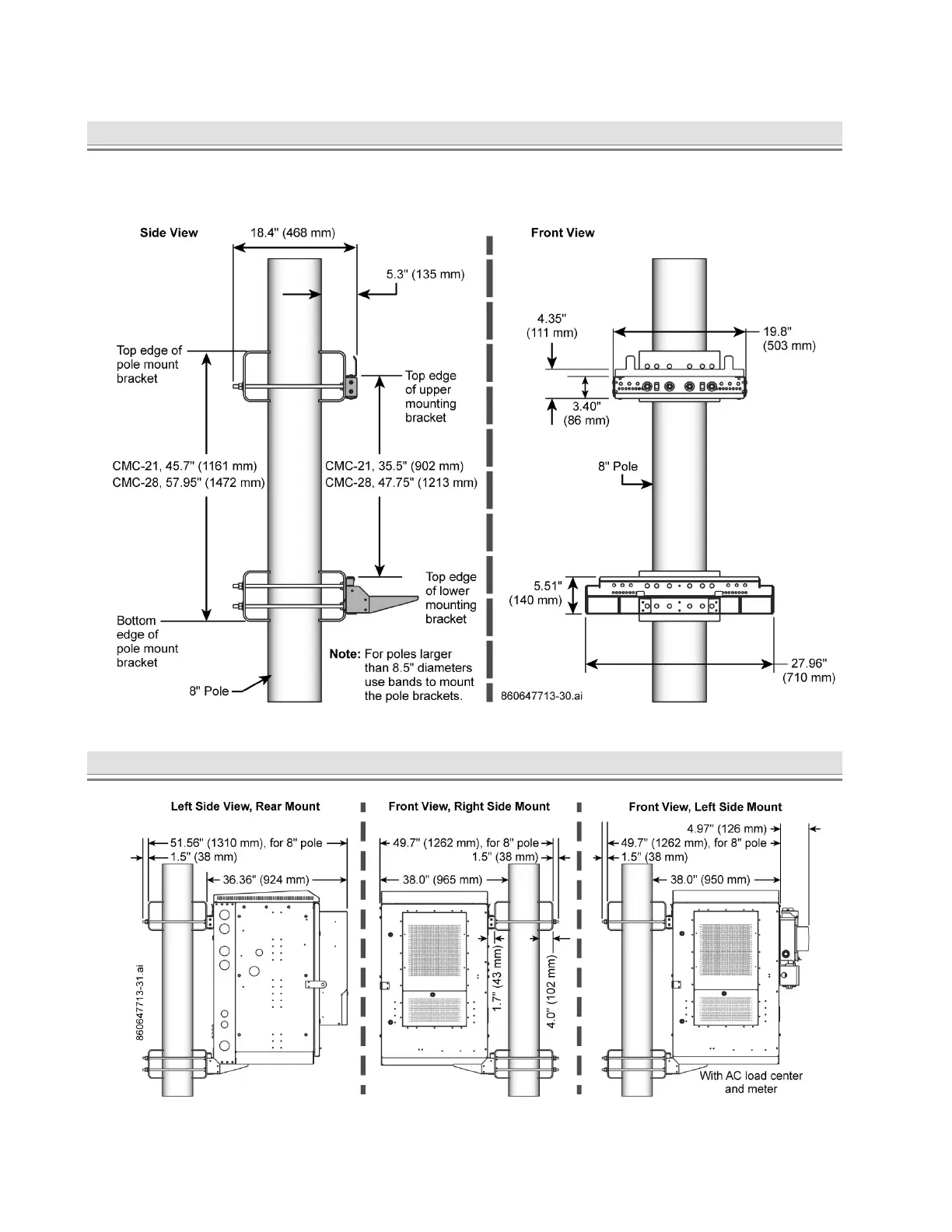

Figure 31. Pole Mount Bracket Positions for CMC-21/28/35 Cabinets, 8-Inch Pole
► Pole Mount Kit 760242250 – Pole Mount Clearances, 8-Inch
Figure 32. Cabinet with HX Door, Installation onto Pole; Rear, Right and Left Side
