CAP M2 with Fiber Interface
© August 2022 CommScope, Inc. Page 15
Plan and Prepare for a Fiber CAP M2 Installation
CAP M2 Dimensions
Use the dimensions shown in the section applicable to this installation to determine the space required at the
mounting site.

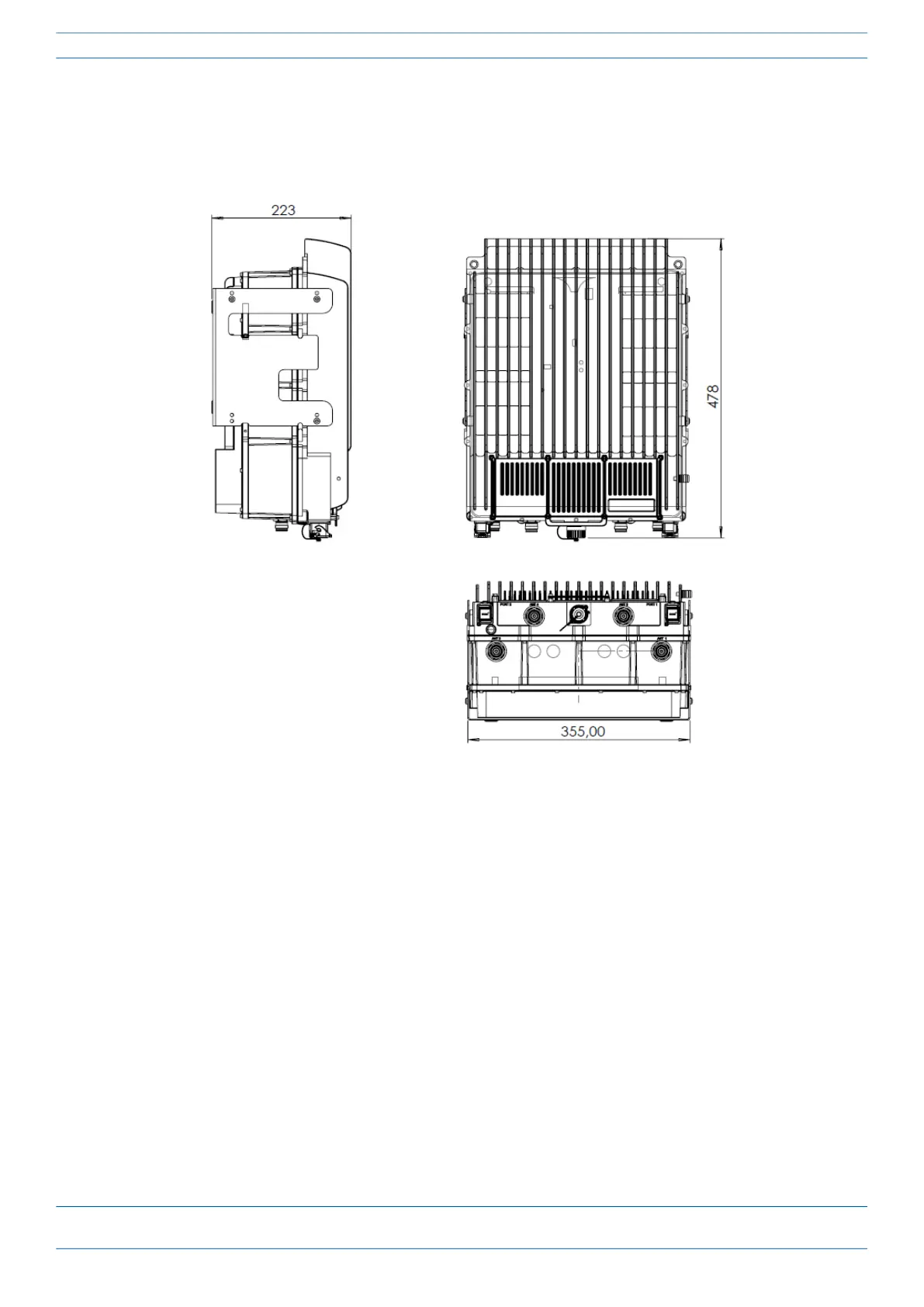

Figure 4. CAP M2 Mounting Dimensions
CAP CAP M2 Weights
Use the weights listed in Table 10 to determine a site that can bear the weight of the Fiber CAP L that is being
installed, where:
• The “Maximum Lift Weight” is the highest weight that must be lifted during installation. (An installer only
needs to lift CAP M2 components at one time, not the wholly configured CAP M2.)
• The “Total Hanging Weight” is the weight of the CAP M2, including the weight of the Mounting Bracket
and Power Supply, minus the weight of the external cables and connectors, that the mounting site must
be able to support.
