CAP M2 with Fiber Interface M0203AHA_uc
Page 38 © August 2022 CommScope, Inc.
Powering on a Fiber CAP M 2
connect to the AC power source. A 10 m (33.7 ft) AC power cable is also available as an option. The AC power
cables for US and EU are shown in Figure 6 and Figure 7 respectively.

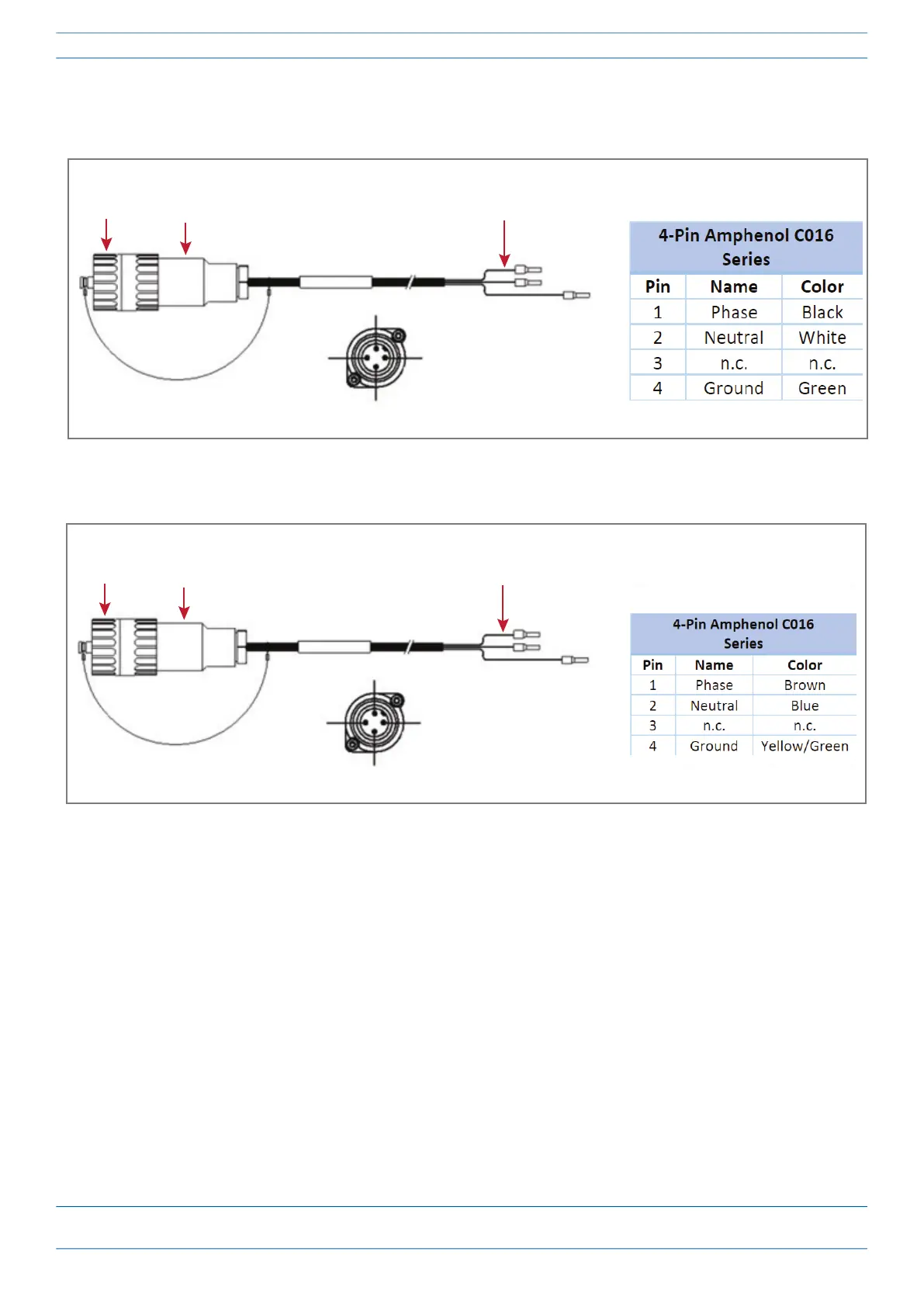

Figure 6. CAP M2 AC Power Cable US
Figure 7. CAP M2 AC Power Cable EMEA
CAP M2 DC Power Cable
The standard CAP M2 DC power cable is a 3.2 m (10.5 ft) 13 AWG cable with a 4-pin Amphenol C016 series
plug on one end to connect to the CAP M2 Mains connector. The other end of the cable is unterminated with
2 end splices to connect to the -48 Vdc power source. The standard DC power cable is shown in
Protecve
cap
1
2
3
4
Mains
connector
Black
White
Green
Amphenol
4-Pin female
connector
3x
end splice
Protecve
cap
1
2
3
4
Mains
connector
Blue
Brown
Yellow/Green
Amphenol
4-Pin female
connector
3x
end splice
