ComNav G2 & G2B Installation & Operation
Document PN 29010093 V1.5 - 23 -
16 December 2016
Location & Orientation
There are two primary mounting orientations for the G2:
• Normally, the G2 will be mounted so that the longitudinal axis is aligned with
vessel’s fore-aft centreline, or is parallel to that centreline. In this orientation, the
G2 can output both the Heading and the Pitch of the vessel.

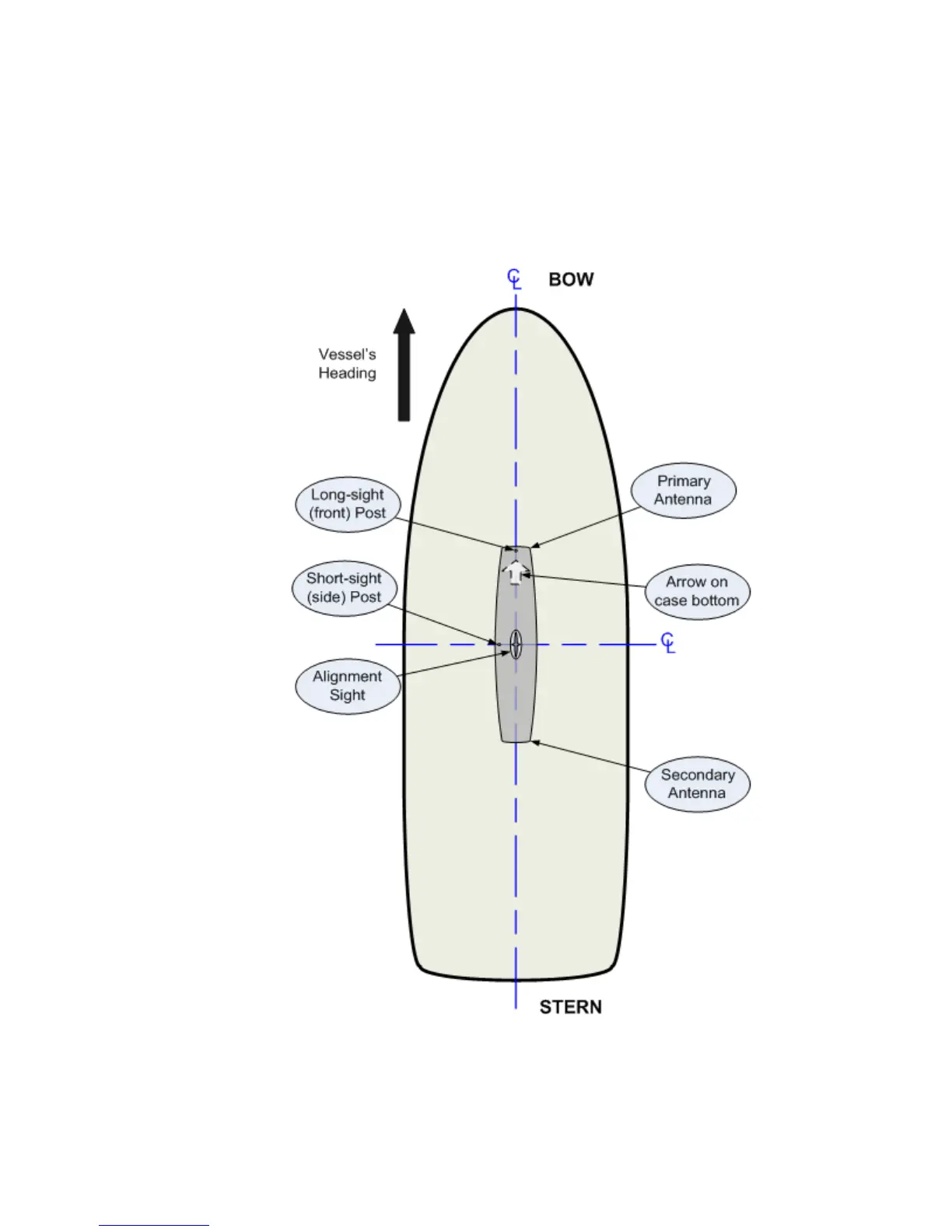

Figure 7 – Heading & Pitch Installation (viewed from above). Heading bias
is 0°
°°
° at this orientation
