ComNav G2 & G2B Installation & Operation
Document PN 29010093 V1.5 - 33 -
16 December 2016

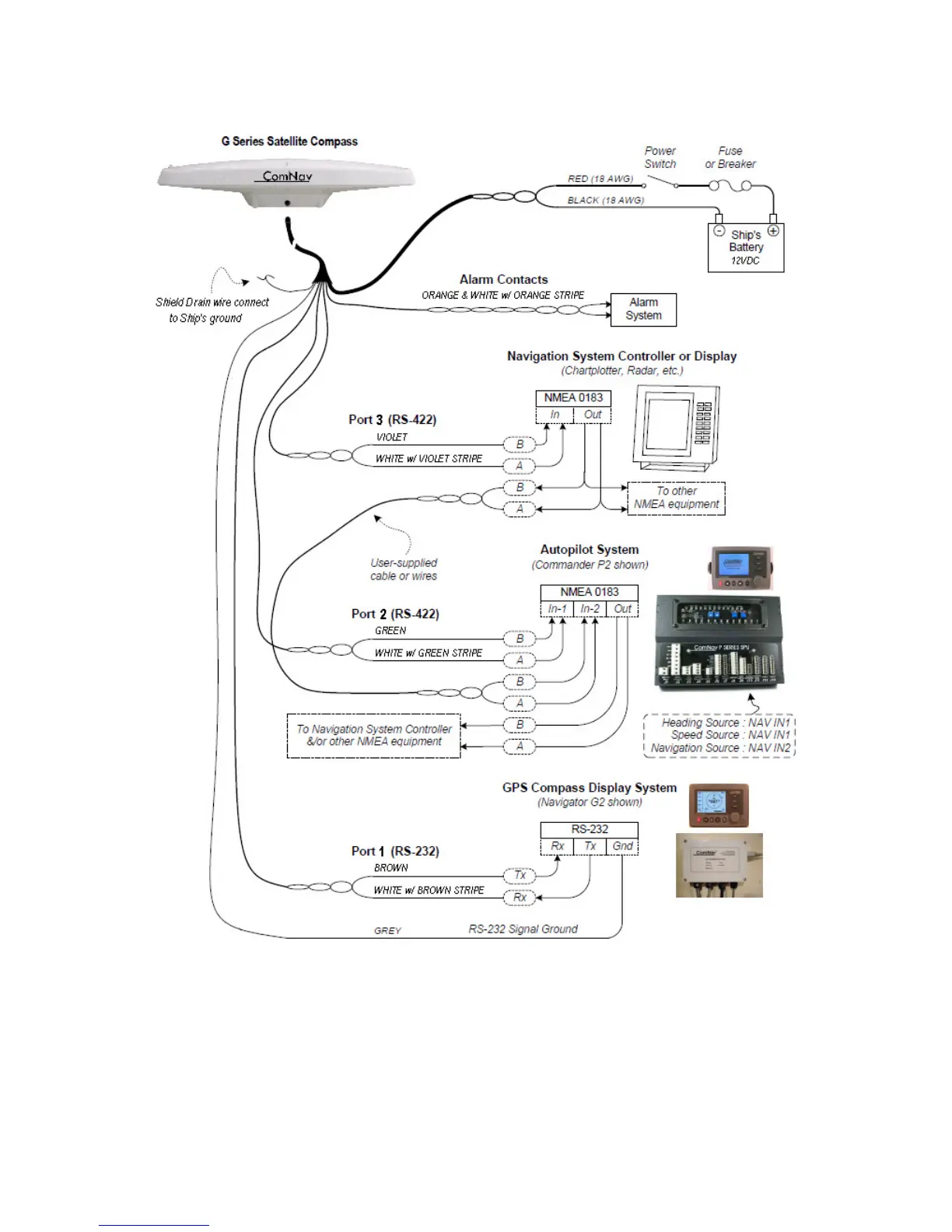

Figure 14 - Typical Wiring Diagram of a G2 System with Autopilot and Compass Display
