3.19. Test menu
You can enter the Test menu by simultaneously pressing the Up and Down
keys for at least 3 seconds.
The trigger time of the feedback contacts is measured and displayed here.
For this purpose, relays K1 and K2 are switched to the trigger position and
the total time required by the auxiliary contacts H1 and H2 for the change-
over is measured.
The prerequisite is that relays K1 and K2 were previously in the OK state,
otherwise the measured time will be 0 s.

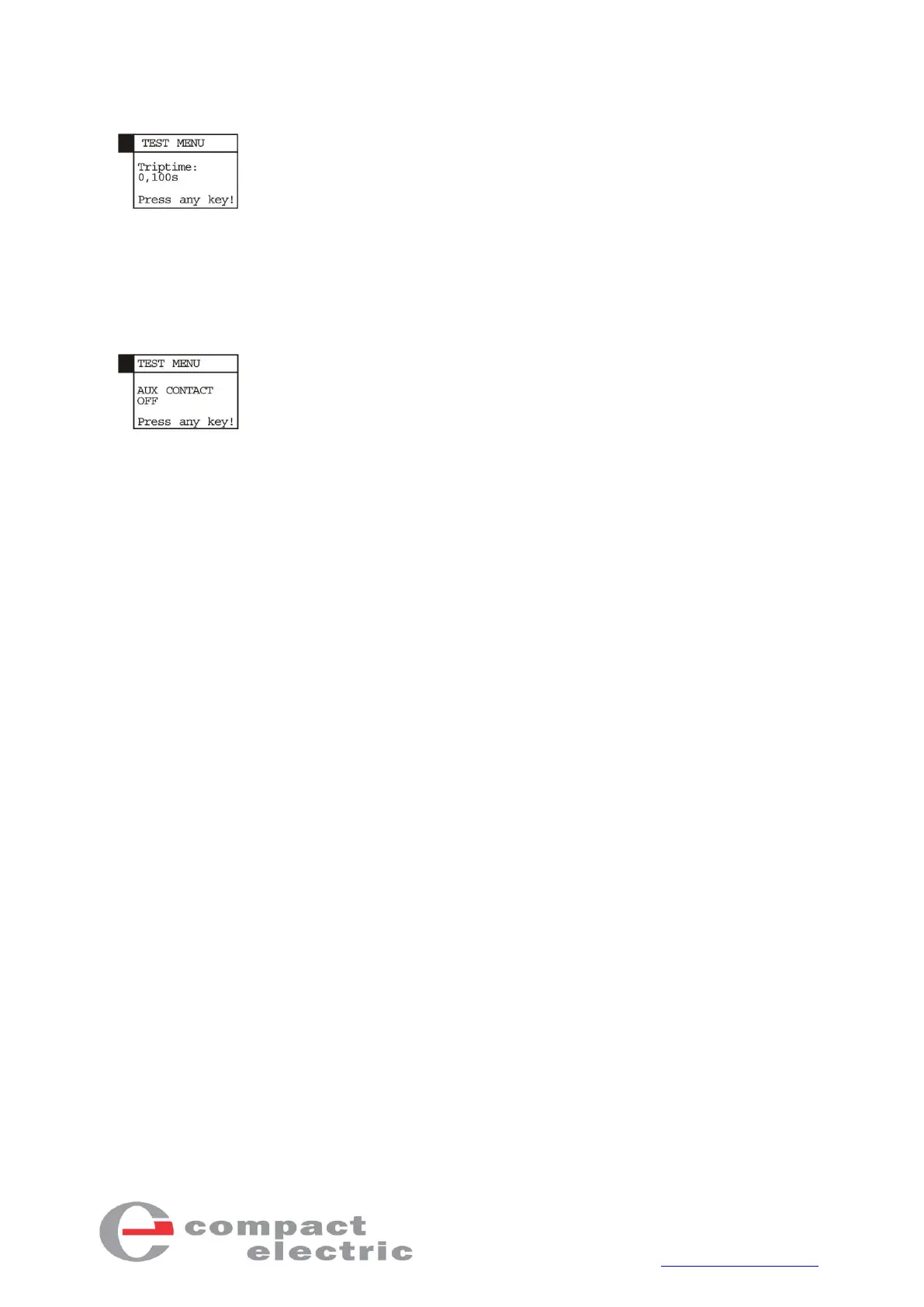

If the auxiliary contacts are deactivated, the “Auxiliary contact off” mes-
sage is shown on the display. Relays K1 and K2 still switch to the trigger
position.
Press any key to return to the normal mode.
