1.3. Specifications
Technical data
Measurement
Relay (see figure 1 for the load limit curve)
Nominal voltage U
N
400 V / 230 V / 100 V / 57 V
Maximum switching capacity
1250 VA / 150 W
Measuring range U
M
40 V - 300 V (L-N)
70 V - 520 V (L-L)
Maximum switch voltage
250V AC / 125V DC
Overload resistance U
L
200% U
N
Maximum switch current
5 A @ 250 V AC / 30 V DC
Frequency range f
M
14 Hz - 70 Hz
0.2 A @ 125 V V DC
Measurement accuracy
Service life
10
5
switching cycles
Voltage
< 0.2%
Insulation
Voltage < 45 Hz & > 55 Hz
< 1%
Measuring circuit - auxiliary
voltage
4 kV
Frequency
0.01 Hz
Measuring circuit - relay con-
tacts
4 kV
Temperature dependency
Standards
Voltage
< 0.02% / °C
Safety
EN 61010
Frequency
No dependency
EMC interference immunity
EN 61000-6-2
Supply
EMC interference emission
EN 61000-6-3 + A1
Auxiliary voltage AC - U
H
85 V - 265 V @ 50 Hz
ÖVE (Austrian Federation for
Electrical Engineering)
ÖVE 8001-4-712
Auxiliary voltage DC - U
H
85 V - 370 V
VDE
VDE-AR-N 4105
Power consumption
Maximum 2 VA
General specifications
Display:
LCD 102 x 64 pixels with
the background lighting
Installation type:
Top hat rail installation
Memory:
100 events
Weight:
Approximately 250 g
Blockade response time:
a maximum of 50 ms
IP class/interface
IP 30 / RS232
Dimensions (WxHxD):
107 x 90 x 58 mm
Operating temperature:
-20 … +70 °C

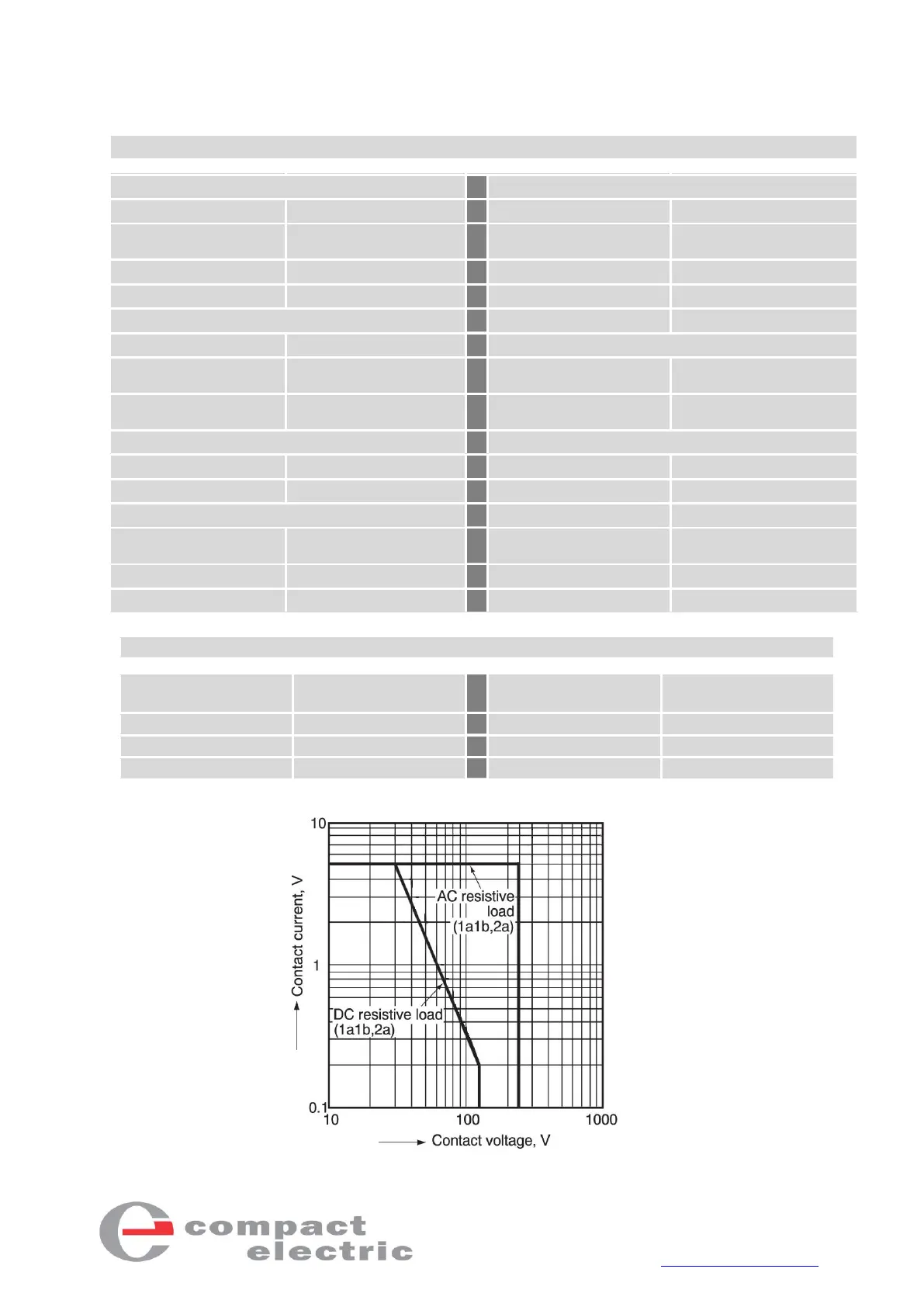

Figure 1 - load limit curve of output relays
