4.3. Parameterization
If the device has been successfully connected (see section 4.2 Connection), the parameters can be
configured in the communication program (see figure 8).
The parameters can be queried from the connected CDMRE-100 by pressing “Send/Receive"/"Receive
parameters".
The parameters can be transferred from the communication program to the CDMRE-100 by pressing
“Send/Receive"/"Send parameters".
If the code lock on the CDMRE-100 is activated, parameters can be sent only if the valid code is en-
tered in the "Current code" dialog window. Receiving parameters and event memory is also possible
without entering the code.
Logging
Under "File"/"Print - Parameterization”, a parameterization log can be created and saved as a PDF
document. If necessary, the “Facility" and "Cabinet" fields must be filled in manually.

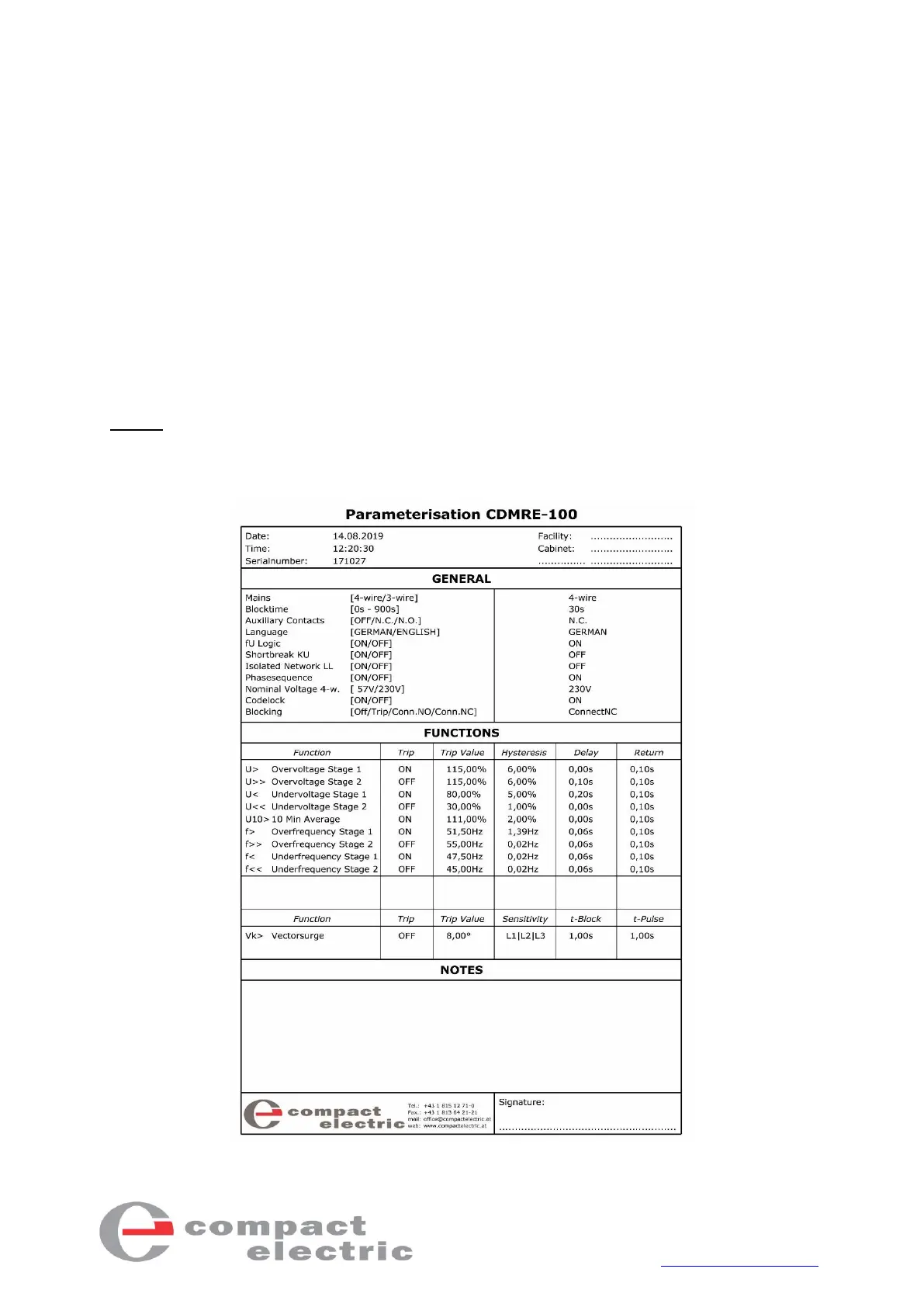

Figure 12 – Printout of an parameterization log
