4

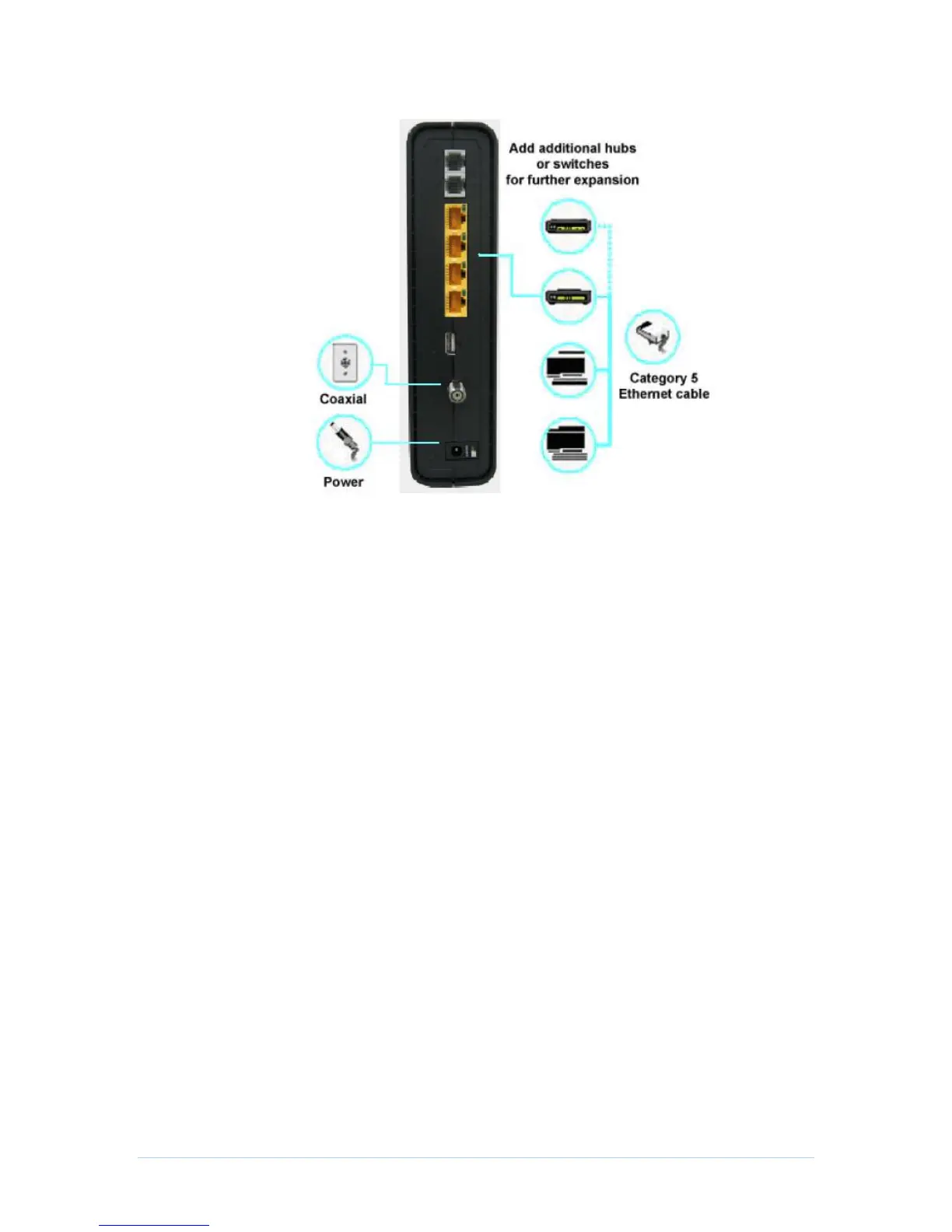

Sample Ethernet to Computer Connection (CH6643E model shown)
A wired Ethernet LAN with more than four computers requires one or more hubs,
switches, or routers. You can:
Connect a hub or switch to any Ethernet port on the CH6643E.
Use Ethernet hubs, switches, or routers to connect up to any combination of 253
computers and wireless clients to the CH6643E.
More detailed information on Ethernet cabling is beyond the scope of this document.
Front Panel
The CH6643E front panel contains indicator lights and the WPS button which is used to
configure Wi-Fi Protected Security (WPS) on compatible clients connected to the
CH6643E network.
