8. Release the ZIF (Zero Insertion Force) connector that connects the
keyboard cable
1
(Figure 5-9).
9. Disconnect the keyboard cable from the system board
2
.
10.
(Armada E500 only)
Release the ZIF connector that connects the
pointing stick cable
3
.
11.
(Armada E500 only)
Disconnect the pointing device cable from
the system board
4
.

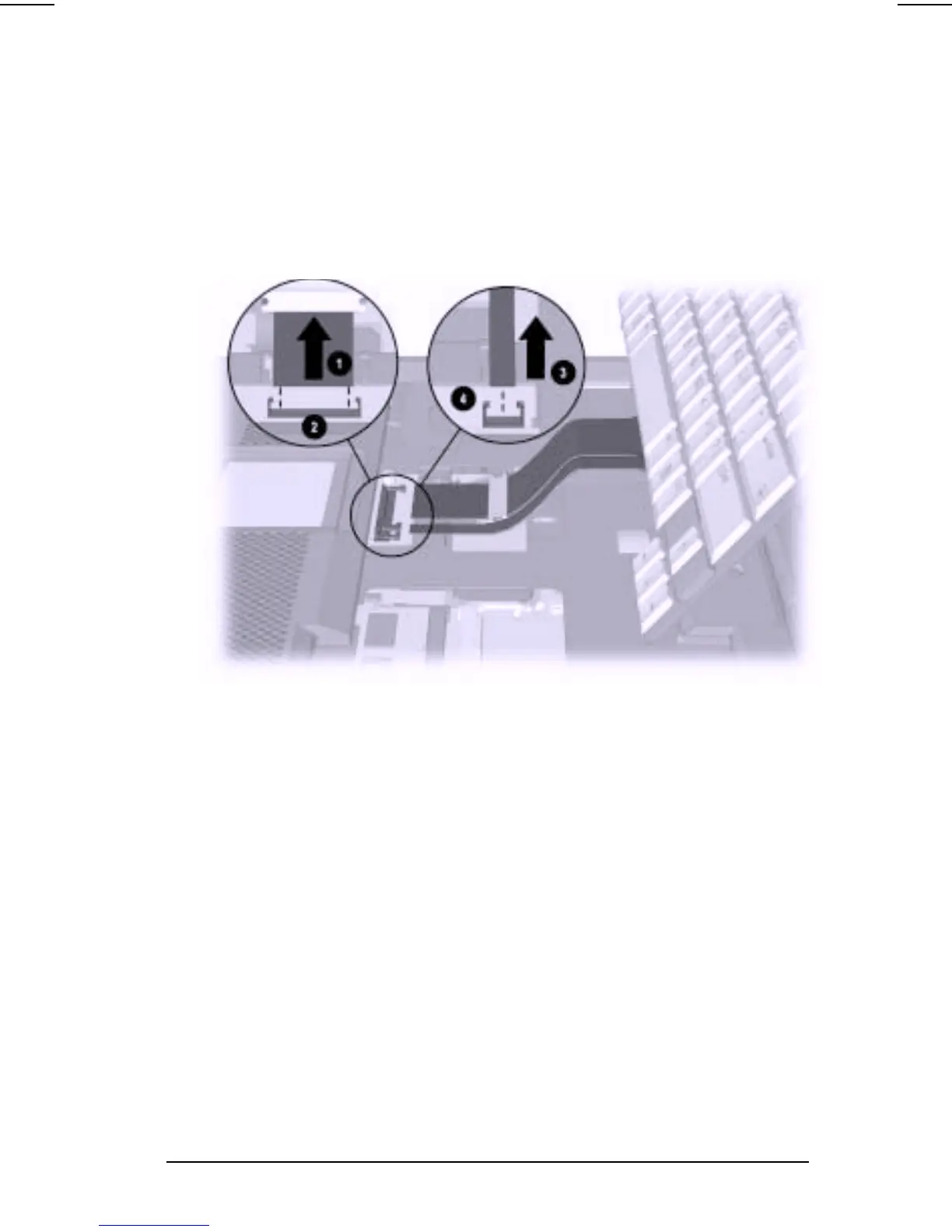

Figure 5-9. Releasing and Disconnecting the Keyboard Cables
12. Remove the keyboard.
Reverse the removal procedure described above to replace the keyboard.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
