5-10 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
4. Turn the computer right side up with the front facing forward.
5. Open the computer.
6. Slide the four latches
1
located along the top of the keyboard
forward.
7. Swing the back edge of the keyboard
2
up and forward
(Figure 5-8).

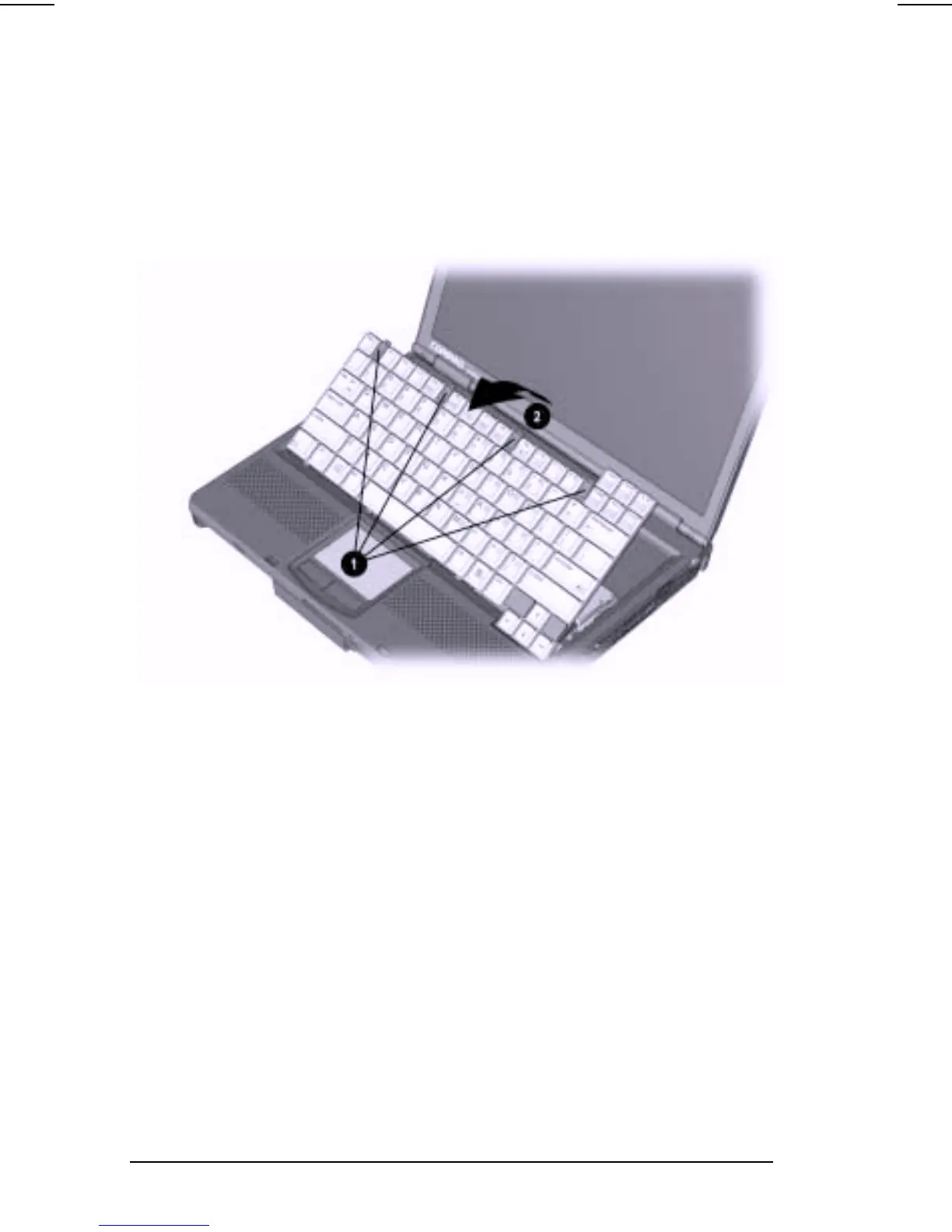

Figure 5-8. Releasing the Keyboard
