10. Remove the screws
1
that secure the display ground cables
(Figure 5-14).
11. Disconnect the display panel
2
, microphone
3
and display
inverter cables
4
from the system board.

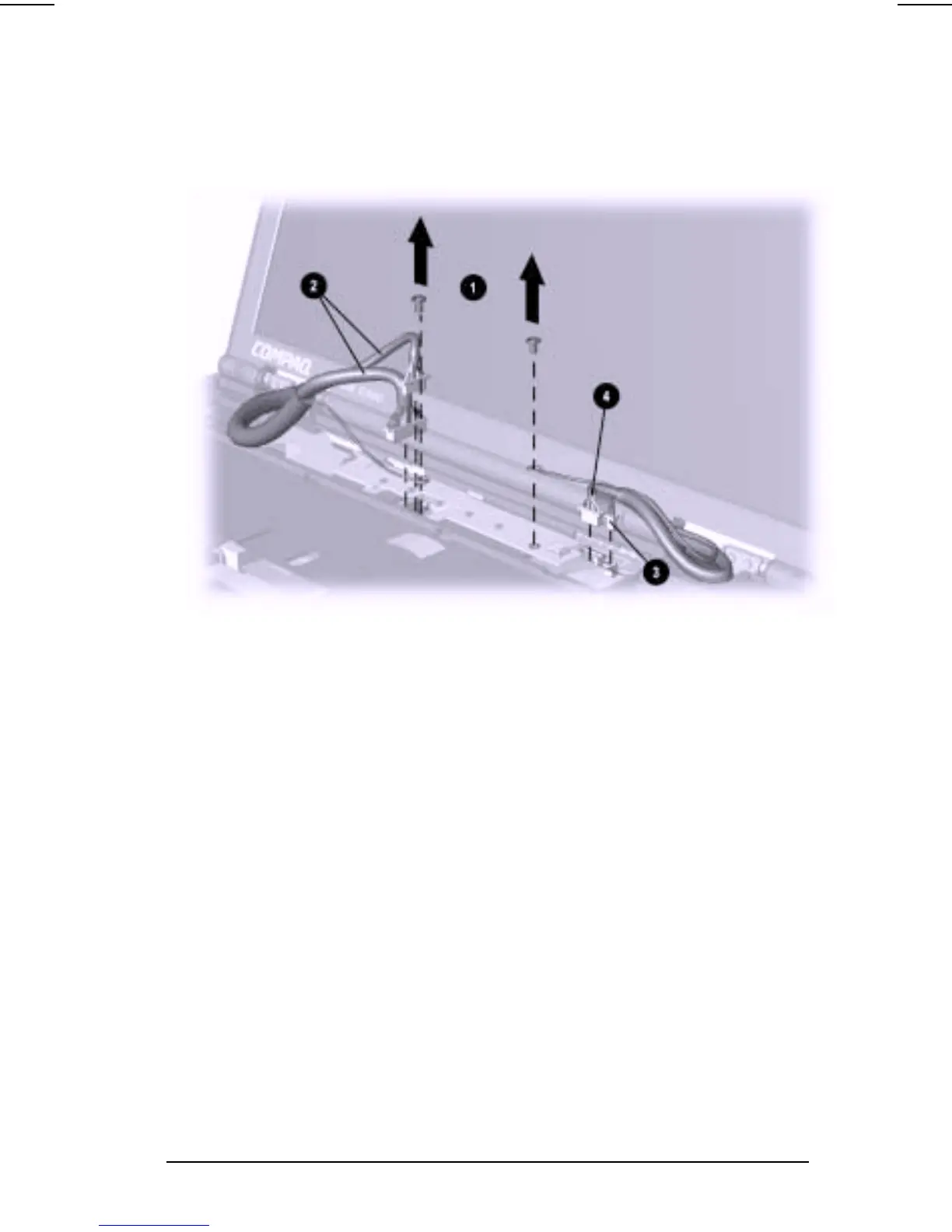

Figure 5-14. Disconnecting the Display Assembly Cables
