12. Position the computer so the rear panel faces forward.
13. Remove the two screws that secure the display assembly to the base
enclosure
1
(Figure 5-15).
NOTE: When these screws are removed, the display assembly is
unsupported. Make sure to provide support for the display assembly
when removing these screws.
14. Remove the display assembly
2
.

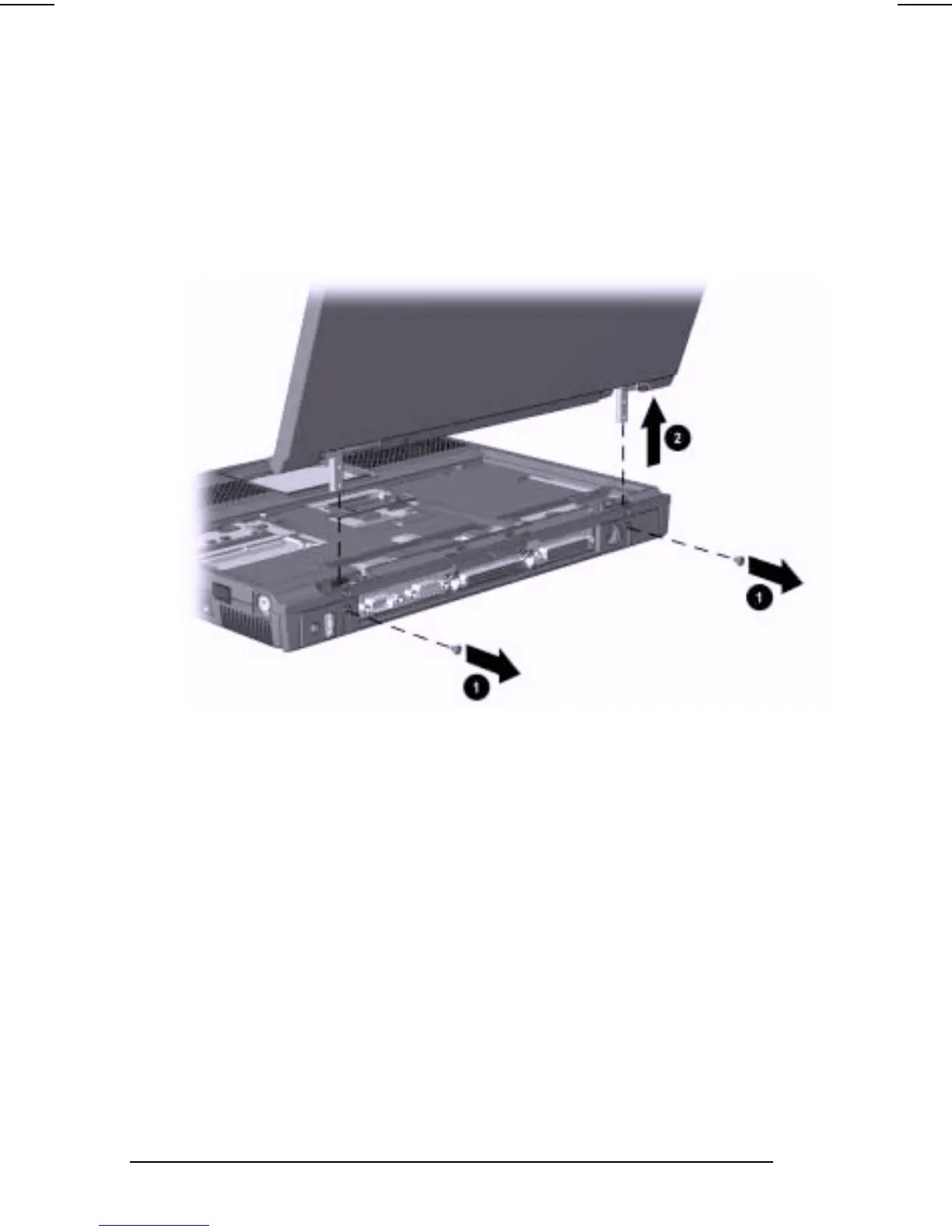

Figure 5-15. Removing the Display Assembly
Reverse the removal procedure described above to replace the
display assembly.
