Compaq Armada E500 Series Maintenance And Service Guide

5-24 Removal and Replacement Procedures
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: The Integrity Group Saved by: The Integrity Group Saved date: 10/26/00 12:36 PM
Part Number: 128679-006 File name: Ch05
NOTE: The diskette drive bezel is spared in the Miscellaneous Plastics
Kit.
Diskette Drive Bezel
Spare Part Number Information
Miscellaneous Plastics Kit,
includes:
159536-001
Switch cover (2)
Hinge cover
Real time clock (RTC) battery
Touch button cable
Front shield
Diskette drive bezel
Hard drive cover
Mini PCI slot cover
RJ-11 modem cover
RJ-45 LAN cover
Computer feet
Display screw covers
TV out connector cover
PC Card space saver
Diskette drive space saver
CD-ROM drive space saver
Infrared lens

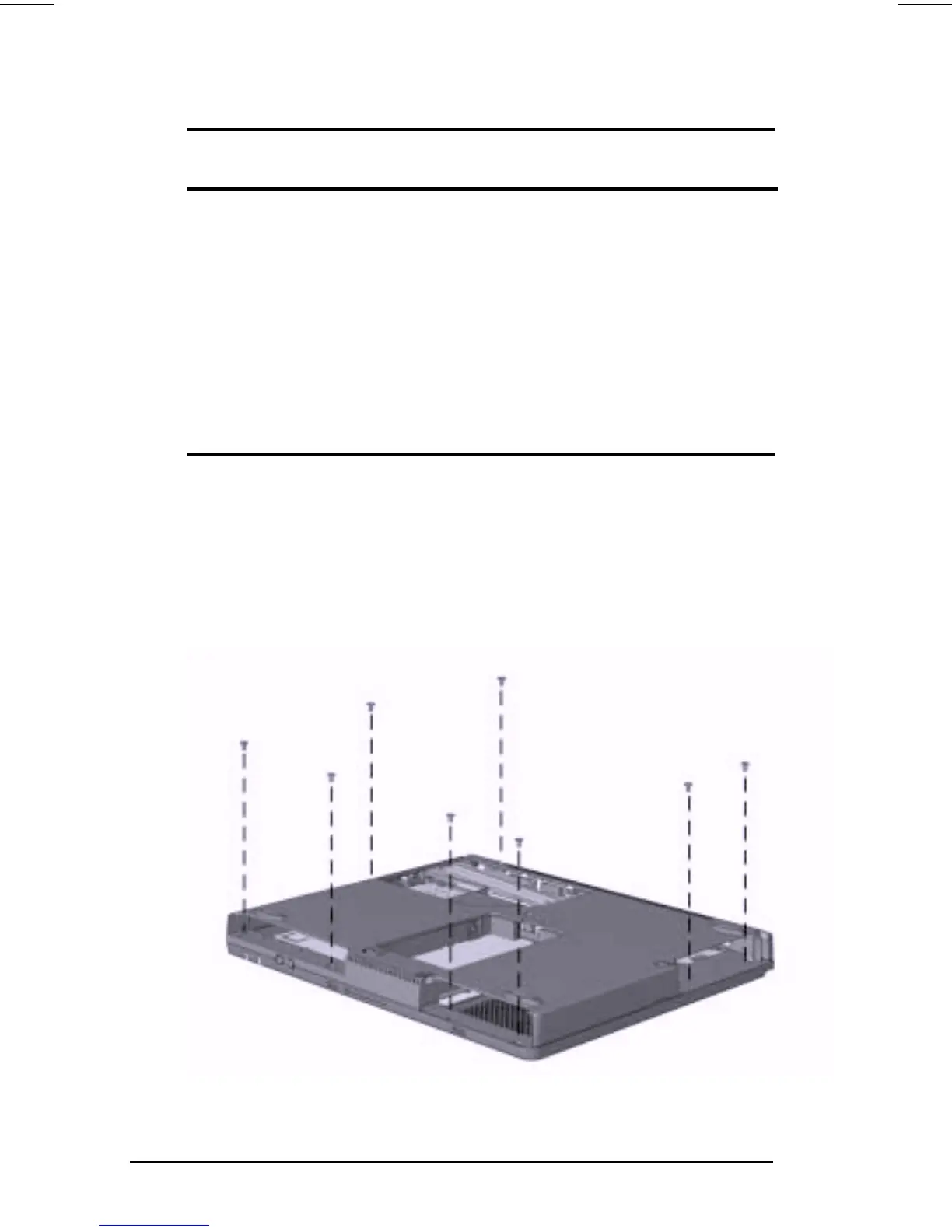

6. Remove the eight screws from the bottom of the computer that
secure the top cover to the base enclosure (Figure 5-19).
NOTE: There are only seven screws to be removed in this step on the
Armada V300 computer. The eighth screw was removed in Step 3
when removing the diskette drive bezel.
Figure 5-19. Removing the Top Cover Screws

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
