7. Turn the computer top side up with the rear panel facing forward.
8. Remove the screw
1
that secures the top cover to the base
enclosure (Figure 5-20).
9. Disconnect the left
2
and right
3
speaker cables from the
system board.

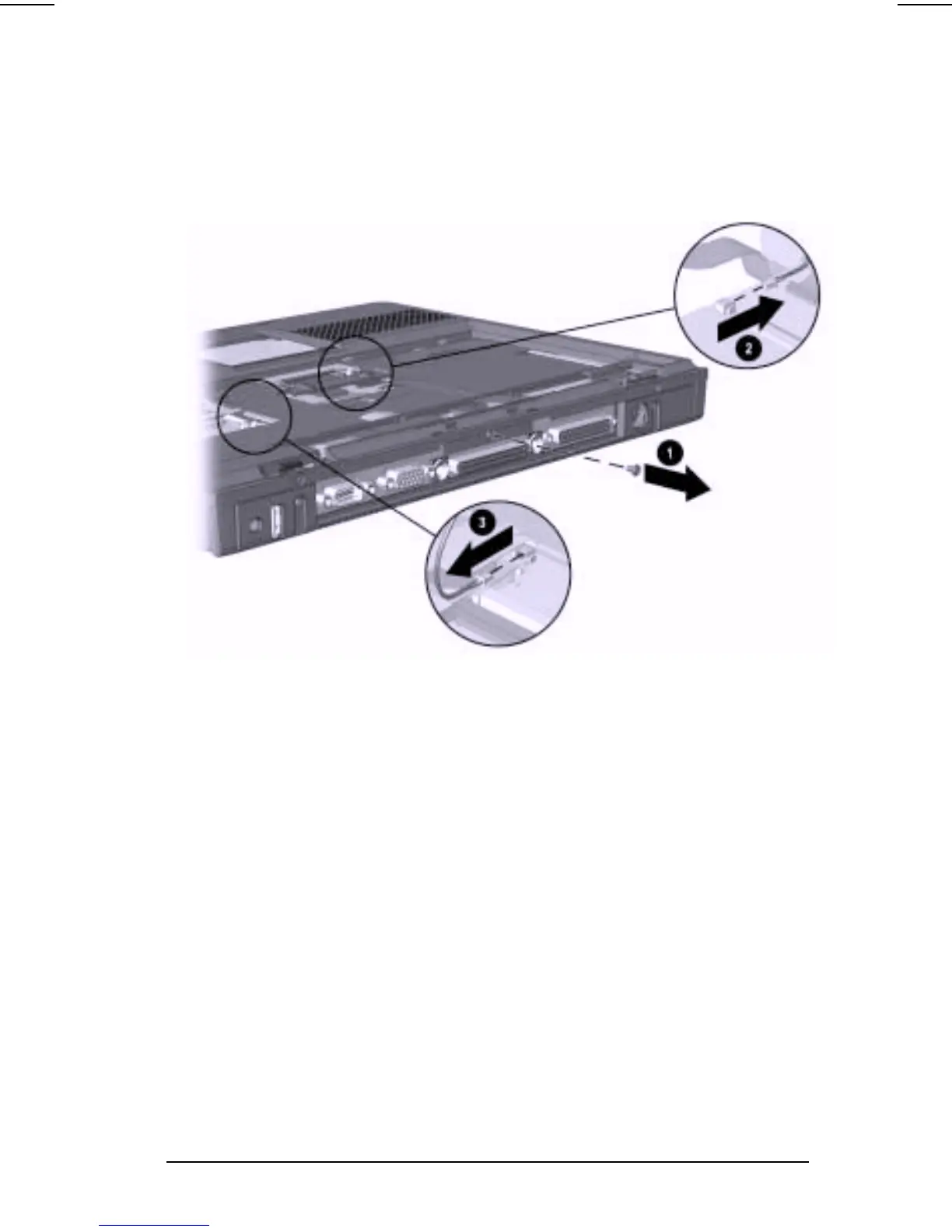

Figure 5-20. Removing the Top Cover Rear Panel Screw and Disconnecting
the Speaker Cables
