10. Lift the back edge of the top cover
1
and swing it forward
2
(Figure 5-21).

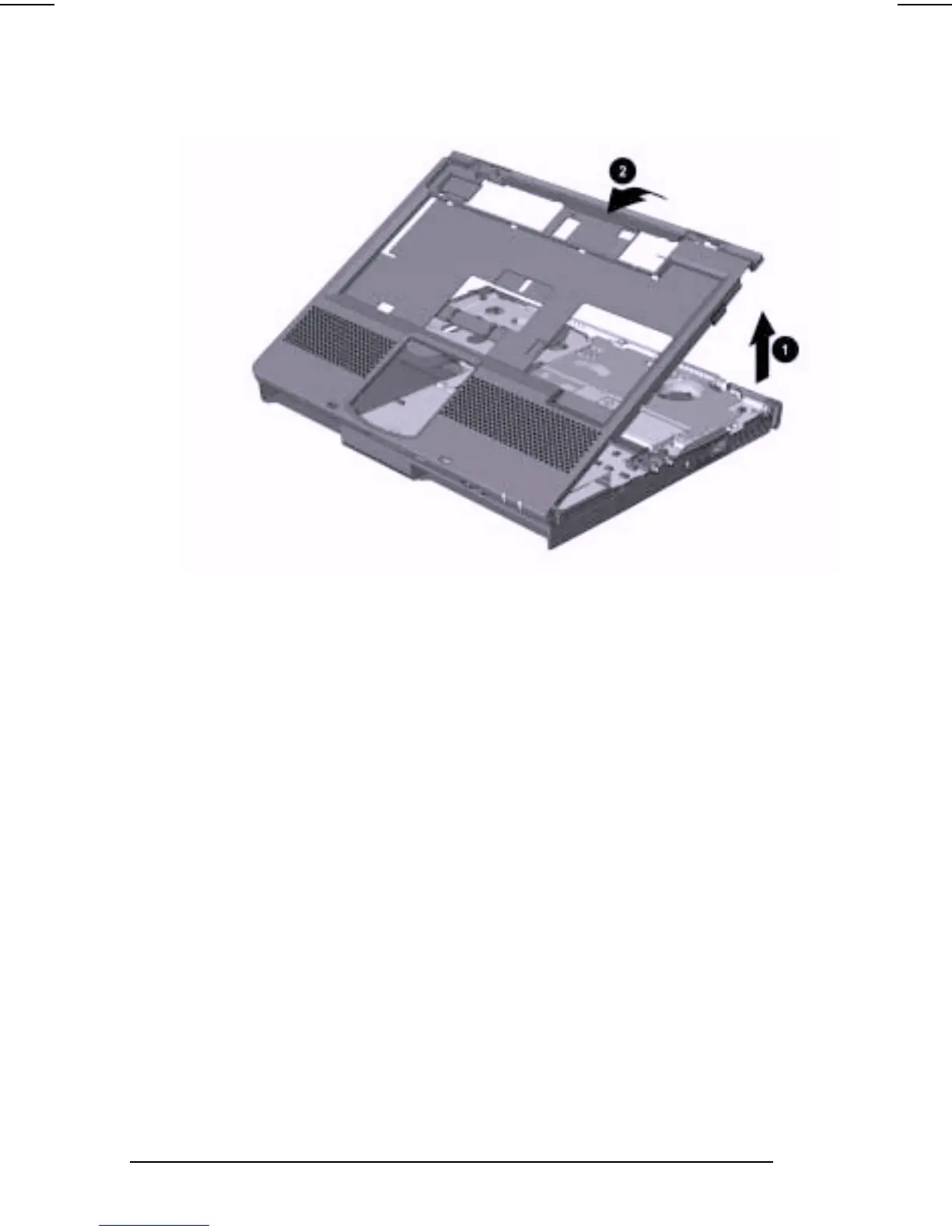

Figure 5-21. Removing the Top Cover
11. Remove the top cover.
Reverse the removal procedure described above to replace the top cover.
