4. Turn the computer top side up with the rear panel facing forward.
5. Remove the two bushing guides
1
that secure the system board to
the I/O bracket (Figure 5-25).
6. Remove the three screws
2
that secure the system board to the
base enclosure.
7. Lift the system board straight out of the base enclosure
3
.

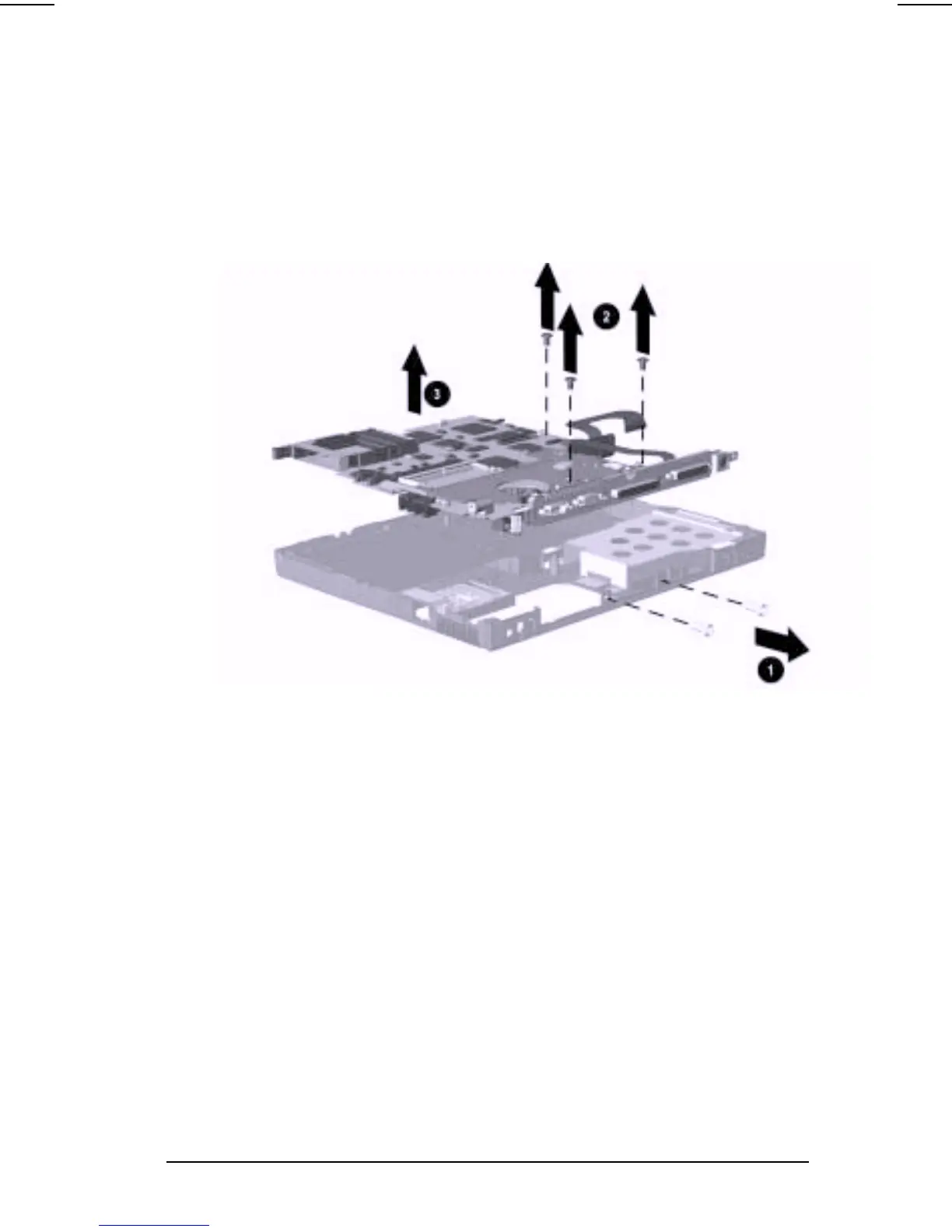

Figure 5-25. Removing the System Board
Reverse the removal procedure described above to replace the
system board.
